Chapter 4: Installation and Setup
Step
20
2049809-001 Rev B
Instructions

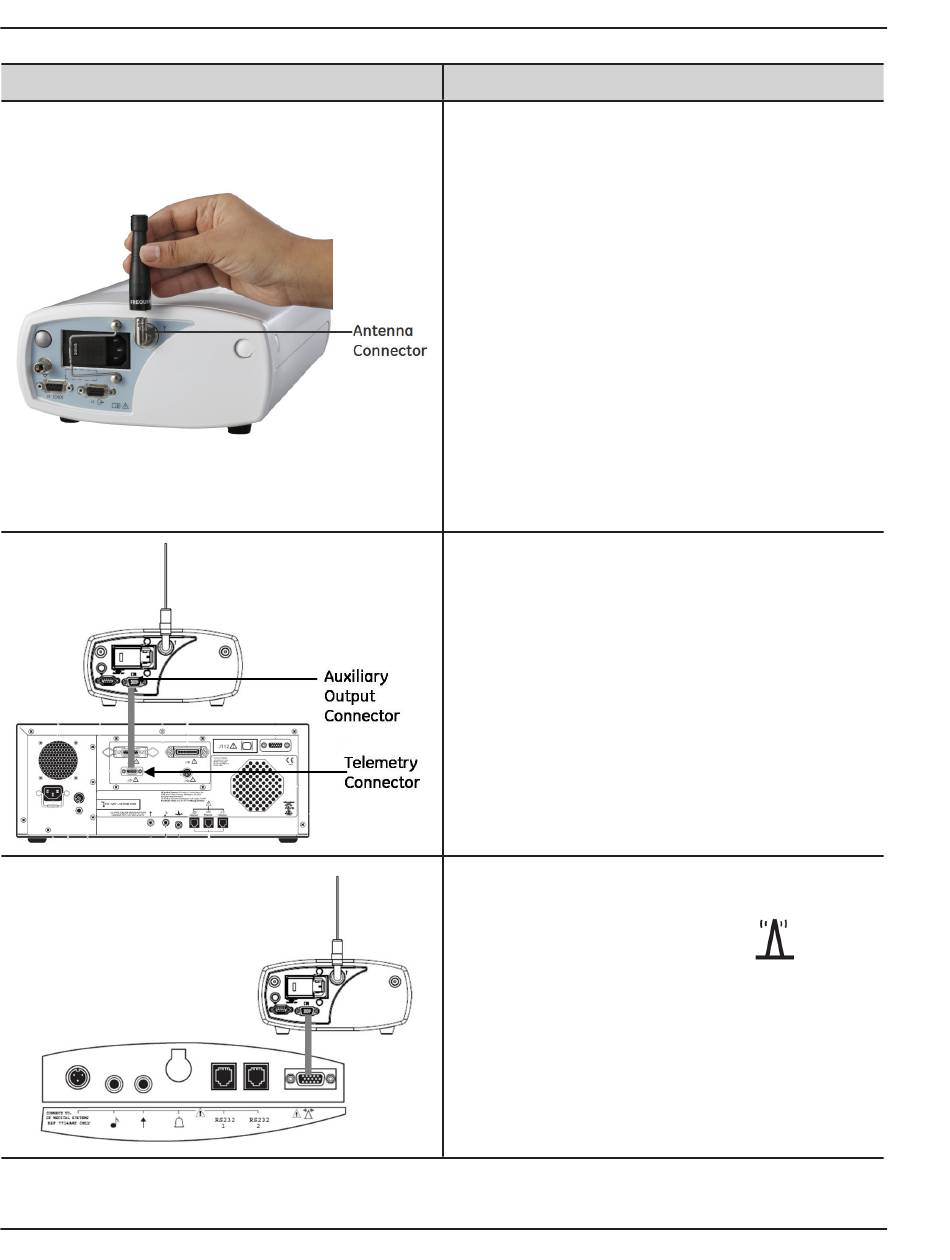

Instructions to attach the Receiver Antenna:
1. Insert the receiver antenna into the antenna
connector on the receiver rear panel as shown
in the figure. Rotate the attachment collar in a
clockwise direction until snug.
NOTE: A Remote Antenna Bracket, cat. no. (REF)
1441AAO, is available for attaching the antenna when
the receiver will be enclosed in a cart or cabinet. Refer
to the Installation Instructions, part no. (REF) 14153AA,
included with the bracket or contact your Biomedical
Engineering Department for assistance. To attach the
antenna to the BNC connector on the bracket, rotate
the antenna attachment collar in a clockwise direction
until snug.
Instructions to attach the Monitor Interconnect
Cable to a 120, 250 or 250cx Series Monitor:
1. Plug one end of the interconnection cable into the
Auxiliary Output connector on the receiver rear
panel.
2. Plug the other end into J101 telemetry connector
on the rear panel of the monitor.
Instructions to attach the Monitor Interconnect
Cable to a 170 Series Monitor:
1. Connect to the receptacle labeled
Note: Use 1563AAO interconnect cable.
