Chapter 4: Installation And Setup; Connecting The Receiver And Monitor - GE Mini Telemetry Operation And Maintenance Manual

This section contains step-by-step instructions for connecting and testing your Mini Telemetry System.
IMPORTANT
CHANNEL NUMBERS—Ensure that the receiver and transmitter are operating on the same frequency, the channel
numbers must be identical. The channel number label is located on the top of the receiver and on the back panel
of the transmitter.
If you have more than one Telemetry system, make sure that each transmitter/receiver pair operates on a unique
frequency.

Connecting the Receiver and Monitor

There is a single way of interconnection method between Telemetry receiver and fetal or maternal/fetal monitor.
Check your monitor model number prior to making any connections.
Models 126, 128, 129, 171, 172, 173, 174, 256, 259, 256cx, 259cx
IMPORTANT: 120 SERIES COMMUNICATIONS OPTION — A 120 series monitor requires a communications Board
in order to interface to a Mini Telemetry system. If your monitor does not have this option, an upgrade kit is
available as cat. no. (REF) 1559BAO. Contact your service representative for more information.
Perform the following steps to connect the receiver and monitor:
Step
© 2010 by General Electric Company. All rights reserved.

Chapter 4: Installation and Setup

Instructions

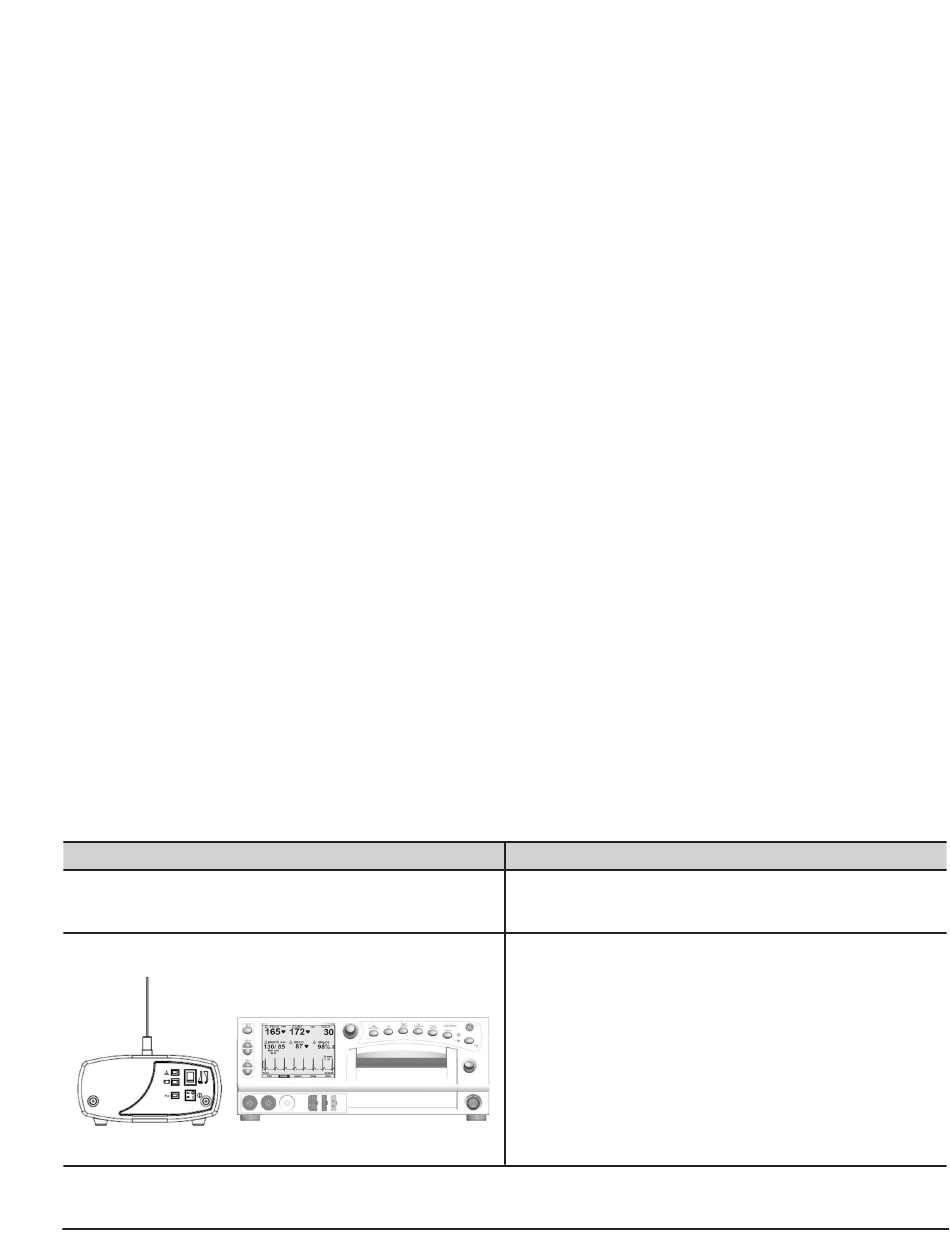

Instructions to position the Receiver:
1. Turn off both the monitor and the receiver.
2. Place the receiver on the cart, or on top of, or near,
the monitor.
Note: Model 250/250cx shown.
2049809-001 Rev B
