IEI Technology RPC-6010G User Manual

8.4" tft lcd 4u 14-slot rackmount lcd workstation
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RPC-6010G Rackmount LCD Workstation
Page i

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology RPC-6010G

Summary of Contents for IEI Technology RPC-6010G

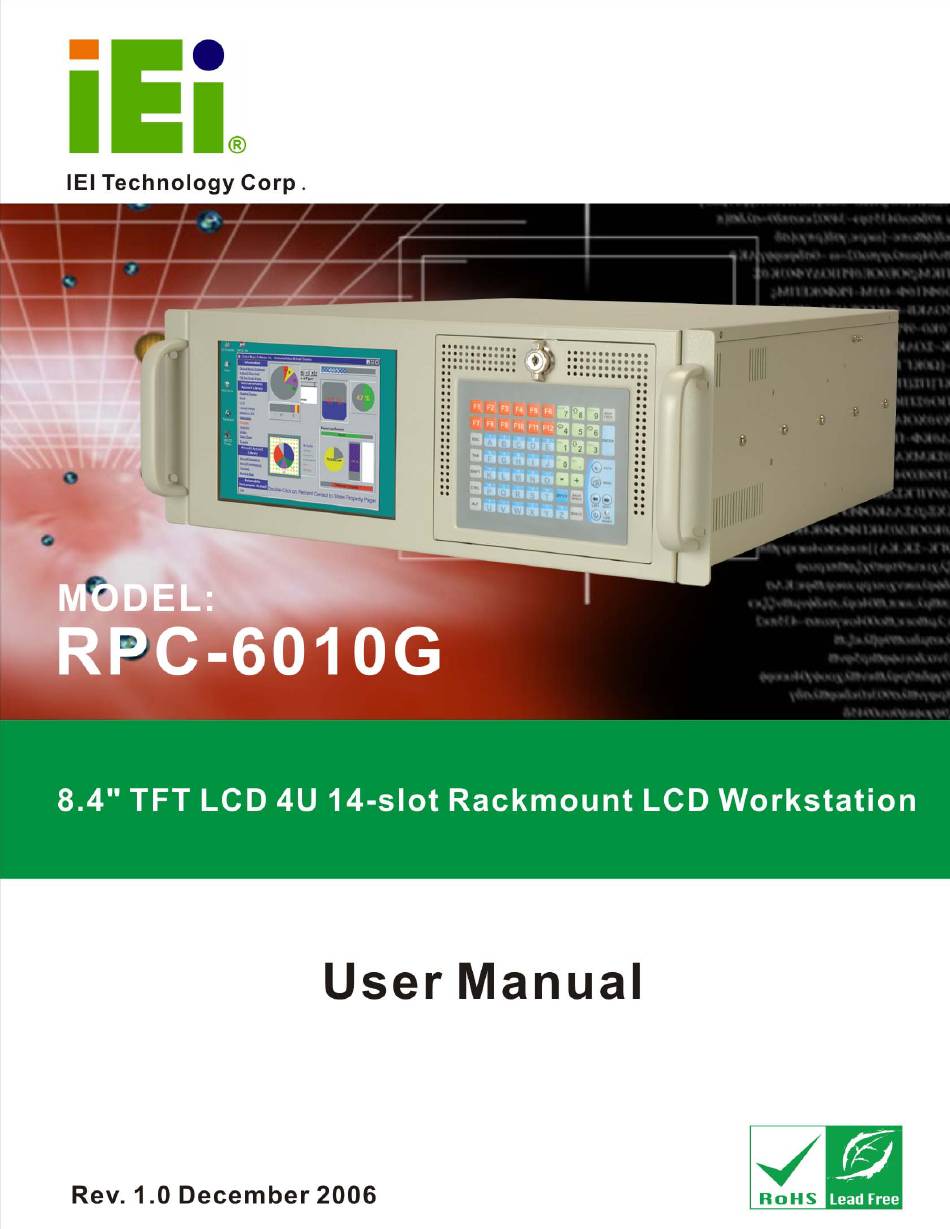

  • Page 1 RPC-6010G Rackmount LCD Workstation Page i...
  • Page 2 RPC-6010G Rackmount LCD Workstation Revision MODEL RPC6010G Rackmount Workstation Revision Number Description Date of Issue Initial release December 2006 Page ii...
  • Page 3 RPC-6010G Rackmount LCD Workstation Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 RPC-6010G rackmount workstation from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. The items listed below should all be included in the RPC-6010G Rackmount Workstation package. 1 x RPC-6010G Rackmount LCD Workstation...

  • Page 5: Table Of Contents

    2.1.3 Right Side Panel....................9 2.1.4 Left Side Panel ....................10 2.2 P .................... 10 HYSICAL IMENSIONS 2.2.1 General Physical Dimensions................10 2.2.2 RPC-6010G Physical Dimensions ..............11 DETAILED SPECIFICATIONS ................13 3.1 RPC-6010G S .................. 14 PECIFICATIONS 3.2 LCD S ....................15 PECIFICATIONS 3.3 ACE-832AP PSU S...
  • Page 6 RPC-6010G Rackmount LCD Workstation 4.2.3 Packing List ..................... 20 4.3 P ................22 INSTALLATION REPARATION 4.3.1 System Planning....................22 4.3.2 Tools ......................... 22 4.4 I ..................23 NSTALLATION ROCEDURES 4.4.1 Preinstalled Components ................. 23 4.4.2 User Installed Components................23 4.4.3 Installation Steps....................23 4.5 I...
  • Page 7 RPC-6010G Rackmount LCD Workstation 5.7.1 3.5” Disk Drive Replacement ................57 5.7.2 5.25” Disk Drive Replacement ................ 58 ON SCREEN DISPLAY (OSD) CONTROLS ............59 6.1 U OSD S ................60 TRUCTURE 6.1.1 OSD Buttons..................... 60 6.1.2 OSD Menu Structure ..................61 6.2 U...
  • Page 8 Figure 2-1: RPC-6010G Front Panel ................6 Figure 2-2: RPC-6010G Front Panel Door Open............7 Figure 2-3: RPC-6010G 14 Slot Rear Panel..............8 Figure 2-4: RPC-6010G ATX Motherboard Rear Panel ..........9 Figure 2-5: RPC-6010G Right Side Panel..............9 Figure 2-6: RPC-6010G Left Side Panel ..............10 Figure 2-7: RPC-6010G Physical Dimensions ............11...
  • Page 9 RPC-6010G Rackmount LCD Workstation Figure 4-21: Install Workstation into Rack ...............46 Figure 5-1: PSU External Retention Screws.............52 Figure 5-2: PSU Internal Retention Screws ..............52 Figure 5-3: PSU Mounting Bracket Retention Screws..........53 Figure 5-4: Cooling Fan Bracket External Screws...........55 Figure 5-5: Cooling Fan Bracket Bottom Panel Screws..........55 Figure 5-6: Fan Retention Screws ................56...
  • Page 10 RPC-6010G Rackmount LCD Workstation List of Tables Table 1-1: RPC-6010G Model Variations ..............3 Table 2-1: General Physical Dimensions ..............10 Table 3-1: RPC-6010G Specifications ...............14 Table 3-2: LCD Specifications..................15 Table 3-3: ACE-832AP PSU Specifications...............16 Table 4-1: Packing List ....................21 Table 6-1: OSD Menus ....................62...

  • Page 11: Introduction

    RPC-6010G Rackmount LCD Workstation Chapter Introduction Page 1...

  • Page 12: Rpc-6010G Overview

    PICMG 1.3 backplane and Redundant power supply support Advanced air-flow design 1.3 Model Variations The RPC-6010G comes in a variety of models. The models have special features as identified by their model name. The RPC-6010G model variations are listed in Table 1-1. Touch...

  • Page 13: Certifications

    ATX / microATX RPC-6010GWATXR/ACE-R4140AP/T-R ATX / microATX Table 1-1: RPC-6010G Model Variations 1.4 Certifications All RPC-6010G rackmount workstations comply with the following international standards: RoHS For a more detailed description of this standard, please refer to Appendix A. Page 3...
  • Page 14 RPC-6010G Rackmount LCD Workstation THIS PAGE IS INTENTIONALLY LEFT BLANK Page 4...

  • Page 15: Mechanical Overview

    RPC-6010G Rackmount LCD Workstation Chapter Mechanical Overview Page 5...

  • Page 16: External Overview

    RPC-6010G Rackmount LCD Workstation 2.1 External Overview The following sections describe the physical layout of the RPC-6010G rackmount workstation. 2.1.1 Front Panel The RPC-6010G rackmount workstation has the following front panel items: Plastic frame 8.4” Flat panel TFT LCD screen...

  • Page 17: Rear Panel

    Figure 2-2: RPC-6010G Front Panel Door Open (Drives Not Included) 2.1.2 Rear Panel The RPC-6010G rackmount workstation is available with either a 14-slot rear panel bracket or an ATX motherboard rear panel bracket. The following sections list the 14-slot rear panel bracket and ATX motherboard rear panel bracket items.

  • Page 18: Atx Motherboard Rear Panel

    RPC-6010G Rackmount LCD Workstation Figure 2-3: RPC-6010G 14 Slot Rear Panel 2.1.2.2 ATX Motherboard Rear Panel The RPC-6010G rackmount workstation is available with two types of rear panel brackets. The ATX motherboard rear panel has the following rear panel items: Internal PSU...

  • Page 19: Right Side Panel

    RPC-6010G Rackmount LCD Workstation Figure 2-4: RPC-6010G ATX Motherboard Rear Panel 2.1.3 Right Side Panel The RPC-6010G rackmount workstation has the following right side panel items: Cooling vents Figure 2-5: RPC-6010G Right Side Panel Page 9...

  • Page 20: Left Side Panel

    RPC-6010G Rackmount LCD Workstation 2.1.4 Left Side Panel The RPC-6010G rackmount workstation has the following left side panel items: Cooling vents Figure 2-6: RPC-6010G Left Side Panel 2.2 Physical Dimensions The following sections describe the physical dimensions of the RPC-6010G.

  • Page 21: Rpc-6010G Physical Dimensions

    RPC-6010G Rackmount LCD Workstation 2.2.2 RPC-6010G Physical Dimensions The physical dimensions of the RPC-6010G are shown in Figure 2-1. Figure 2-7: RPC-6010G Physical Dimensions (millimeters) Page 11...
  • Page 22 RPC-6010G Rackmount LCD Workstation THIS PAGE IS INTENTIONALLY LEFT BLANK Page 12...

  • Page 23: Detailed Specifications

    RPC-6010G Rackmount LCD Workstation Chapter Detailed Specifications Page 13...

  • Page 24: Rpc-6010G Specifications

    RPC-6010G Rackmount LCD Workstation 3.1 RPC-6010G Specifications Table 3-1 shows the RPC-6010G specifications. LCD Type 8.4" TFT Input Interface Max. Resolution 800 x 600 Backlight MTBF 20,000 Hrs Contrast 500:1 LCD Color 262K Brightness (cd/m2) Chassis Heavy-duty steel View Angle (H / V)

  • Page 25: Lcd Specifications

    RPC-6010G Rackmount LCD Workstation 3.2 LCD Specifications Table 3-2 lists the RPC-6010G LCD specifications. Size 8.4” MFR/Model AUO/G084SN03 Resolution SVGA (800 x 600) Active Area (mm) 170.4 x 127.8 Pixel Pitch (mm) 0.213 Number of Colors 262K View Angle (H/V)

  • Page 26: Ace-832Ap Psu Specifications

    -20 ~ 80 ° C (Storage) Dimensions 140 x 150 x 86mm Table 3-3: ACE-832AP PSU Specifications 3.4 Recommended IEI Backplanes, Motherboards and PSUs Refer to Appendix B for recommended IEI backplanes, motherboards and power supply units for the RPC-6010G rackmount workstation. Page 16...

  • Page 27: Installation

    RPC-6010G Rackmount LCD Workstation Chapter Installation Page 17...

  • Page 28: Installation Considerations

    RPC-6010G Rackmount LCD Workstation 4.1 Installation Considerations 4.1.1 Installation Precautions When installing the RPC-6010G, please follow the precautions listed below: Read the user manual: The user manual provides a complete description of the RPC-6010G rackmount workstation, installation instructions and configuration options.

  • Page 29: Unpacking

    4.2 Unpacking 4.2.1 Packaging When shipped, the RPC-6010G rackmount workstation is wrapped in a plastic bag. Two polystyrene ends are placed on either side of the RPC-6010G rackmount workstation. The workstation is then placed into a first (internal) cardboard box. This box is then sealed and placed into a second (external) cardboard box.

  • Page 30: Packing List

    AC-KIT-883HD audio module from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw. When the RPC-6010G rackmount workstation is received, make sure all the components listed below are present. Quantity...

  • Page 31: Table 4-1: Packing List

    RPC-6010G Rackmount LCD Workstation Quantity Description Image Handle bracket Mini-DIN 6 PS/2 connector cable Power cable Screw kit Short card clamp VGA cable 4-pin USB wire cable For Touch Panel (T-R) Models only RS-232 cable TouchKit Driver CD Touch pen...

  • Page 32: Pre-Installation Preparation

    4.3.2 Tools Before installing the RPC-6010G rackmount workstation, make sure the following tools are on hand: Philips (crosshead) screwdriver: All the retention screws on the system are Philips screws.

  • Page 33: Installation Procedures

    Power supply unit (PSU) Cooling fan module Drive bracket LCD screen 4.4.2 User Installed Components The following user supplied components need to be installed into the RPC-6010G rackmount workstation: Disk drives Backplane and CPU card, or motherboard PCI or ISA expansion cards (optional) 4.4.3 Installation Steps...

  • Page 34: Installing Components Into The Rpc-6010G

    This section gives a generic description of the component installation process for the RPC-6010G rackmount workstation. WARNING: Failure to follow the installation procedures outlined in this section may cause severe damage to the RPC-6010G rackmount workstation. Please follow the installation instructions carefully. Page 24...

  • Page 35: Remove The Top Cover

    RPC-6010G Rackmount LCD Workstation 4.5.1 Remove the Top Cover The top cover is secured to the RPC-6010G rackmount workstation with six screws (three each on the left and right panels). To remove the top cover, please follow the steps below.

  • Page 36: Remove The Cpu Card Clamp

    4.5.3 Remove the Dual CPU Card Clamp & Drive Bay Stabilizer Bracket The dual CPU card clamp and drive bay stabilizer bracket is secured to the RPC-6010G rackmount workstation with 10 retention screws. To remove the dual CPU card clamp and drive bay stabilizer bracket, please follow the steps below.

  • Page 37: Figure 4-4: Dual Cpu Card Clamp Retention Screws

    RPC-6010G Rackmount LCD Workstation Figure 4-4: Dual CPU Card Clamp and Drive Bay Stabilizer Bracket Right Side Retention Screws (Left Side Similar) Step 2: Remove the four retention screws that secure the dual CPU card clamp and drive bay stabilizer bracket to the fan bracket ( Figure 4-5).

  • Page 38: Remove The Drive Bracket

    Remove the CPU card clamp and drive bay bracket from the chassis.Step 0: 4.5.4 Remove the Drive Bracket The drive bracket is secured to the RPC-6010G rackmount workstation with four retention screws. To remove the drive bracket, please follow the steps below. Step 1: Remove four retention screws that secure the drive bracket to the chassis (Figure 4-4).

  • Page 39: Install Drives

    Remove the dual CPU card clamp and drive bay stabilizer bracket from the RPC-6010G rackmount workstation (see Section 4.5.3). Step 2: Remove the drive bracket from the RPC-6010G rackmount workstation (see Section 4.5.4). Step 3: Remove the appropriate drive slot blank plate (see Section 4.5.5).

  • Page 40: Disk Drive In A 5.25" Slot

    RPC-6010G Rackmount LCD Workstation Step 5: Insert the appropriate number of retention screws into each side of the 5.25” disk drive through the drive bracket (Figure 4-8).Step 0: Figure 4-8: 5.25” Disk Drive Retention Screws (Other Side Similar) 4.5.6.2 3.5” Disk Drive in a 5.25” Slot With the use of IEI’s 3.5”...

  • Page 41: Disk Drive

    Remove the dual CPU card clamp and drive bay stabilizer bracket from the RPC-6010G rackmount workstation (see Section 4.5.3). Step 4: Remove the drive bracket from the RPC-6010G rackmount workstation (see Section 4.5.4). Step 5: Remove the appropriate drive slot blank plate (see Section 4.5.5).

  • Page 42: Reinstall The Drive Bracket

    RPC-6010G Rackmount LCD Workstation Step 4: Slide a 3.5” disk drive into one of the 3.5” drive brackets. Make sure the connectors of the drive are facing the rear of the drive bracket. Step 5: Insert the appropriate number of retention screws into each side of the 3.5” disk drive through the 3.5”...

  • Page 43: Install The Backplane

    RPC-6010G Rackmount LCD Workstation 4.5.8 Install the Backplane To install a backplane, follow the instructions below. Step 1: Install the correct amount of copper pillars and plastic spacers into the base of the chassis (Figure 4-11). NOTE: The backplane shown in Figure 4-11 is an example for reference only. The location and number of copper pillars and plastic spacers depends on the backplane being used.

  • Page 44: Figure 4-12: Backplane Retention Screws

    RPC-6010G Rackmount LCD Workstation Step 2: Mount the backplane into the chassis. Make sure the backplane is positioned so that when the CPU card and PCI/ISA expansion cards are installed, both the CPU card and the PCI/ISA card I/O connectors face the I/O brackets on the rear panel.

  • Page 45: Install The Cpu Card

    RPC-6010G Rackmount LCD Workstation 4.5.9 Install the CPU Card CAUTION Before a CPU card is inserted into the backplane, make sure the CPU card has been correctly prepared and that all the CPU card jumper settings are configured correctly. For CPU card component installation procedures, please refer to the user manual that came with the CPU card.

  • Page 46: Figure 4-13: Slot Cover Retention Screw

    RPC-6010G Rackmount LCD Workstation Figure 4-13: Slot Cover Retention Screw Step 2: Remove the CPU card clamp. (See Section 4.5.2) Step 3: Remove the dual CPU card clamp and drive bay stabilizer bracket. (See Section 4.5.3) Step 4: Slide the CPU card into the reserved PCI/ISA socket on the backplane. Make sure the back edge of the CPU card slides into the plastic guide rails at the front end of the chassis.

  • Page 47: Install The Pci/Isa Expansion Card

    RPC-6010G Rackmount LCD Workstation Figure 4-14: Install the CPU Card Step 5: To secure the CPU card, reinsert the previously removed slot cover retention screw. Step 6: If a PCI/ISA expansion card is not being installed, reinstall the dual CPU card clamp and drive bay stabilizer bracket and the CPU card clamp.

  • Page 48: Installing Short Cards

    RPC-6010G Rackmount LCD Workstation Step 2: If necessary, remove the CPU card clamp. (See Section 4.5.2) Step 3: If necessary, remove the dual CPU card clamp and drive bay stabilizer bracket. (See Section 4.5.3) Step 4: Slide the PCI/ISA expansion card into the reserved PCI/ISA socket on the backplane.

  • Page 49: Connect The Cables

    RPC-6010G Rackmount LCD Workstation Figure 4-15: Installing a Short Card 4.5.12 Connect the Cables The following cables may have to be connected depending on the CPU card and the backplane installed in the system: PSU cables must be connected to the following components (if installed):...

  • Page 50: Close The Top Cover

    4.6 Mounting the RPC-6010G Rackmount Workstation The RPC-6010G workstation can be mounted to the posts of a standard 19” rack cabinet. Adequate rails, rack tray, or side brackets should also be available for supporting the weight of the workstation.

  • Page 51: Figure 4-16: Rack Handle Bracket Assembly And Installation

    RPC-6010G Rackmount LCD Workstation NOTE: This section gives a generic description of the rack mounting process for the RPC-6010G rackmount workstation. Alternate rack mounting systems may require different mounting procedures. Be sure to follow the manufacturer’s instructions when mounting the workstation.

  • Page 52: Figure 4-17: Remove Rack Slide

    RPC-6010G Rackmount LCD Workstation Step 2: Remove the rack slides from the rack slide brackets. (See Figure 4-17) Figure 4-17: Remove Rack Slide Step 3: The left and right side panels of the workstation each have five screw holes for rack slides.

  • Page 53: Figure 4-18: Workstation Slide Installation

    RPC-6010G Rackmount LCD Workstation Figure 4-18: Workstation Slide Installation (Other Side Similar) Step 4: Assemble the slide brackets per the manufacturer’s instructions. (See Figure 4-19) Page 43...

  • Page 54: Figure 4-19: Rack Slide Bracket Assembly

    RPC-6010G Rackmount LCD Workstation Figure 4-19: Rack Slide Bracket Assembly Step 5: Attach the slide brackets to the rack per the manufacturer’s instructions. (See Figure 4-20) Page 44...

  • Page 55: Figure 4-20: Rack Slide Bracket Installation

    RPC-6010G Rackmount LCD Workstation Figure 4-20: Rack Slide Bracket Installation Step 6: Insert the workstation with the attached slides into the rack slide brackets until the handle brackets are flush against the rack. (See Figure 4-21) Page 45...

  • Page 56: Figure 4-21: Install Workstation Into Rack

    RPC-6010G Rackmount LCD Workstation Figure 4-21: Install Workstation into Rack Step 7: If necessary, secure the workstation handle brackets to the rack with the fasteners that came with the workstation. Step 0: Page 46...

  • Page 57: Maintenance

    RPC-6010G Rackmount LCD Workstation Chapter Maintenance Page 47...

  • Page 58: Maintenance Overview

    5.1 Maintenance Overview Maintaining the RPC-6010G rackmount workstation is essential for the smooth operating of system applications. Maintaining the system might mean replacing failed components during the lifetime of the workstation. The following RPC-6010G components can be replaced. CPU card...

  • Page 59: Pci/Isa Expansion Card Replacement

    RPC-6010G Rackmount LCD Workstation Step 3: Open the top cover of the RPC-6010G rackmount workstation. (See Section 4.5.1) Step 4: Disconnect all internal and external peripheral device connections from the CPU card. Step 5: Remove the CPU card clamp. (See Section 4.5.2) Step 6: Remove the dual CPU card clamp and drive bay stabilizer bracket.

  • Page 60: Backplane Replacement

    Turn off and disconnect the workstation from all power sources. Step 2: Remove the workstation from the rack in which it is installed. Step 3: Open the top cover of the RPC-6010G rackmount workstation. (See Section 4.5.1) Step 4: Remove the CPU card clamp. (See Section 4.5.2) Step 5: Remove the dual CPU card clamp and drive bay stabilizer bracket.

  • Page 61: Psu Replacement

    Turn off and disconnect the workstation from all power sources. Step 2: Remove the workstation from the rack in which it is installed. Step 3: Open the top cover of the RPC-6010G rackmount workstation. (See Section 4.5.1) Step 4: Remove the CPU card clamp. (See Section 4.5.2) Step 5: Disconnect all the PSU cables from their devices.

  • Page 62: Figure 5-1: Psu External Retention Screws

    RPC-6010G Rackmount LCD Workstation Figure 5-1: PSU External Retention Screws Step 7: Remove the two internal retention screws that secure the PSU assembly to the right side panel of the workstation (Figure 5-2). Figure 5-2: PSU Internal Retention Screws Page 52...

  • Page 63: Figure 5-3: Psu Mounting Bracket Retention Screws

    RPC-6010G Rackmount LCD Workstation Step 8: Remove the two retention screws on the PSU mounting bracket (Figure 5-3). Figure 5-3: PSU Mounting Bracket Retention Screws Step 9: Reattach the PSU mounting bracket to the new PSU with the two previously removed retention screws.

  • Page 64: Cooling Fan Replacement

    Turn off and disconnect the workstation from all power sources. Step 2: Remove the workstation from the rack in which it is installed. Step 3: Open the top cover of the RPC-6010G rackmount workstation. (See Section 4.5.1) Step 4: Remove the CPU card clamp. (See Section 4.5.2) Step 5: Remove the dual CPU card clamp and drive bay stabilizer bracket.

  • Page 65: Figure 5-4: Cooling Fan Bracket External Screws

    RPC-6010G Rackmount LCD Workstation Figure 5-4: Cooling Fan Bracket External Screws Step 9: Remove the three retention screws that secure the cooling fan bracket to the bottom of the workstation. (See Figure 5-5) Figure 5-5: Cooling Fan Bracket Bottom Panel Screws...

  • Page 66: Figure 5-6: Fan Retention Screws

    RPC-6010G Rackmount LCD Workstation Step 10: Remove the fan from the bracket by removing the four retention screws. (See Figure 5-6) Figure 5-6: Fan Retention Screws Step 11: Place the new fan into the bracket. Align the retention screw holes in the new fan with those in the bracket and reinsert the four retention screws.

  • Page 67: Disk Drive Replacement

    Turn off and disconnect the workstation from all power sources. Step 2: Remove the workstation from the rack in which it is installed. Step 3: Open the top cover of the RPC-6010G rackmount workstation. (See Section 4.5.1) Step 4: Remove the CPU card clamp. (See Section 4.5.2) Step 5: Remove the dual CPU card clamp and drive bay stabilizer bracket.

  • Page 68: Disk Drive Replacement

    Turn off and disconnect the workstation from all power sources. Step 2: Remove the workstation from the rack in which it is installed. Step 3: Open the top cover of the RPC-6010G rackmount workstation. (See Section 4.5.1) Step 4: Remove the CPU card clamp. (See Section 4.5.2) Step 5: Remove the dual CPU card clamp and drive bay stabilizer bracket.

  • Page 69: On Screen Display (Osd) Controls

    RPC-6010G Rackmount LCD Workstation Chapter On Screen Display (OSD) Controls Page 59...

  • Page 70: User Mode Osd Structure

    RPC-6010G Rackmount LCD Workstation 6.1 User Mode OSD Structure 6.1.1 OSD Buttons There are several on-screen-display (OSD) control buttons on the front panel of the workstation. Figure 6-1 shows a typical arrangement of OSD controls. Figure 6-1: OSD Control Buttons...

  • Page 71: Osd Menu Structure

    RPC-6010G Rackmount LCD Workstation 6.1.2 OSD Menu Structure Table 6-1 shows the OSD menu structure. Level 0 Level 1 Value Main Display Features Menu Brightness 0 to 100 Contrast 0 to 100 Horizontal Size 0 to 100 Phase 0 to 100 H.

  • Page 72: Using The Osd

    RPC-6010G Rackmount LCD Workstation Level 0 Level 1 Value Signal Menu Digital Select Analog Backlight Menu Light Enable On or Off Light Contrast 0 to 100 Light Brightness 0 to 100 Light H Start 0 to 100 Light H Width...
  • Page 73 RPC-6010G Rackmount LCD Workstation Brightness: The brightness option adjusts the brightness of screen. This function adjusts the offset value of ADC. Setting this value too high or too low will affect the quality of image. Contrast: This function adjusts the gain value of ADC. Adjusting this value too high or too low will worsen the quality of image.

  • Page 74: Color

    RPC-6010G Rackmount LCD Workstation 6.2.2 Color Color options are shown in Figure 6-3. Figure 6-3: Color Options The Color menu fine-tunes the palette of color hues for the LCD. 9300: NTSC standard Kelvin 7500: NTSC standard Kelvin 6500: NTSC standard Kelvin...

  • Page 75: Language

    RPC-6010G Rackmount LCD Workstation 6.2.3 Language The Languages are shown in Figure 6-4. Figure 6-4: Language Menu This menu provides options for selecting ODS screen legends in a preferred language. Page 65...

  • Page 76: Osd Configurations

    RPC-6010G Rackmount LCD Workstation 6.2.4 OSD Configurations The OSD configurations are shown in Figure 6-5. Figure 6-5: OSD Configurations Menu OSD Configurations are described below. OSD Time Out: Determines how many seconds the OSD screen stays on screen before it disappears when OSD is left unattended.

  • Page 77: Signal

    RPC-6010G Rackmount LCD Workstation Aspect Ratio Adjusts the display ratio referring to the width of the screen and then to the height of the screen. 6.2.5 Signal The Signal menu in Figure 6-6 enables manual selection of the type of graphic source input, i.e., analog (15-pin VGA) or digital (DVI-D).

  • Page 78: Backlight

    RPC-6010G Rackmount LCD Workstation 6.2.6 Backlight The Backlight menu in Figure 6-7 enables users to configure the LCD backlight. Figure 6-7: Backlight Menu Backlight Menu options are described below. Light Enabled: Turns backlight on or off. Light Contrast: Adjusts the backlight contrast.

  • Page 79: Software Driver

    RPC-6010G Rackmount LCD Workstation Chapter Software Driver Page 69...

  • Page 80: Touch Screen Driver

    RPC-6010G Rackmount LCD Workstation NOTE: The following information is provided for workstations with touch screens. 7.1 Touch Screen Driver The touch screen controller enables analog resistive touch screens for four-wire, five-wire & eight-wire models. The controller directly communicates with the PC system through the touch screen communications interface.

  • Page 81: Driver Installation

    7.2 Driver Installation To install the touch screen software driver, please follow the steps below. Step 1: Insert the TouchKit driver CD that came with the RPC-6010G rackmount workstation into the CD drive. Step 2: Once the CD drive is installed, the screen in Figure 7-1 appears.

  • Page 82: Figure 7-2: Install Shield Wizard Preparation

    RPC-6010G Rackmount LCD Workstation Step 4: Once the OS system is selected, the touch kit setup will prepare the install shield wizard (Figure 7-2). Figure 7-2: Install Shield Wizard Preparation Step 5: After the Install Shield Wizard is ready, a welcome screen appears (Figure 7-3).

  • Page 83: Figure 7-4: Install Ps/2 Interface Driver

    RPC-6010G Rackmount LCD Workstation Step 7: An Install PS/2 interface driver screen appears (Figure 7-4). It is not necessary to install the PS/2 interface driver. To continue click N Figure 7-4: Install PS/2 Interface Driver Step 8: Four point calibration options are then selected (Figure 7-5). Four point calibrations can be done every time a user boots up, during the next time the system boots or never.

  • Page 84: Figure 7-5: Install Ps/2 Interface Driver

    RPC-6010G Rackmount LCD Workstation Figure 7-5: Install PS/2 Interface Driver Step 9: The user is then prompted to ensure the touch monitor or the USB for the touch controller is plugged into the system (Figure 7-6). Once the touch controller is plugged into the system, click “OK.”...

  • Page 85: Figure 7-7: Controller Installation Directory

    RPC-6010G Rackmount LCD Workstation Step 10: The user is then prompted to select multi-monitor system support (Figure 6-7). Make the appropriate selection and click N to continue. Figure 7-7: Controller Installation Directory Page 75...

  • Page 86: Figure 7-8: Controller Installation Directory

    RPC-6010G Rackmount LCD Workstation Step 11: The user is then prompted to select a file directory in which the touch kit controller is installed (Figure 7-8). The default directory is “C:\Program Files\TouchKit.” If a different folder must be used, select browse and then select the folder.

  • Page 87: Figure 7-9: Program Icon Directory

    RPC-6010G Rackmount LCD Workstation Step 12: The user is then prompted to select a file directory in which the program icons are saved (Figure 7-9). The default folder is “TouchKit.” If a different folder must be used, select a folder from the list shown. Once the folder is selected, click to continue.

  • Page 88: Figure 7-10: Installing

    RPC-6010G Rackmount LCD Workstation Step 13: The program then starts installing (Figure 7-10). Figure 7-10: Installing Page 78...

  • Page 89: Touch Screen Driver Configuration

    RPC-6010G Rackmount LCD Workstation Step 14: Once the program is finished installing, the user is prompted to restart the computer now or to restart the computer later (Figure 7-11). Select when the computer should be restarted and click “F ” to complete the driver...
  • Page 90 RPC-6010G Rackmount LCD Workstation THIS PAGE IS INTENTIONALLY LEFT BLANK Page 80...

  • Page 91: Acertifications

    RPC-6010G Rackmount LCD Workstation Appendix Certifications Page 81...

  • Page 92: Rohs Compliant

    RPC-6010G Rackmount LCD Workstation A.1 RoHS Compliant All RPC-6010G rackmount workstations comply with the Restriction of Hazardous Materials (RoHS) Directive. This means that all components used to build the industrial workstations and the workstation itself are RoHS compliant. The RoHS Directive bans the placing on the EU market of new electrical and electronic...

  • Page 93: Brecommended Iei Backplanes, Motherboards And Psus

    RPC-6010G Rackmount LCD Workstation Appendix Recommended IEI Backplanes, Motherboards and PSUs Page 83...
  • Page 94 RPC-6010G Rackmount LCD Workstation The following IEI backplanes, motherboards and power supply units are recommended for the RPC-6010G rackmount workstation. For more information about these backplanes please contact an IEI sales representative or visit the IEI website (www.ieiworld.com). B.1 Recommended IEI Backplanes and Motherboards The following table lists the recommended IEI backplanes and motherboards for the RPC-6010G rackmount workstation.

  • Page 95: Recommended Iei Power Supply Units

    RPC-6010G Rackmount LCD Workstation B.2 Recommended IEI Power Supply Units The following table lists the recommended IEI power supply units for the RPC-6010G rackmount workstation. Type Model No. Watt ACE-935AL-RS 300W ACE-940AP-RS 390W ACE-832AP-RS 250W ACE-841AP-RS 480W ACE-850AP-RS 500W Redundant ATX ACE-R4130AP-RS 300W...
