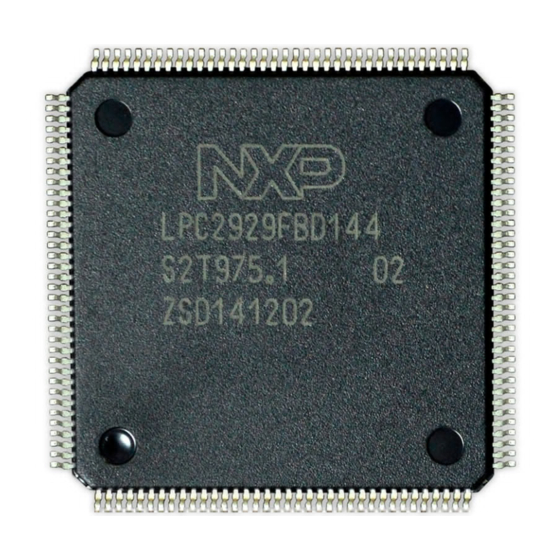

UM10316

LPC29xx User manual

Rev. 3 — 19 October 2010

Document information

Info

Content

Keywords

LPC2917/01; LPC2919/01; LPC2926; LPC2927; LPC2929; LPC2921;

LPC2923; LPC2925; LPC2930; LPC2939 User Manual, ARM9, CAN, LIN,

USB

Abstract

This document extends the LPC29xx data sheets with additional details to

support both hardware and software development. It focuses on functional

description and typical application use.

User manual

Table of Contents
