EVALUATION BOARD SOFTWARE

SOFTWARE INSTALLATION

Download the ACE software from the ACE software page or
the AD7606C-18 product page. Both the ACE software and the
SDP-H1 board drivers must be installed.
Warning
The ACE software and SDP-H1 drivers must be installed before
connecting the EVAL-AD7606C18FMCZ and the SDP-H1 to
the USB port of the PC to ensure that the evaluation system is
properly recognized when it is connected to the PC.
Installing the ACE Software
To install the ACE software, take the following steps:
1. Download the ACE software to a Windows® based PC.
2. Double click the ACEInstall.exe file to begin the installation.
By default, the software is saved to the following location:
C:\Program Files (x86)\Analog Devices\ACE.
3. A dialog box opens asking for permission to allow the
program to make changes to the PC. Click Yes to begin the
installation process.

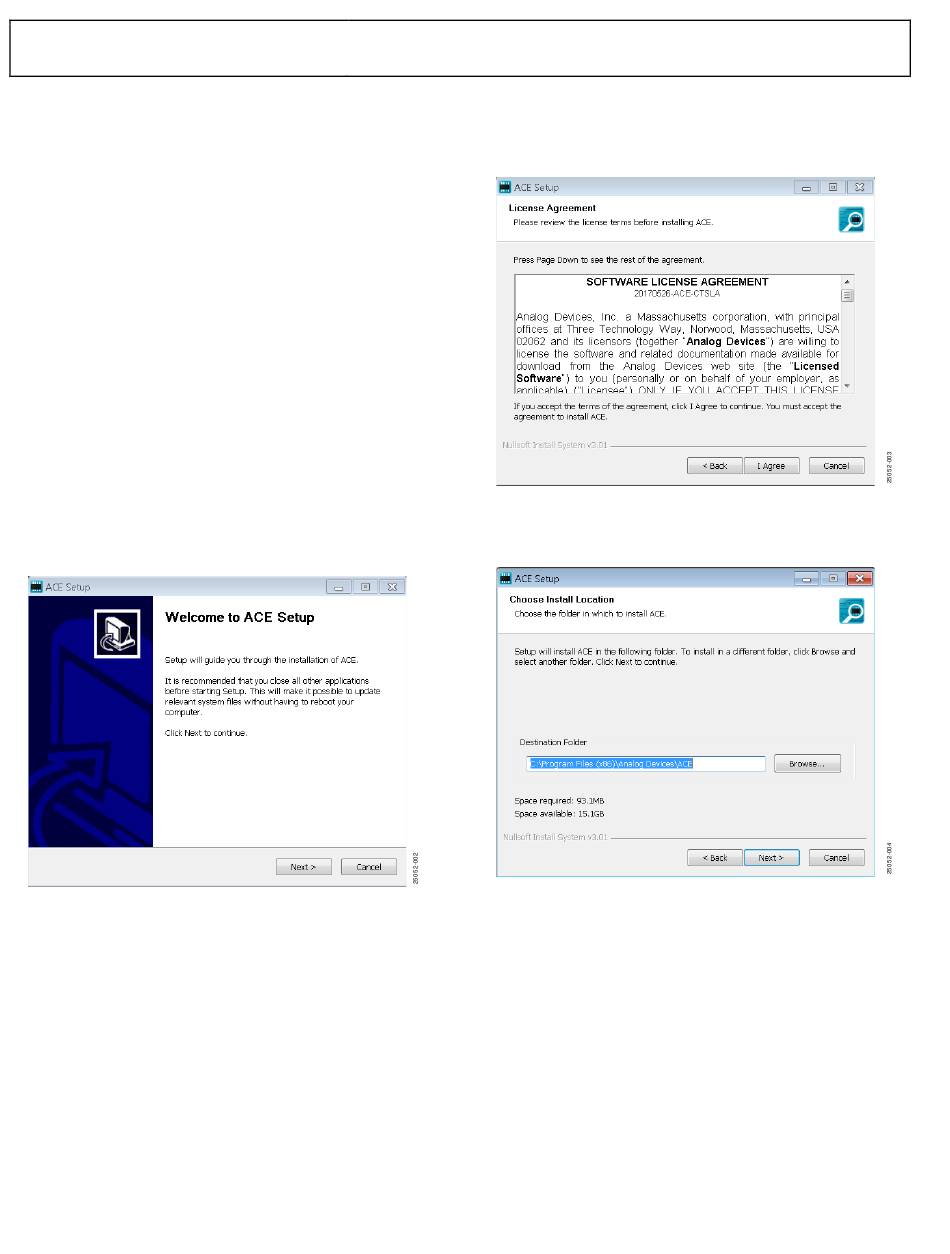

4. In the ACE Setup window, click Next > to continue the
installation (see Figure 2).
Figure 2. ACE Software Installation Confirmation
EVAL-AD7606C18FMCZ
5. Read the software license agreement and click I Agree
(see Figure 3).
6. Click Browse... to choose the installation location and
then click Next > (see Figure 4).
Rev. 0 | Page 6 of 15
Evaluation Board User Guide
Figure 3. License Agreement
Figure 4. Choose Installation Location
