EVAL-AD7606C18FMCZ

DESCRIPTION OF MEMORY MAP VIEW WINDOW

Click Proceed to Memory Map in the AD7606C-18 chip view
window (see Figure 12) to open the AD7606C-18 Memory
Map view window shown in Figure 14. The AD7606C-18
Memory Map view window shows all registers of the
AD7606C-18.
The registers of the AD7606C-18 are populated with default
values when powered up. To implement the values changed in
all of the registers, click Apply Changes to write to the registers.
In some cases, the values of every register have been changed,
but the user wants to implement changes on a selected register
Evaluation Board User Guide

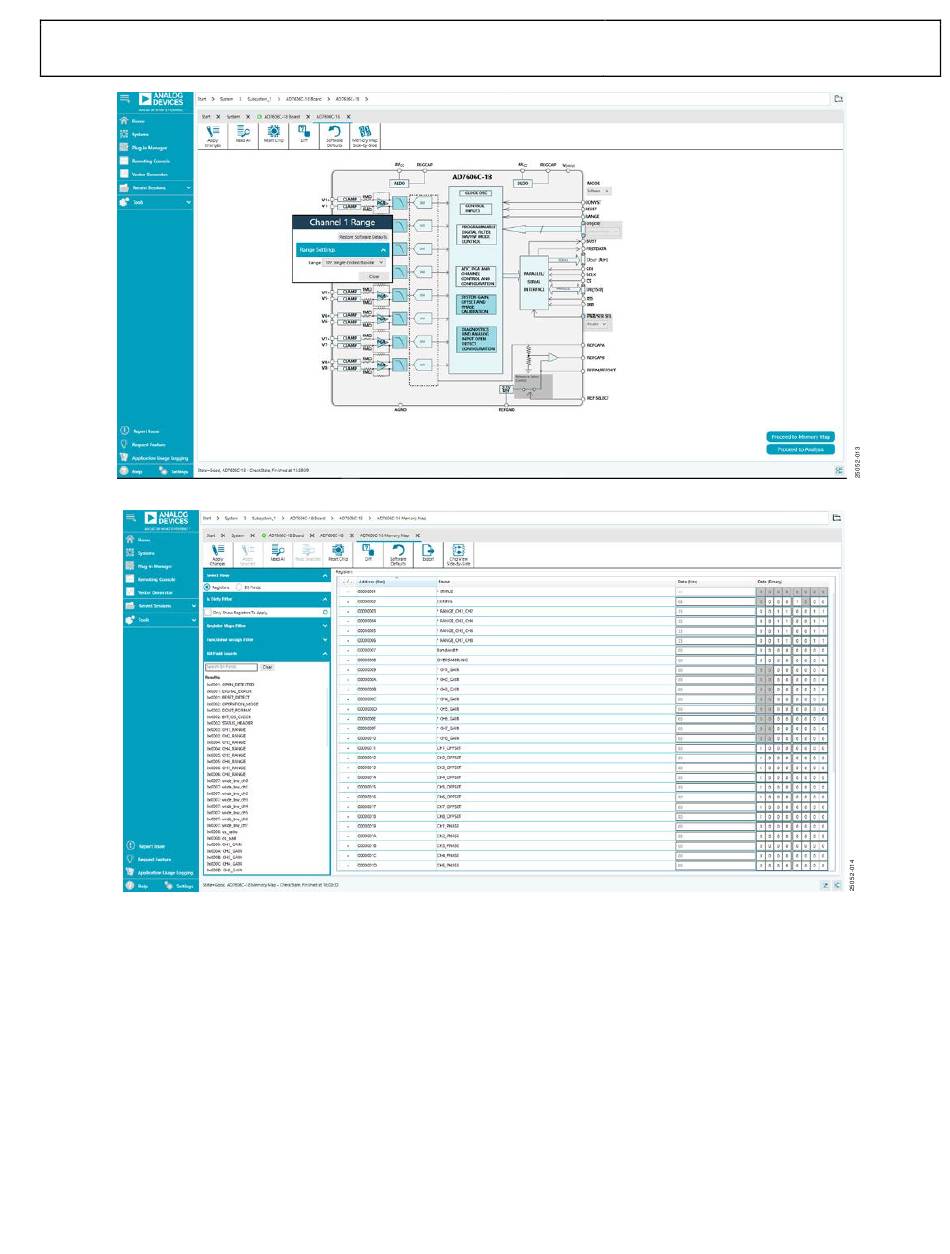

Figure 13. Configurable Pop-Up Window
Figure 14. AD7606C-18 Memory Map View Window
Rev. 0 | Page 11 of 15
only. Click Apply Selected to write the new value on the
selected register to the AD7606C-18.
Click Read All to read the values of all the registers from the
chip.
Click Read Selected to read the selected register from the chip.
Click Reset Chip to prompt the software to reset the AD7606C-18.
Click Diff to check for differences in register values between
the software and the chip.
To revert all the register values back to their defaults, click
Software Defaults, and then click Apply Changes to write to
the AD7606C-18.
UG-1870
