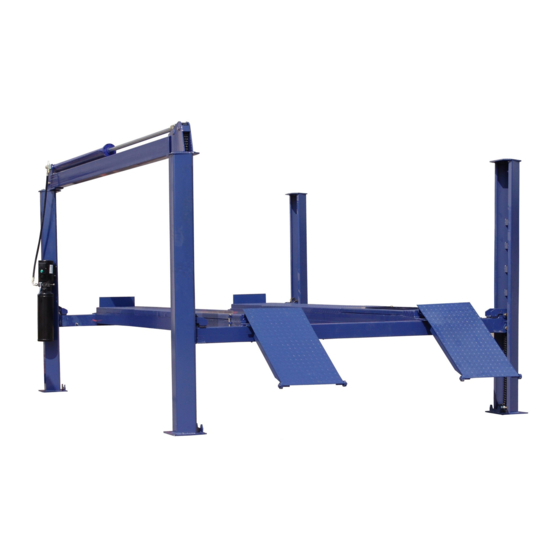

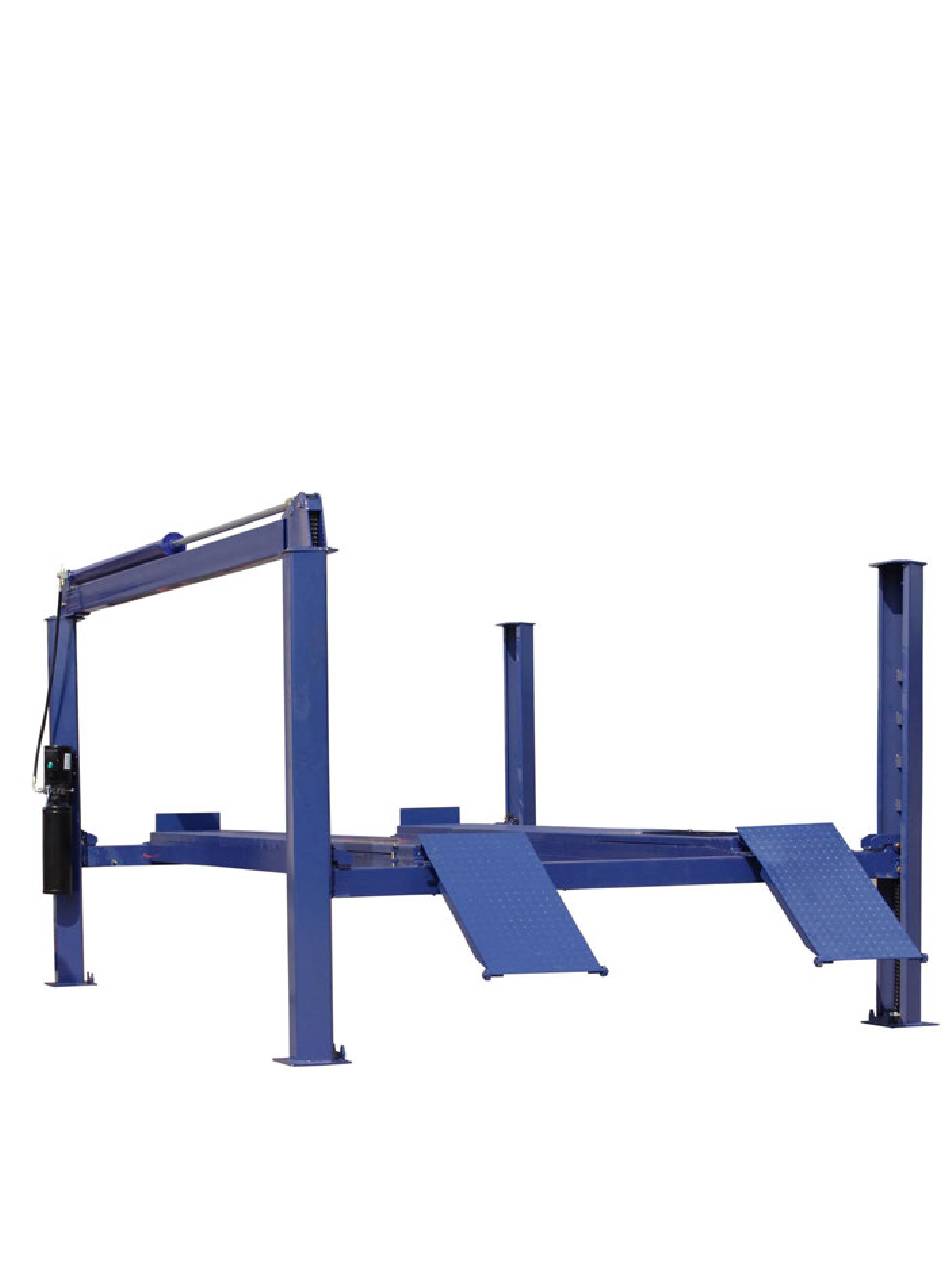

- Page 1 FP14K & FP14KA 14,000 lb Capacity Four Post Lifts Installation and Operation Manual REV A-090413...
- Page 3 14,000 IFTS These heavy duty chain driven lifts are designed for many years of trouble free service. Our four post lifts are constructed with heavy gauge “C” channel. Features: 14,000 lb. lifting capacity Chain driven FP 14 K 14,000 lb. capacity Single point pneumatic Four post lift safety release mechanism...
-
Page 4: Limited One-Year Warranty
There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose. -
Page 5: Specifications
Specifications Capacity: 14,000 lbs Motor power: 1.5 Kw Power supply: 220V / 60 Htz / 1 Ph PIC.1 PIC.2 REV A-090413... - Page 6 Step1 1. Select a right place for the new lift installation. PIC.3 2. This lift must be installed on a solid level concrete floor with no more than 0.15 degree of slope. Or, the four points under the posts should be in level within 10mm. 3.
- Page 7 Step2 1. Locate the main pump column A and main column B on their positions. 2. Anchor the main pump column A. If shimming is required, insert the shims as necessary to plumb the column. 3. Locate the other two columns C and D on their positions. 4.
- Page 8 1. Chain LH1246 Main column A Main column B 2. Chain Lh1246 3. Chain LH1234 4. Main Cylinder Locking Column Air cylinder Unlocking Cross tube Safety system PIC. 4 REV A-090413...
- Page 9 1. pressure gauge 2. Main cylinder 3. Inlet oil pipe 4. Outlet oil pipe 1. Air cylinder on column B 2. Air cylinder on column A 3. Air cylinder on column D 4. Air cylinder on column C 5. Switch 6.
- Page 10 Operation 1. Position vehicle wheels in the center of each runway. 2. Set parking brake or use wheel chock to hold vehicle in position. 3. Before raising vehicle, be sure all personnel are clear of the lift and surrounding area. Pay careful attention to overhead clearances.
-
Page 11: Spare Parts List
FP14K Spare Parts List ITEM DESCRIPTION Ramp board Bolt Flat washer Spring washer Straight fitting Elbow fitting Hydraulic pose Hydraulic pose Elbow fitting Pump Bolt Flat washer 48.1 Fitting 48.2 Pressure gauge 48.3 Block 48.4 Bolt 48.5 O-ring Spring washer... - Page 12 Added parts list for FP14KA Added parts #No. Description 41.1 Fitting for pressure gauge 41.2 Pressure gauge 41.3 Bronze body 41.4 Bolt 41.5 O-ring REV A-090413...
- Page 13 FP14K Spare Parts List DESCRIPTION ITEM Transmission beam Spindle 12.1 Snap ring 12.2 Flat washer Spindle 13.1 Snap ring 13.2 Galvanized flat washer Chain wheel Multiple bush Chain seat Page 2 of 4 * Easily Worn Parts REV A-090413...
- Page 14 FP14K Spare Parts List ITEM DESCRIPTION Multiple bush 17.1 Flat washer Flex bolt Chain Chain A（LH1246） Chain B（LH1246） Chain wheel Page 3 of 4 * Easily Worn Parts REV A-090413...
- Page 15 FP14K Spare Parts List DESCRIPTION ITEM Top bracket（B） Small cylinder Snap ring Bolt Top bracket（A） Multiple bush Orientation board Chain wheel Bolt Galvanized nut Galvanized flat washer 32.1 Cotter pin Cover Inner haxangular screw 34.1 Inner haxangular screw Spring washer 35.1...
-
Page 16: Power Unit Priming Procedure
IMPORTANT POWER UNIT PRIMING PROCEDURE THE PROBLEM: Power unit runs fine but will not pump any fluid. Step 1 – Locate the check valve, the flush plug to the left of the lowering valve. (See drawing below.) Step 2 – Using an Allen wrench and shop towel – with shop towel in place to catch fluid –...
