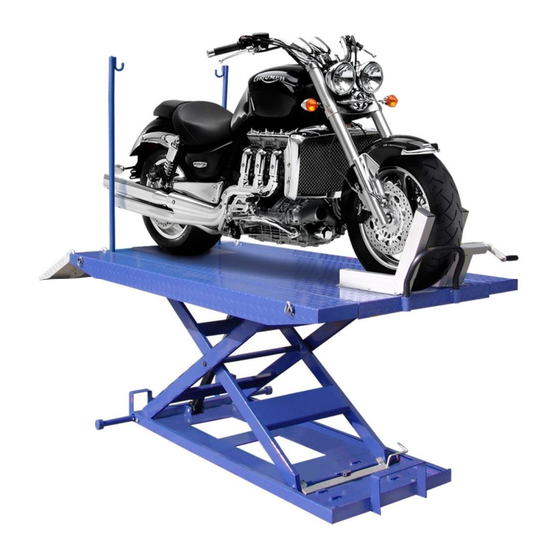

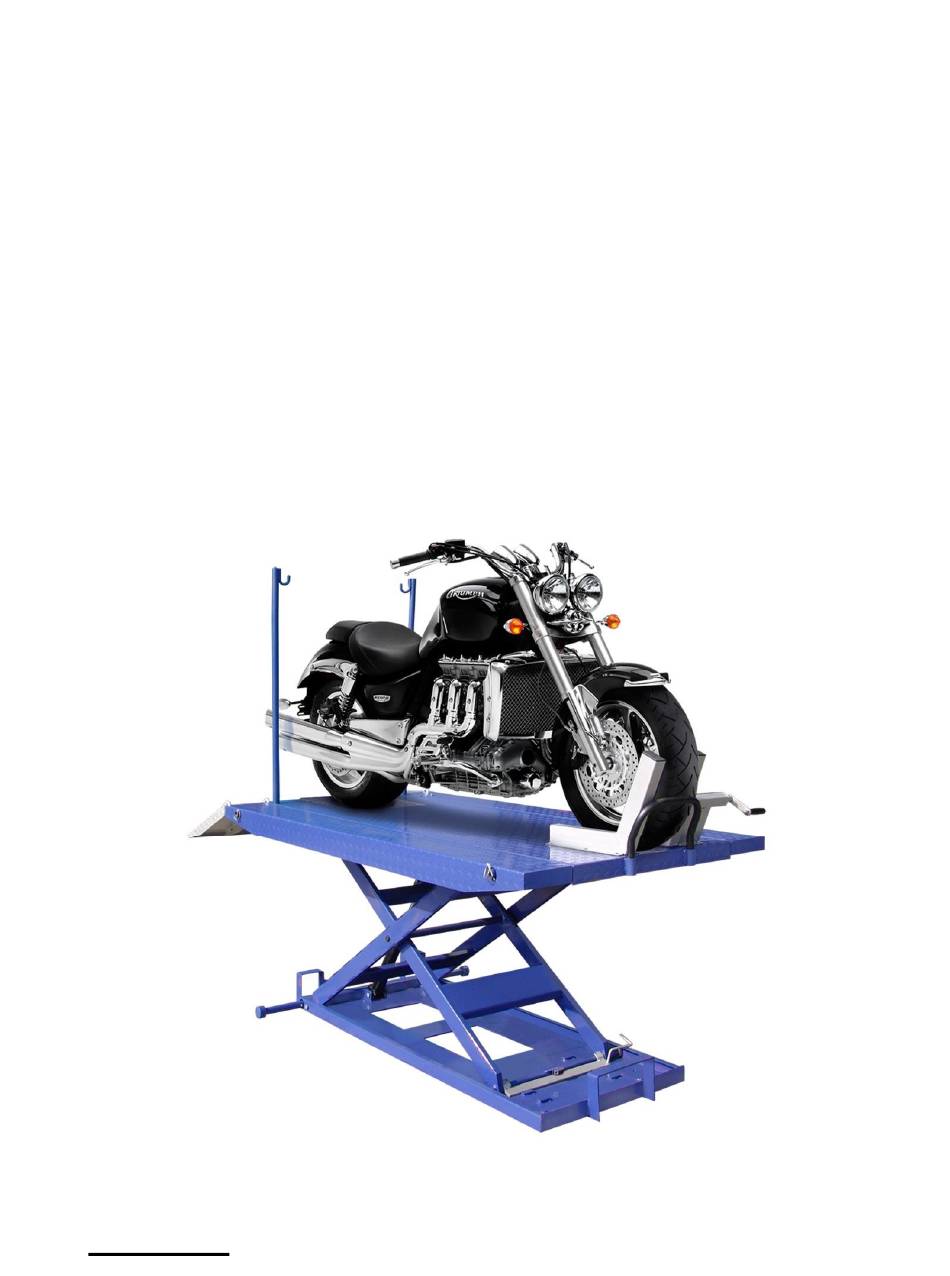

- Page 1 Air / Hydraulic High Rise Motorcycle Lift Bench M-1500C-HR Capacity 1,500lbs Installation, Operation & Maintenance Manual WARNING: READ INSTRUCTIONS BEFORE OPERATING...
-
Page 2: Specifications
SPECIFICATIONS Model M-1500C-HR Capacity 1500 lbs. (680Kg) Operating Pressure 90-125 PSI Lowered Height 6-3/4” Raised Height 38-1/2” Platform w/ Side Extensions 88-1/2”L x 50”W Platform Only 88-1/2”L x 31-1/2”W Ship Weight 765 lbs. FEATURES · 1,500 lbs. Capacity · Air Hydraulic Operation ·... -
Page 3: Unpacking And Setup
7. Lift must be in the fully lowered position when moving to different locations. 8. The working area should be enough to lift motorcycles & power sport vehicles. 9. Air-hydraulic pump should be positioned at least 2 to 3 feet away from lift during raising and lowering operation. Jan 2020 M-1500C-HR... -
Page 4: Maintenance
Foot operated air-hydraulic pump should be at least 3 feet away from Lift during raising and lowering. v Lift is recommended for indoor use only. v Do not exceed 125 PSI air supply to air-hydraulic pump Jan 2020 M-1500C-HR... -
Page 5: Exploded View
EXPLODED VIEW Jan 2020 M-1500C-HR... -
Page 6: Parts List
Piston Rod Assy. M-1500CHR-038 5901-00190-000 O-Ring M-1500CHR-039 5309-00052-000 Circlip M-1500CHR-040 5906-00300-000 Dust Ring M-1500CHR-041 JP08-04005-000 Guide Ring M-1500CHR-042 JP17-04002-000 Position Ring M-1500CHR-043 JP08-04003-000 Piston M-1500CHR-044 JP08-04002-000 Guide Belt M-1500CHR-045 5901-00400-000 O-Ring M-1500CHR-046 5905-00400-000 U-Ring M-1500CHR-047 5304-00025-000 Circlip Jan 2020 M-1500C-HR... - Page 7 M-1500CHR-060 5103-06050-001 Bolt, M6 x 50mm M-1500CHR-061 5206-00006-000 Lock Nut, M6 M-1500CHR-062 JP17-00010-000 Sleeve M-1500CHR-063 5301-00005-000 Flat Washer, D5 M-1500CHR-064 5306-00005-000 Spring Washer, D5 M-1500CHR-065 5202-00005-000 Nut, M5 M-1500CHR-066 5304-00025-000 Circlip, D25 M-1500CHR-067 5105-10030-000 Inner Hex Bolt Jan 2020 M-1500C-HR...
-
Page 8: Limited Warranty
There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
