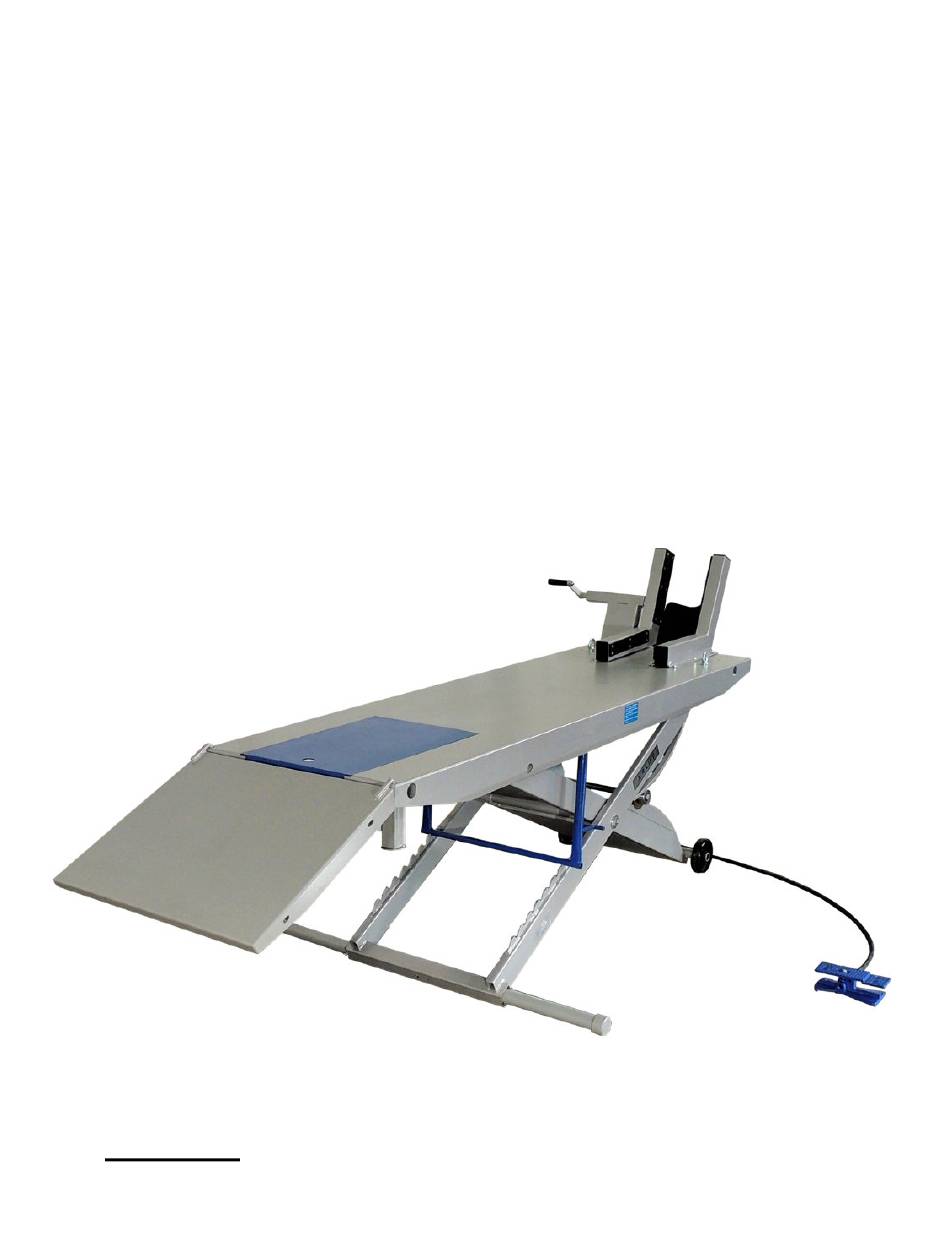

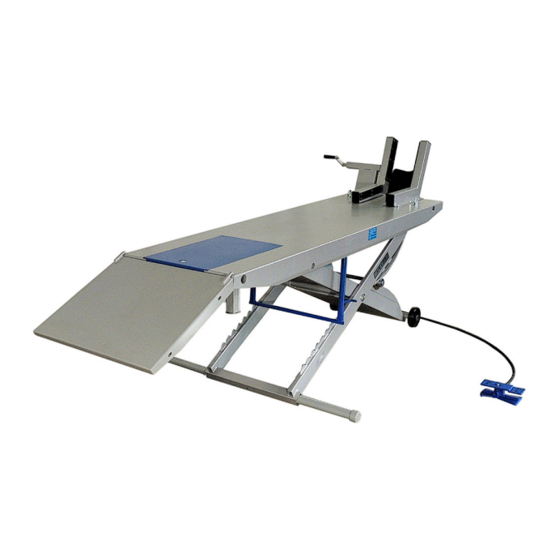

- Page 1 Pneumatic Motorcycle Lift Bench M-1000C Capacity 1,000lbs Installation, Operation & Maintenance Manual (SHOWN WITH OPTIONAL MOTORCYCLE VISE) WARNING: READ INSTRUCTIONS BEFORE OPERATING Jun 2018...
- Page 2 • Install stabilization bar by removing the cap at one end, then insert bar through square hole in base of scissor mechanism. Secure with nut & bolt hardware and reinstall cap. Drop Out Panel (Rear Wheel Access) Lift Platform Jun. 2018 M-1000C...
- Page 3 • SIDE EXTENSION SET – Expands width of lift from 24” to 48” includes stabilizer bar. • FRONT EXTENSION – Extends lift top to 93” for longer wheel base motorcycles. • CYCLE VISE – Used to assist in stabilizing motorcycle while on lift, when using tie-downs. Jun. 2018 M-1000C...
- Page 4 EXPLODED VIEW & PARTS LIST Jun. 2018 M-1000C...
- Page 5 • Install stabilization bar by removing the cap at one end, then insert bar through square hole in base of scissor mechanism. Secure with nut & bolt hardware and reinstall cap. SIDE EXTENSION SET (INSTALLATION DIAGRAM & PARTS LIST) PARTS LIST CYCLE VISE (NOTE: INSTALLATION INFORMATION LOCATED INSIDE VICE PACKAGING) Jun. 2018 M-1000C...
- Page 6 SIDE EXTENSION SET (FINAL INSTALLATION DIAGRAM) Side Extension Ramp Ramp Mount Pins Center Ramp Drop Out Panel Side Extension Panel Ring Clip Platform 13” FRONT EXTENSION (INSTALLATION DIAGRAM) Jun. 2018 M-1000C...
- Page 7 There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
