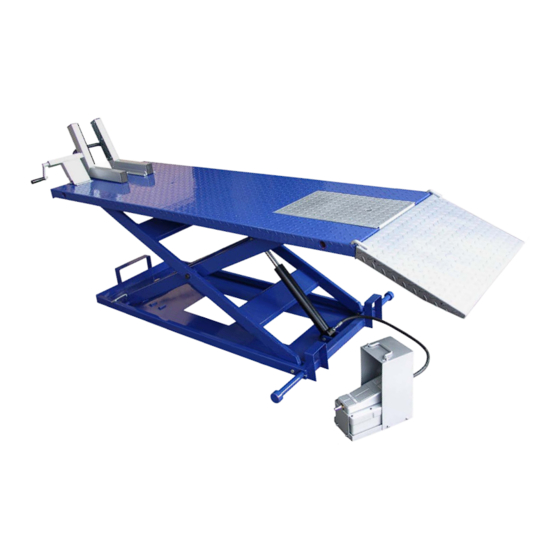

- Page 1 M-1500C-HR 1500 lb Capacity High Rise Motorcycle Lift OPERATION MANUAL REV A-081513...
- Page 3 OTORCYCLE IFTS These lift tables are ideal for making repairs to motorcycles, snowmobiles, ATVs, jet skis, etc. Choose from a range of accessories to customize these tables for your shop. M- 1000 C Motorcycle lift shown with options M- 1500 C-HR Motorcycle lift shown with standard accessories...
- Page 4 There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
-
Page 5: Specifications
SPECIFICATIONS Model M-1500C-HR / ( 243292) Capacity 1500lbs (680Kg ) Operating Pressure 0.8-1.0Mpa (116-145psi) Lowered Height 6-11/16” (170mm ) Raised Height 38-1/2” ( 980mm ) Platform (L x W) 88-9/16” * 31-1/2” ( 2250mm * 800mm ) (with extension) 88-9/16” * 50” ( 2250mm * 1270mm ) -
Page 6: Operation
SSEMBLING (1) Open the carton. Remove lift. (2) Connect the hose from the cylinder to the air-hydraulic pump. (3) Connect the compressed air ( Max 100 psi) supply to the air-hydraulic pump. (4) Press the pedal of the air-hydraulic pump to raise up the lift. (5) Put on the front wheel vise and then tighten all the bolts and nuts. -
Page 7: Parts Drawing
PARTS DRAWING REV A-081513... - Page 8 PARTS CODE LIST ITEM DESCRIPTION Small ramp(Right) Connecting shaft Small platform assy Small ramp(Left) Ramp Support shaft assy Side extension(Left) Position pin Thread shaft assy Hex bolt Fixed plate assy(1) Fixed plate assy(2) Flat washer Limit shaft Platform assy Tool box Side extension(Right) Hex nut Spindle(1)
- Page 9 ITEM DESCRIPTION Cylinder cover Position ring Piston Guide ring O-ring U-ring Elastic washer Cylinder jointing assy Throttling valve assy Red copper washer Union REV A-081513...
