Tuxedo MR6K-38 Operation Manual

6000 lb capacity portable mid-rise scissor lift
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
6,000
.
LB
P
ORTABLE
M
-R
ID
ISE
F
L
RAME
IFT

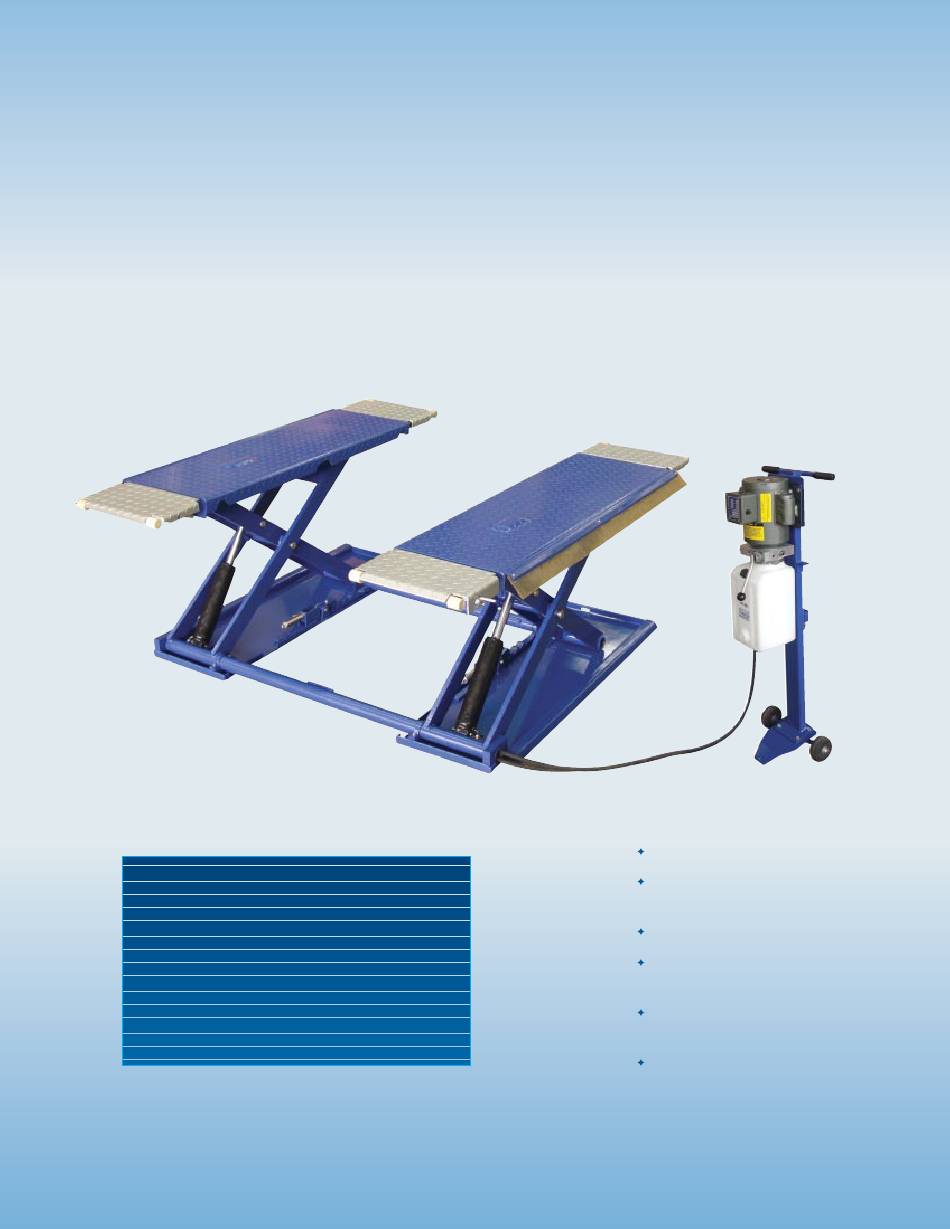

A comfortable 38" working height, twin cylinders and double safety locks
make this portable lift an exceptional value. The MR 6 K -38 is built for
years of efficient, trouble-free service.
MR 6 K- 38
Portable Mid-Rise
Frame lift
S
PECIFICATIONS
Lifting capacity
Overall width
Overall length
Track length
Maximum lifting height
Collapsed height
Motor
Weight
MR 6 K- 38
6,000 lbs.
76
⁄
"
1
2
77"
57
3
⁄
"
4
38"
4"
1 hp 110 vac
1133 lbs.
Features:
6,000 lb. lifting capacity
Automatic double safety
lock system with air release
38" working height
4" drive-over height for
approach of low vehicles
Wheel kit, tow bar and
rubber riser blocks standard
Portable trolley for
power unit and safety lock
air release control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR6K-38 and is the answer not in the manual?

Questions and answers

Related Manuals for Tuxedo MR6K-38

Summary of Contents for Tuxedo MR6K-38

  • Page 1 6,000 ORTABLE RAME A comfortable 38” working height, twin cylinders and double safety locks make this portable lift an exceptional value. The MR 6 K -38 is built for years of efficient, trouble-free service. MR 6 K- 38 Portable Mid-Rise Frame lift Features: 6,000 lb.
  • Page 2 MR6K-38 6000 lb Capacity Portable Mid-Rise Scissor Lift Operation Manual...
  • Page 4 6,000 ORTABLE RAME A comfortable 38” working height, twin cylinders and double safety locks make this portable lift an exceptional value. The MR 6 K -38 is built for years of efficient, trouble-free service. MR 6 K- 38 Portable Mid-Rise Frame lift Features: 6,000 lb.
  • Page 5 There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.

  • Page 6: Table Of Contents

    CONTENT Safety Note, Caution and Warning Important Information Safety Instructions Technical Manual Product Description Technical Data Hydraulic Scheme Before Using Site Selection Surface Condition Installation Instruction Preparation for Starting up Operation Manual Caution and Warning Label Operation Instructions Maintenance Instructions Parts List...

  • Page 7: Note, Caution And Warning

    Safety Information 1.1 Note, Caution and Warning This document uses the following conventions—Note, Caution and Warning – to alert you to special instructions, tips, or hazards for a given procedure. Please familiarize yourself with the conventions described below. Indicates important information that requires special attention, such as a procedure for a specific vehicle, or tips on operating the equipment.

  • Page 8: Safety Instructions

    Safety Instructions 1. Do not raise a vehicle on the lift until the initialization is completed as described in this manual. 2. Technicians should be trained to use and care for the lift by familiarizing themselves with the publications listed above. The lift should never be operated by an untrained person. 3.
  • Page 9 17. Unusual vehicles, such as limousines, RV’s, and long wheelbase vehicles, may not be suitable for lifting on this equipment. If necessary, consult with the manufacturer or the manufacturer’s representative. 18. The maintenance procedures described in this manual can be done by the lift’s owner/employer.

  • Page 10: Technical Manual

    2. Technical Manual 2.1Product Description The hydraulic mobile scissor lift is a manually mobile, frame contact lift incorporating the latest safety technologies. Designed and manufactured for a lifting capacity of 6,000lbs / 2,700kg, is fully capable for lifting cars, light vans and safely holding them in an elevated position. The hydraulic mobile scissor lift consists of a fixed structural scissor lift, the mobile unit (wheels and trolley), the hydraulic power control system and safety devices.
  • Page 11 Figure 1 – General View...

  • Page 12: Hydraulic Scheme

    2.3 Hydraulic Scheme 3. Before Using 3.1. Site Selection The hydraulic mobile scissor lift is designed for indoor use only. Application in a room with explosion hazard is not permitted. Setting in a wet place, a car wash center for instance, is forbidden.

  • Page 13: Installation Instruction

    3.3. Installation Instruction 1. Install the ramps. A. Install the Locking device Insert the pin through the slot B. Mount the spring nut Clamp the spring nut on both end of the pin. C. Mount the ramp Insert the pin through the slot and clamp the Spring nut 2.
  • Page 14 B. Connect Oil hose Connect both oil hoses with the connector on the valve block C. Connect the air tube Connect the air tube (6mm) to the control valve block. P is for compressed air inlet and A is for linking to the air cylinder ( safety lock). D.

  • Page 15: Preparation For Starting Up

    3. Lubricate the sliding pieces with heavy duty bearing grease. 4. Final Adjustment. A. If any problems are encountered, do not proceed with subsequent steps. Instead, resolve the problem before proceeding by referencing the troubleshooting portion of the Owner’s Manual section of this manual. B.

  • Page 16: Operation Manual

    4. Operation Manual Be sure to read and familiarize yourself with the Safety Instructions at the beginning of this manual. Failure to follow Safety Instructions may result in property damage, personal injury or death. 4.1 Caution and Warning Label...

  • Page 17: Operation Instructions

    4.2 Operating Instructions Be sure to read and familiarize yourself with the Safety Instructions at the beginning of this manual. Failure to follow Safety Instructions may result in proper damage, personal injury or death. To avoid personal injury and/or property damage, permit only trained personnel to operate lift.
  • Page 19 4.2.1 Lift Preparation: Lift must be fully lowered and fields clear of all personnel before a vehicle is put on the lift. 4.2.2 Loading Lift: Position the adapter at vehicle manufacturer’s recommended lift points. Use intermediate, high step, or optional adapters for under body clearance when required. Typical Lifting Points.
  • Page 20 4.2.4 To Lower Lift a. Check all danger points of the lift and be sure that there are no objects or people in the working area (danger area) around the lift or on the lift. b. In order to lower the lift to the required working height or to its lowest (or fully collapsed) position, First raise the lift approx.
  • Page 21 MOBILE SET MOVING THE LIFT...

  • Page 22: Maintenance Instructions

    4.3 Maintenance Instructions Contact your service provider for instruction before starting up if you are not completely familiar with automotive lift maintenance procedures. Only qualified personnel can perform maintenance on this equipment. Any failure in operation may cause personal injury or death. Always keep bolts tight.

  • Page 23: Parts List

    5. Parts List 32 31 27-1 27-2...
  • Page 24 CODE Part Number DESCRIPTION Quantity 1611081001 Flat nut 1611081002 Connection pipe jointing 1611081003 Spindle 1611081004 Safty rack 1611081005 Spindle spacer 1611081006 Safty limit assy 1611081007 Half moon block 1611081008 Inner scissor frame 1611081009 Elastic pin 1611081010 Spindle 1611081011 Washer 1611081012 Elastic pin 1611081013 Position plate...
  • Page 25 CODE Part Number DESCRIPTION Quantity 1611081038 Elastic washer 1611081039 Idler wheel 1611081040 Ramp assy 1611081041 Platform assy 1611081042 Connection spindle assy 1611081043 Protection plate 1611081044 Hex bolt 1611081045 Elastic washer 1611081046 Position pin 1611081047 Outer scissor frame 1611081048 Position spindle assy 1611081049 Cross bolt 1611081050...
  • Page 26 CODE Part Number DESCRIPTION Quantity 1611081032 Cylinder assy 1611081086 Valve block 1611081087 O-ring 1611081088 Oil union 1611081089 Oil hose assy 1611081090 Direct union 1611081091 T union 1611081092 Hex bolt 1611081093 Union 1611081094 Short oil hose assy 1611081095 Long oil hose assy...
  • Page 27 Air Inlet hole CODE Part Number DESCRIPTION Quantity 1611081001 Flat nut 1611081020 Air cylinder 1611081076 Direct union 1611081077 Air hose(1) 1611081078 Air hose(2) 1611081079 Air valve 1611081080 Air hose(3) 1611081081 Air union 1611081082 Air hose(4) 1611081083 Adjustable nut 1611081084 Steel cable 1611081085 Loop...
  • Page 28 104 96 CODE Part Number DESCRIPTION Quantity 1611081079 Air valve 1611081089 Oil hose assy 1611081091 T union 1611081092 Hex bolt 1611081096 Nylon nut 1611081097 Cover 1611081098 Flat washer 1611081099 wheel 1611081100 Underframe assy 1611081101 Flat washer 1611081102 Hex bolt 1611081103 Column assy 1611081104 Handle cover...
  • Page 29 IMPORTANT POWER UNIT PRIMING PROCEDURE THE PROBLEM: Power unit runs fine but will not pump any fluid. Step 1 – Locate the check valve, the flush plug to the left of the lowering valve. (See drawing below.) Step 2 – Using an Allen wrench and shop towel – with shop towel in place to catch fluid –...
