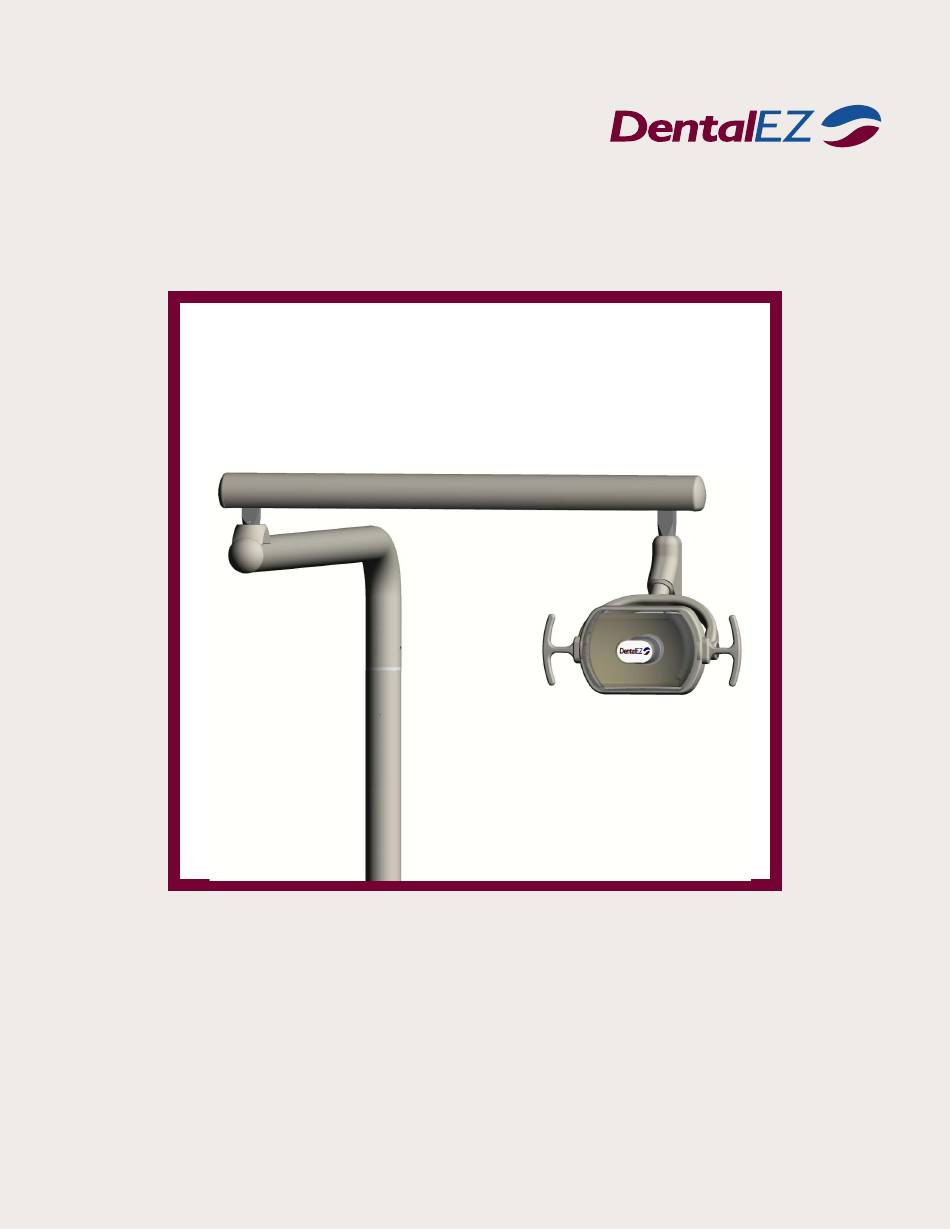

- Page 1 aXcs Operatory Light ® (Post Mount) Installation, Operation and Care Manual...
-
Page 2: Table Of Contents
Table of Contents Section I Introduction Features/Benefits ........................2 Specifications ......................... 2 Packaging ..........................3 Section II Installation Post Mount with Service Console ................4-5 Post Mount without Console..................6-7 Post Mount for Magellan ..................... 7 Section III Operation Light Switch ........................... 8 Master Switch ........................ -
Page 3: Section I Introduction
® DentalEZ aXcs Operatory Light. Halogen Lamp: 24 Volts/150 Watts The aXcs Operatory Light is designed to provide Power Supply - Primary: 120V 60Hz. trouble-free service when installed, operated and 220-250V 50/60Hz. maintained according to the procedures set forth in Secondary: 15V &... -
Page 4: Packaging
Section I Introduction Packaging — NOTICE — For any questions about an order, please The aXcs Operatory Light components are packaged contact a DentalEZ Equipment customer and shipped according to the packing list below. service representative at 1-866-DTE-INFO. Please verify the aXcs Operatory Light carton contents against the packing list. -
Page 5: Section Ii Installation
Section II Installation aXcs Operatory Light ® (Post Mount) 3. Slide the light post (mounting hole first) Post Mount with Service Console through the console's top cover and casting bore. Tools Required 4. Align the four holes in the light post with the Phillips-head screwdriver •... - Page 6 Section II Installation Light Cord Connector Light Arm Connector from Umbilical Assembly Spindle Light Cord Operatory Light Cord Bushing 1. Inside the post-mounted service console, plug the operatory light cord connector into Light Post the matching connector from the umbilical. Set Screw NOTE: If the unit has a power module, skip to Step 8.
-
Page 7: Post Mount Without Console
Section II Installation aXcs Operatory Light ® (Post Mount) Transformer Box Post Mount without Console NOTE: If the plastic connector is not on the end of Tools Required the operatory light cord, attach it following the instructions enclosed in the bag with the connector parts. Phillips-head screwdriver •... -
Page 8: Post Mount For Magellan
Section II Installation 6. Plug the light receptacle connector into the Post Mount for Magellan light receptacle cord. 7. Plug the light receptacle connector into the NOTE: Refer to the Magellan Unit manual for transformer power cord. (See photo below.) installation of the light pole. -
Page 9: Section Iii Operation
Section III Operation aXcs Operatory Light ® (Post Mount) Light Switch Positioning Light The light switch toggle is located on the adjustable Using the handles on either side of the reflector head, arm behind the reflector head. position the light to illuminate the oral cavity. Reflector Adjustable Head... -
Page 10: Eliminating Adjustable Arm Drift
Section III Operation 3. Insert a 9/64 Allen wrench into the two small Eliminating Adjustable Arm Drift holes in the side of the adjustable arm and completely loosen the friction block. The adjustable arm is factory-adjusted to counter- balance the weight of the light head. If it becomes necessary to adjust the mechanism because of added 9/64 Allen weight, such as a mirror, perform the following steps:... -
Page 11: Section Iv Care
Section IV Care aXcs Operatory Light ® (Post Mount) 5. Gently wash the plastic light shield using a Cleaning mild liquid detergent and water only, then dry using a soft tissue or soft cloth. Shield and Reflector 6. Replace the light shield by gently squeezing the sides of the shield and pushing it into the —... -
Page 12: Section V User Service Information
Service Instruction Troubleshooting If the area of concern is not addressed in this manual, — WARNING — contact your local DentalEZ full-service dealership. (See Product Support Services, Page 14.) Exercise extreme caution when trouble- shooting the electrical components of the Please have the following product information available: aXcs Operatory Light. -
Page 13: Parts List/Diagrams
Section VI Parts list/Diagrams aXcs Operatory Light ® (Post Mount) Light Head No. Description Part/Kit # Switch Housing 3801-816 Rear Cap 3801-805 Locking Nut 3801-808 Gasket 3801-812 Reflector 3801-810 Socket 3801-815 aXcs Light Bulb 3801-797 Shield Assembly 3801-809 Gasket 3801-813 Handle 3801-817 3801-806... - Page 14 Section VI Parts list/Diagrams Light Arm Assembly No. Description Part/Kit # Arm End Cap 3801-811 Rigid Arm Cap 3801-814 Power Module Post Bushing 3801-848 No. Description Part/Kit # Transformer 5 110V Breakers 3801-835 6 220V Breakers 3801-826 No. Description Part/Kit # 7 Air Electric Switch 3800-453 8 Hospital Grade Plug 3801-012 Transformer...
-
Page 15: Product Support Services
Operatory Light The DentalEZ Group and its employees are proud of the products we provide to the dental community. We stand behind these products with a warranty against defects in material and workmanship as provided below and have our own in-house repair facility to service our products. -
Page 16: Wiring Schematic
Wiring Schematic aXcs ® Operatory Light (Post Mount) - Page 17 2500 Highway 31 South Bay Minette Alabama 36507 Phone: 1-866-DTE-INFO Fax: (251) 937-0461 www.dentalez.com © DentalEZ Alabama, Inc. PN: 2717-193D January, 2003 Printed in USA...
