Jung IPZ 1000 REG Operating Instructions Manual

Knx ip central unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KNX
25 491 03
Stand: Aug-07 3
Operating Instructions

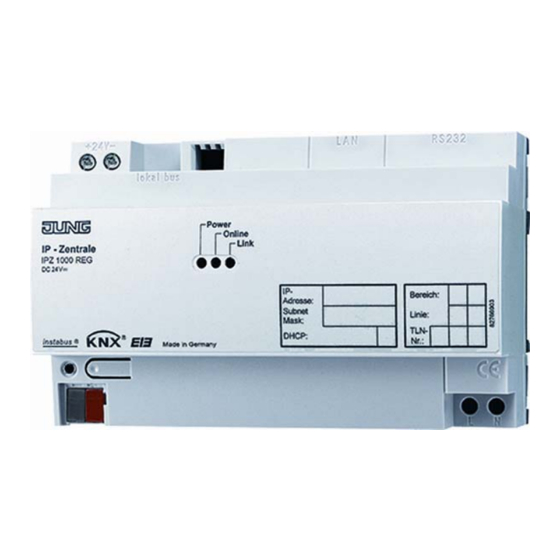

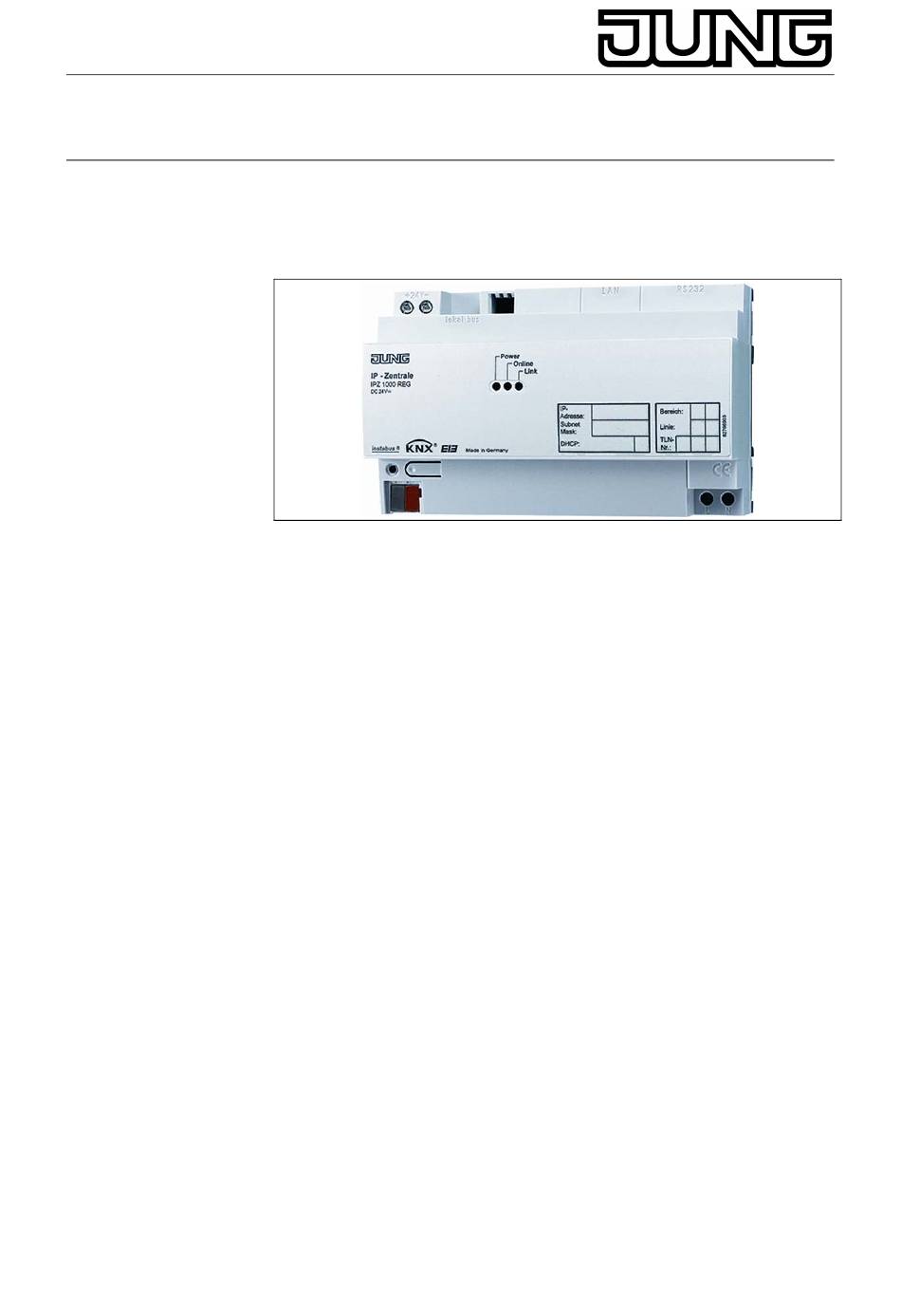

IP Central Unit

1. System information

This device is a product of the instabus EIB system and complies with
EIBA directives. Detailed technical knowledge obtained in instabus
training courses is a prerequisite to proper understanding. The
functionality of this device depends on the software. Detailed information
on loadable software and attainable functionality as well as the software
itself can be obtained from the manufacturer's product database.
Planning, installation and commissioning of the unit is done by means of
EIBA-certified software. The latest version of the product database and of
the technical descriptions are always available in the Internet under
www.jung.de

2. Safety warnings

Attention
Electrical equipment must be installed and fitted by qualified
electricians only and in strict observance of the relevant accident
prevention regulations. Failure to observe any of the installation
instructions may cause fire and other hazards
Important: The present installation instructions are to give a first
overview of the use and information on the connection of the IP central
unit. A detailed description of the product and configuration of the
necessary devices can be found in the respective EIB product
documentation.

3. Function

The IP central unit is the interface between the Ethernet LAN (Local Area
Network) and the instabus EIB, and in future also the e2i system. With an
Ethernet connection, the user has access from the local PC of his LAN or
also via the Internet to his instabus EIB or to his e2i system. The Internet
connection can be established via DSL, LAN (RJ45-port) or also with a
V90 modem / ISDN-adapter (RS232 port). The IP central unit acts as a
server and can be comfortably operated as a central control, reporting
IP Central Unit
Ref.-no.: IPZ 1000 REG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPZ 1000 REG and is the answer not in the manual?

Questions and answers

Related Manuals for Jung IPZ 1000 REG

Summary of Contents for Jung IPZ 1000 REG

  • Page 1 IP Central Unit Ref.-no.: IPZ 1000 REG Operating Instructions IP Central Unit 1. System information This device is a product of the instabus EIB system and complies with EIBA directives. Detailed technical knowledge obtained in instabus training courses is a prerequisite to proper understanding. The functionality of this device depends on the software.
  • Page 2 IP Central Unit Ref.-no.: IPZ 1000 REG and checking unit with the web browser of a PCs (Microsoft Internet © Explorer from V 5.5 onwards) or other suitable LAN devices as, for instance, a PDA. 4. Characteristics User-controlled commissioning and configuration assistant, system clock...
  • Page 3 IP Central Unit Ref.-no.: IPZ 1000 REG Designation and function of the connecting ports (1) bus connection terminal for EIB connection (2) screw terminals for polarity-independent 24 V DC connection, e.g. from the unchoked output of the EIB power supply unit...
  • Page 4 IP Central Unit Ref.-no.: IPZ 1000 REG Operation in LAN with dial-in, triggering via modem A local Ethernet (LAN) establishes – e.g. by means of a router – a connection with the Internet on request. This type of connection is useful with a time/volume tariff.
  • Page 5 IP Central Unit Ref.-no.: IPZ 1000 REG A local Ethernet (LAN) establishes – e.g. by means of a router – a connection with the Internet on request. This type of connection is useful with a time/volume tariff. In the event of an access from outside, e.g. via external PC, the user interface of the browser initiates a trigger request by the directory server to a specific phone number.

  • Page 6: Technische Daten

    IP Central Unit Ref.-no.: IPZ 1000 REG 6. Cap Slide the cap with the bus wires at the bottom over the bus terminal (fig. A) until it is heard to engage. To remove the cap, push sideways and withdraw (fig. B).
  • Page 7 Our products are under guarantee within the scope of the statutory provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +(49) 23 55 .
