ADTEK CPM-21 Operation Manual page 8

P P
ress ress Shift Shift
KEY KEY
Normal screen
first showed off the voltage value As follows
Press Key
Press Key
Press Key
Press Key
Press Key

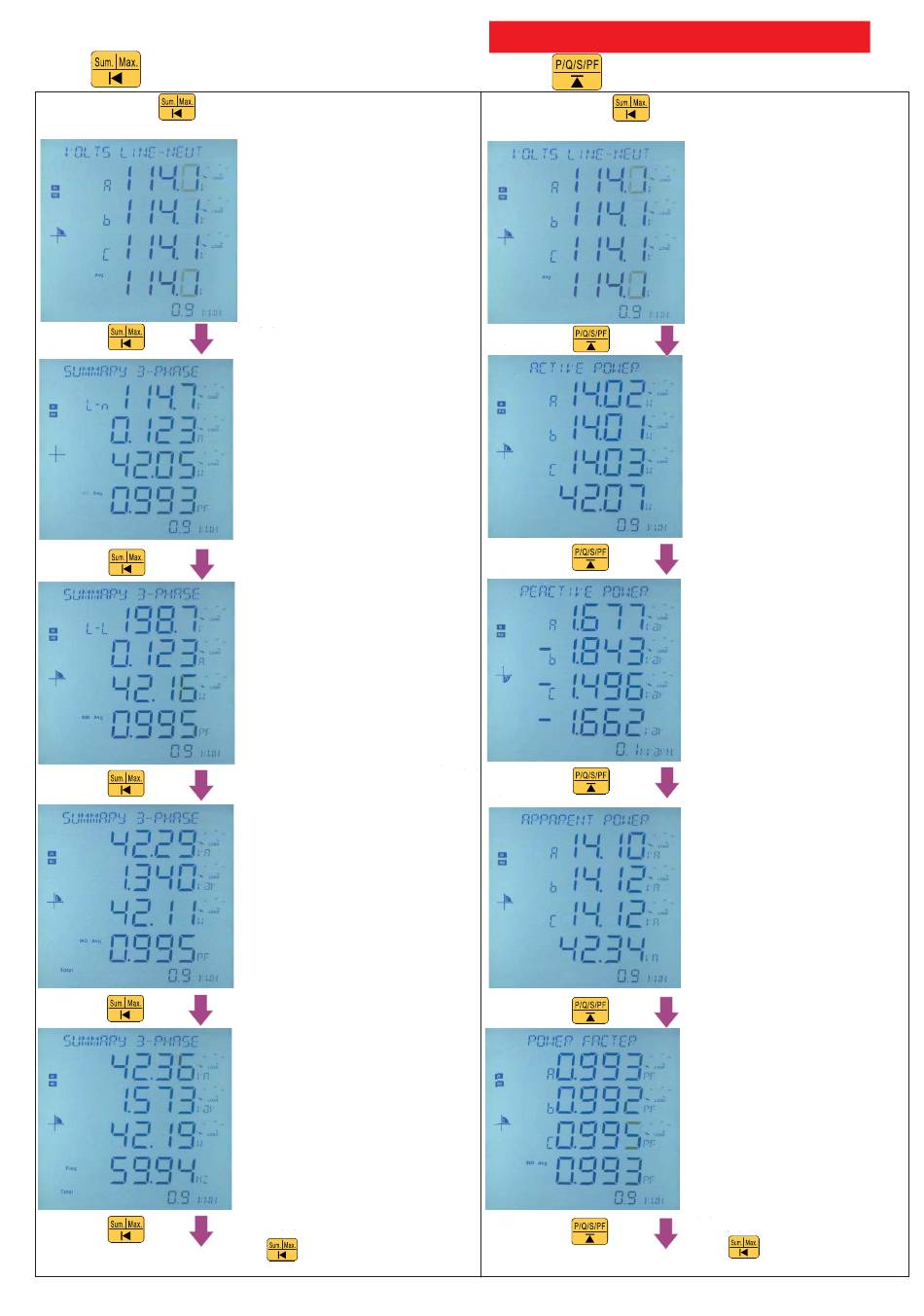

Comprehensive screen Comprehensive screen
( (
1 seconds,
Phase voltage and the Average
Phase A voltage
Phase B voltage
Phase C voltage
Average Phase voltage
Active energy
1.2.1-
3 phase integrated display -
Average Phase voltage
Average current
Total Active power
Average power factor
Active energy
1.2.2-
3 phase integrated display 2 -
Average Line voltage
Average current
Total Active power
Average power factor
Active energy
1.2.3-
3 phase integrated display 3 -
Total Apparent Power
Total Reactive Power
Total Active power
Average power factor
Active energy
1.2.4-
3 phase integrated display 4 -
Total Apparent Power
Total Reactive Power
Total Active power
Frequency
Active energy
o . .
T 1 2 1 Display Or
Press Key1 Sec Back to
Measurement screen
(3P3W/3P3W.B/3P3W3 No such function) (3P3W/3P3W.B/3P3W3 No such function)
P P
ress ress Up Up
) )
Normal screen
first showed off the voltage value As follows
Press Key
-1
Press Key
-
Press Key
-
Press Key
-
Press Key
7
Power Parameters Power Parameters
( (
KEY KEY
1 seconds,
Phase voltage and the Average
Phase A voltage
Phase B voltage
Phase C voltage
Average Phase voltage
Active energy
1.3.1-
Effective power display
Phase A active power
Phase B active power
Phase C active power
Total Effective power
Active energy
1.3.2-
Reactive power display
Phase A reactive power
Phase B reactive power
Phase C reactive power
Total reactive power
Reactive energy
1.3.3-
Apparent power display
Phase A apparent power
Phase B apparent power
Phase C apparent power
Total Apparent Power
Active energy
1.3.4-
Power Factor display
Phase A power factor
Phase B power factor
Phase C power factor
Average Power factor
Active energy
T 1 3 1 Display Or o . .
Press Key1 Sec Back to
Measurement screen
) )
