ADTEK CPM-21 Operation Manual page 7

Press Press
ENT ENT ( ( Voltage and Current harmonics screen Voltage and Current harmonics screen
Key Key

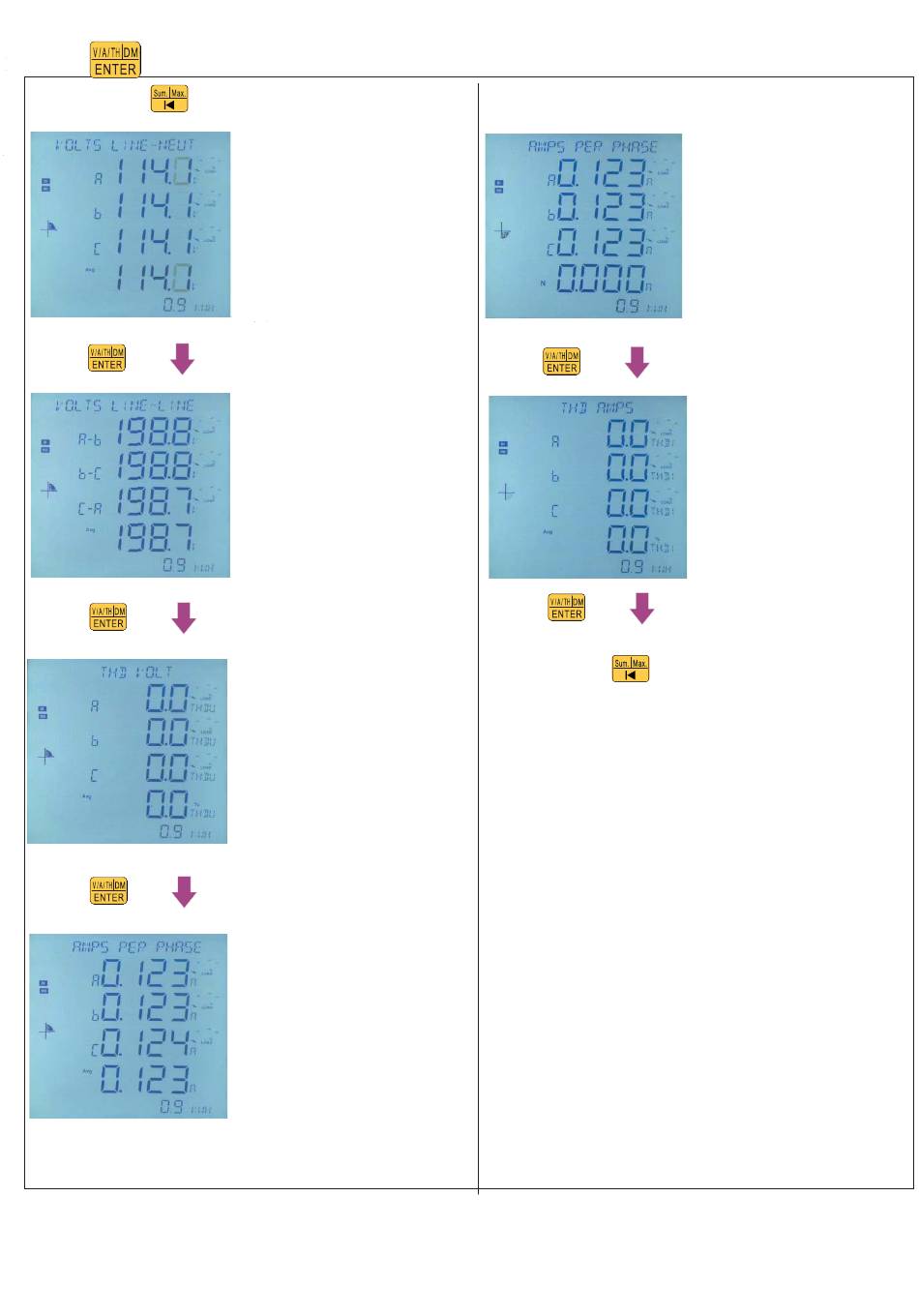

Normal screen
first showed off the voltage value As follows
Press Key
Press Key
Press Key
1 seconds,
Phase voltage and the Average
Phase A voltage
Phase B voltage
Phase C voltage
Average Phase voltage
Active energy
1.1. - 1
The Value of the Line voltage
and the Average Line voltage
A-B Line voltage
B-C Line voltage
C-A Line voltage
Average line voltage
Active energy
1.1. - 2
Voltage total harmonic distortion
Phase voltage total harmonic
THDU/ Phase A THD
THDU/ Phase B THD
THDU/ Phase C THD
Average line voltage THD
Active energy
1.1. - 3
Phase current values and the
average
Phase A current
Phase B current
Phase C current
Average current
Active energy
Press Key
Press Key
o . .
T 1 1 1 Display Or
Press
Measurement screen
6
) )
1.1.4-
Phase Current and Neutral
Current
Phase A current
Phase B current
Phase C current
Neutral Current
Active energy
1.1. - 5
Current harmonic
distortion rate
THDI/Phase A current THD
THDI/Phase B current THD
THDI/Phase C current THD
Average current THD
Active energy
Key1 Sec Back to
