Have the display repaired or replaced if, for
example, pixel errors considerably restrict its
use.
360° camera
Function of the surround view camera
The surround view camera is a system that con‐
sists of four cameras. The cameras cover the
immediate vehicle surroundings. The system
assists you when you are parking or at exits with
reduced visibility, for example.
The views of the surround view camera are
always available when driving forwards up to a
speed of approx. 10 mph (16 km/h) and when
backing up.
The surround view camera is only an aid. It is not
a substitute for your attention to the surround‐
ings. The responsibility for safe maneuvering and
parking remains with you. Make sure that there
are no persons, animals or objects etc., in the
maneuvering area while maneuvering and park‐
ing.
The system evaluates images from the following
cameras:
Rear view camera
R
Front camera
R
Two side cameras in the outside mirrors
R

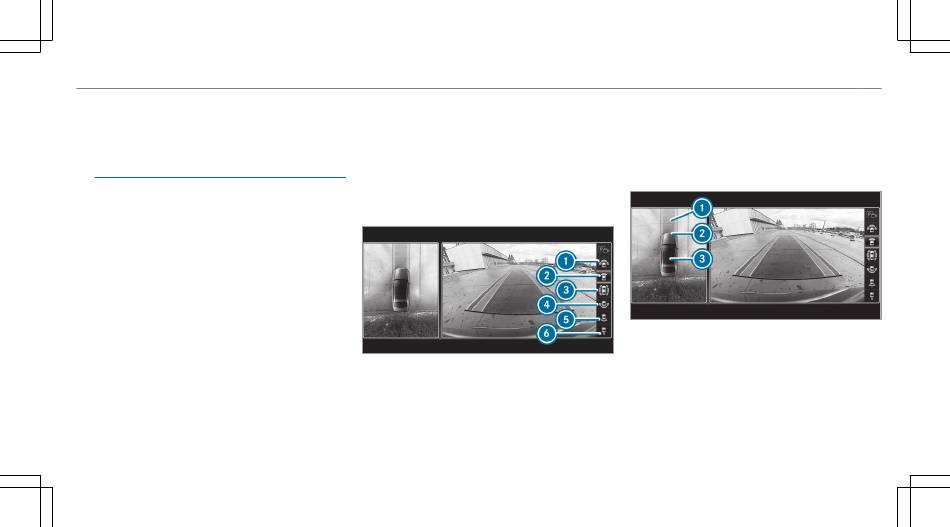

Views of the surround view camera
You can select from different views:
1
Wide-angle view, front
2
Top view with image from the front camera
3
Top view with images from the side cameras
in the outside mirrors
4
Wide-angle view, rear
Driving and parking 187
5
Top view with image from the rear view cam‐
era
6
Top view with trailer view (vehicles with a
trailer hitch)
Top view
1
Lane indicating the route the vehicle will
take at the current steering wheel angle
2
Yellow warning display of Parking Assist
PARKTRONIC: obstacles at a distance of
approximately 3.3 ft (1.0 m) or less
3
Your vehicle from above
If the distance to the object lessens, the color of
warning display
2
changes. From a distance of
