SET COMMUNICATION:

This section defines the fundamental communication parameters of NMEA2000.
By Pressing the "Set Communication" button from the main window for SW67875 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "IO-Link" are:
In the fields "Select Device" the type of IO-Link channels is defined;
The means of the fields for "NMEA2000" are:
In the field "Baudrate" the data rate of NMEA2000 is defined;
In the field "TimeOut
received in this time, the data on IO-Link side are set to 0xFF;
If the field "Enable Peer to
Address of the NMEA2000 messages received.
The means of the fields for the "Ethernet" section are:
In the fields "IP ADDRESS" the IP address of the converter is defined;
In the fields "SUBNET
In the fields "GATEWAY" the default gateway of the network is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Data" a time is defined. When a NMEA2000 message is not
Peer" is checked, the gateway will mask the Source
Mask" the SubNet Mask of the converter is defined;
User Manual IO-Link / NMEA2000
Document code: MN67875_ENG Revision 1.000

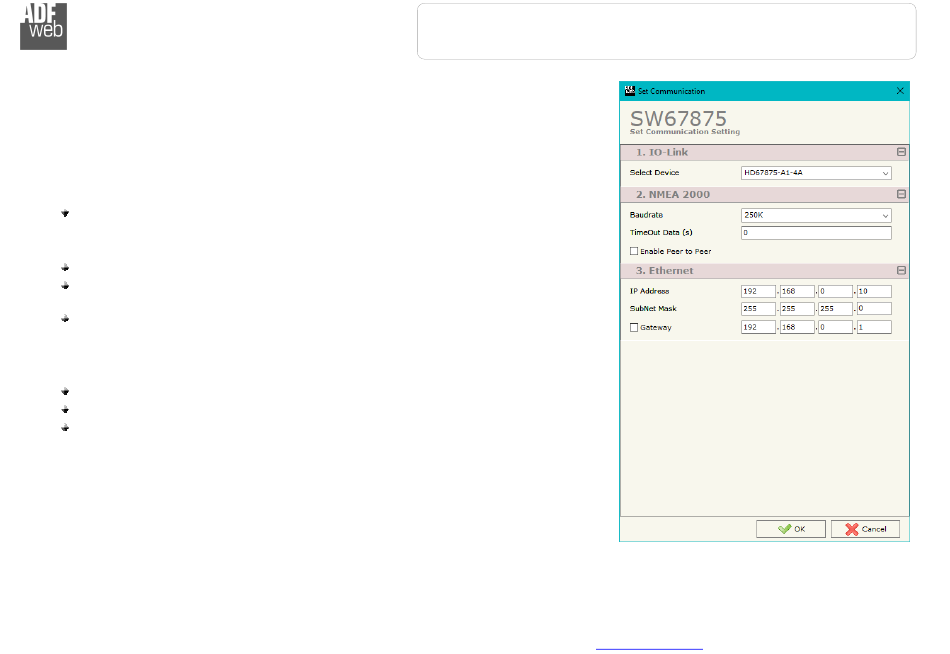

Figure 3: "Set Communication" window
