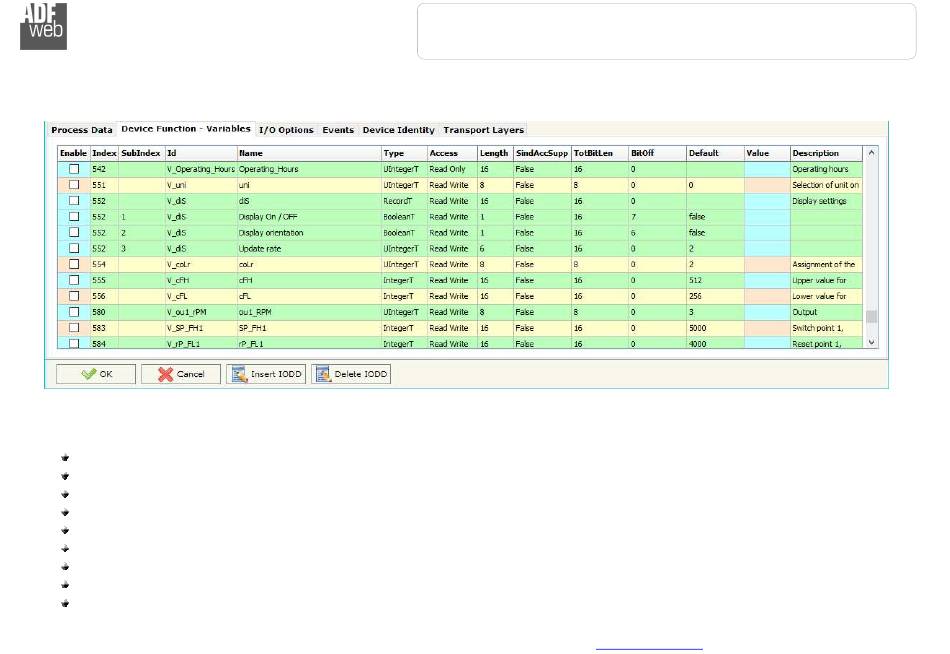

The "Device Function – Variables" section is used to define the IO-Link parameters to link to NMEA2000 side (Fig. 8).
Figure 8: "Device Function - Variables" section
The meanings of the fields are:
In the field "Index" the Index of the IO-Link parameter is defined;
In the field "SubIndex" the Subindex of the IO-Link parameter is defined;
In the field "Id" the Id of the IO-Link parameter is defined;
In the field "Name" the name of the IO-Link parameter is defined;
In the field "Type" the data format of the IO-Link parameter is defined;
In the field "Access" the access type of the IO-Link parameter is defined;
In the field "Length" the bit length of the IO-Link parameter is defined;
In the field "SindAccSupp" the value of subindexAccessSupported attribute of the IO-Link parameter is defined;
In the field "TotBitLen" the bit length of the array to which the IO-Link parameter refers is defined;
