RECEIVE NMEA 2000:
By pressing the "Receive NMEA
appears (Fig. 13).

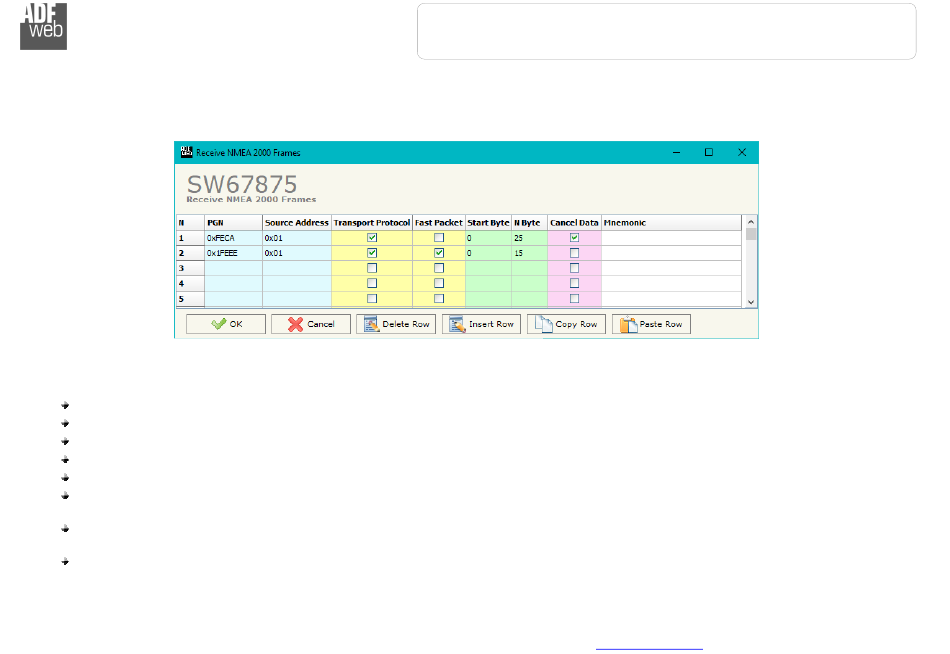

Figure 13: "Receive NMEA 2000 Frames" window
The means of the fields of the table are:
In the field "PGN" the PGN of the NMEA 2000 message to receive is defined (in the NMEA 2000 protocol, the PGN is an identifier);
In the field "Source Address" the address of the device that sends the frame is defined.
If the field "Transport
If the field "Fast Packet" is checked, the frame will use the Fast Packet functions;
In the field "Start Byte" the starting byte to save on IO-Link side is defined;
In the field "N Bytes" the number of consecutive byte from the starting one is defined. For example, if the Start Byte is '20' and Num
Bytes is '10', it is possible to read the byte from 20 to 30;
If the field "Cancel Data" is checked, when the data is oldest of the time inserted in the "TimeOut Data", the converter sets "0xFF" in
the bytes of the internal memory array reserved for the PGN;
In the field "Mnemonic" the description for the frame is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
2000" button from the main window for SW67875 (Fig. 2) the window "Receive NMEA 2000 Frames"
Protocol" is checked, the frame can use transport protocol functions;
