GIRBAU RMS628 Maintenance Manual

Hide thumbs Also See for RMS628:

Advertisement

Table of Contents

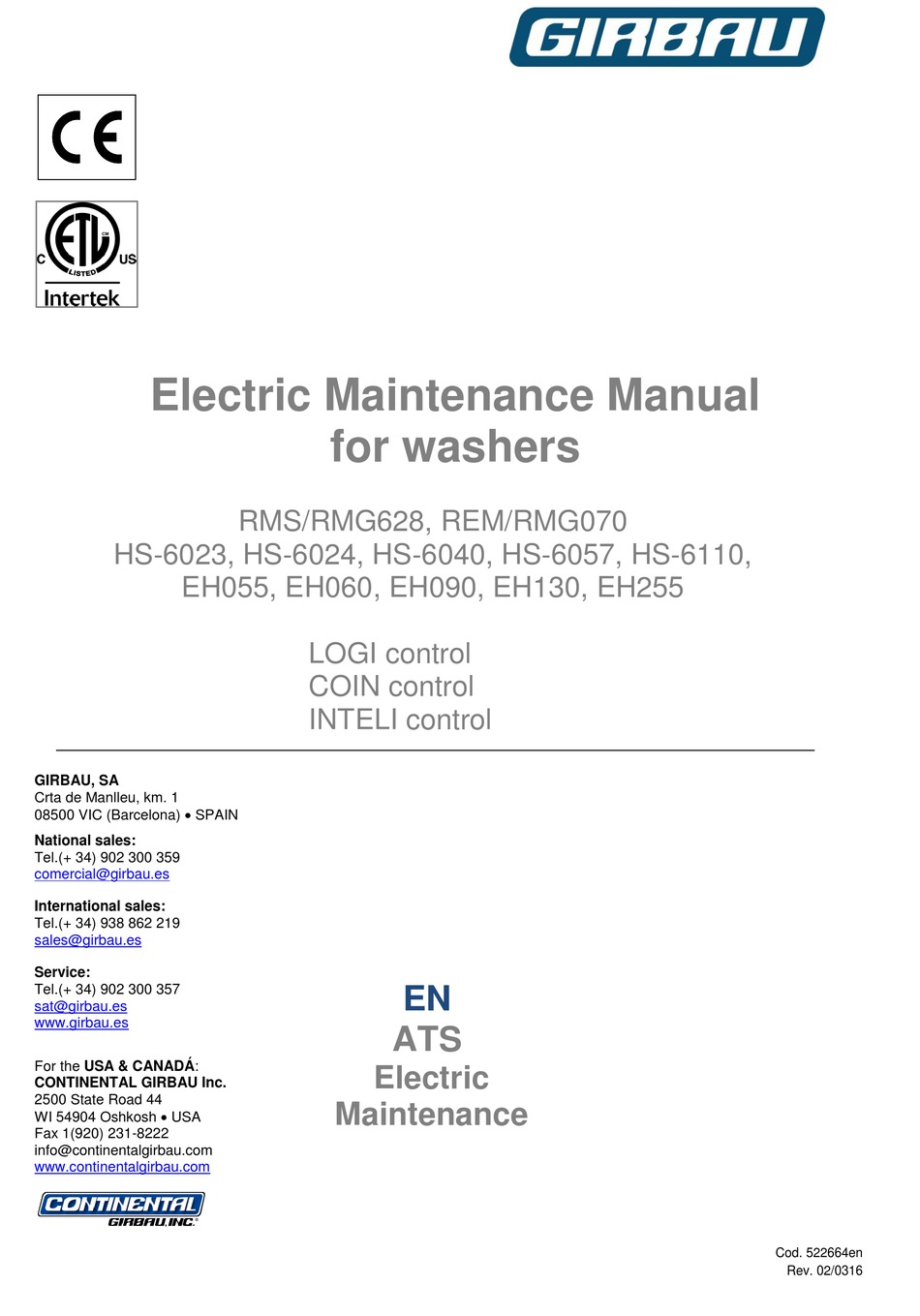

Electric Maintenance Manual
HS-6023, HS-6024, HS-6040, HS-6057, HS-6110,
EH055, EH060, EH090, EH130, EH255
GIRBAU, SA
Crta de Manlleu, km. 1
08500 VIC (Barcelona)  SPAIN
National sales:
Tel.(+ 34) 902 300 359
comercial@girbau.es
International sales:
Tel.(+ 34) 938 862 219
sales@girbau.es
Service:
Tel.(+ 34) 902 300 357
sat@girbau.es
www.girbau.es
For the USA & CANADÁ:
CONTINENTAL GIRBAU Inc.
2500 State Road 44
WI 54904 Oshkosh  USA
Fax 1(920) 231-8222
info@continentalgirbau.com
www.continentalgirbau.com
for washers
RMS/RMG628, REM/RMG070
LOGI control
COIN control
INTELI control
EN
ATS
Electric
Maintenance
Cod. 522664en
Rev. 02/0316

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMS628 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GIRBAU RMS628

Summary of Contents for GIRBAU RMS628

  • Page 1 Tel.(+ 34) 938 862 219 sales@girbau.es Service: Tel.(+ 34) 902 300 357 sat@girbau.es www.girbau.es For the USA & CANADÁ: Electric CONTINENTAL GIRBAU Inc. 2500 State Road 44 Maintenance WI 54904 Oshkosh  USA Fax 1(920) 231-8222 info@continentalgirbau.com www.continentalgirbau.com Cod. 522664en...
  • Page 2  The actions described in theses instructions are strictly reserved for AUTHORISED TECHNICAL SERVICES, that has successfully completed training on the product by Girbau SA or a Girbau SA distributor.  The company responsible of the Authorised Technical service fully assumes liability for the intervention and any possible consequences that may derive from it.

  • Page 3: Table Of Contents

    SAT – Electric Maintenance INDEX 1. INTRODUCTION ..............................3 2. INTERVENTION, VERIFICATION AND TROUBLESHOOTING................. 4 2.1 Summary table of failures and interventions ....................4 2.2 Detail of checking actions and troubleshooting ..................... 5 3. INVERTER CLEANING AND MAINTENANCE ....................21 3.1 Introduction ..............................

  • Page 4: Intervention, Verification And Troubleshooting

    SAT – Electric Maintenance 2. INTERVENTION, VERIFICATION AND TROUBLESHOOTING 2.1 Summary table of failures and interventions INVERTER DESCRIPTION OF THE DISPLAY REPORT LC/CC CONTROL DISPLAY FAULT IC CONTROL DISPLAY REPORT REPORT Communication failure 2 Inverter communication between the microprocessor Alm VAR 0 LU/ErP failure and the inverter...

  • Page 5: Detail Of Checking Actions And Troubleshooting

    SAT – Electric Maintenance 2.2 Detail of checking actions and troubleshooting Below, the actions to check and locate the breakdowns are listed in the same order as the summary table. Supplement the following instructions with the diagram and the corresponding parts view of the washer.
  • Page 6 SAT – Electric Maintenance 1.- COMMUNICATION FAILURE BETWEEN THE MICROPROCESSOR AND THE INVERTER Alarm codes: IC control microprocessor display report: 2 Inverter communication failure. LC/CC control microprocessor display report: Alm VAR 0 Inverter display report: The communication failure can appear with various codes. In an inverter power failure (insufficient voltage), LU (low voltage) appears on the inverter display for a few seconds.
  • Page 7 SAT – Electric Maintenance 1 (Cont.).-Communication failure between the microprocessor and the inverter Voltage of 200/230V AC. at relay KA1 coil Check the relay KA1 coil connection circuit. terminals (models HS-6040, HS-6057, HS-6110, Solve the problem. EH090, EH130 and EH255). Possible contactor failure.
  • Page 8 SAT – Electric Maintenance 2.- INVERTER OVERCURRENT FAULT Alarm codes: IC control microprocessor display report: 30 Inverter accel. overcurrent (during acceleration); 31 Inverter decel. overcurrent (during deceleration); 32 Inverter overcurrent (turning at constant speed). LC/CC control microprocessor display report: Alm VAR 3 Inverter display report: OC1 (during acceleration);...
  • Page 9 SAT – Electric Maintenance 3.- INVERTER OVERVOLTAGE FAULT Alarm codes: IC control microprocessor display report: 7 Inverter overvoltage LC/CC control microprocessor display report: Alm VAR 5 Inverter display report: OU1; OU2; OU3. Description The voltage overload alarm is activated if the voltage of the inverter’s DC bus exceeds the limit established internally.
  • Page 10 SAT – Electric Maintenance 4.- MOTOR THERMAL SAFETY DISCONNECTION OR FAN MOTOR SWITCH DISCONNECTION (Q2) FAULT Alarm codes: IC control microprocessor display report: 6 motor overtemperature, 42 motor fan failure (HS-6110, EH255.) LC/CC control microprocessor display report: Alm VAR 4 Inverter display report: OH2 Description The alarm is activated due to the disconnection of one of the following circuits:...
  • Page 11 SAT – Electric Maintenance Segment LED 1 X1: Thermal protection (F5) of the drum motor M1. X2: Switch contact (Q2) for the protection of the fan motor M2 (HS-6110, EH255). 5.-WASHER'S MOTOR THERMAL SAFETY DISCONNECTION FAULT Alarm codes: IC control microprocessor display report: 6 motor overheating LC/CC control microprocessor display report: Alm VAR 4 Inverter display report: OH2 Description...
  • Page 12 SAT – Electric Maintenance 5.(Cont.).-Washer's motor thermal safety disconnection fault step check action Check the fan motor and connection wiring; if no reason for the disconnection is detected, Switch Q2 on. turn on switch Q2. If the disconnection recurs frequently, refer to Section 6. YES Go to step 7.
  • Page 13 SAT – Electric Maintenance 6.- WASHER'S FAN MOTOR THERMAL SAFETY DISCONNECTION FAULT (Models HS-6110, EH255) Alarm codes: IC control microprocessor display report: 42 Motor fan failure LC/CC control microprocessor display report: --- Inverter display report: OH2 Description The motor’s overheating alarm is activated by the disconnection of the fan’s thermal protection (Q2). Inverter input: CMX2.
  • Page 14 SAT – Electric Maintenance 7.- INVERTER OVERHEATING FAULT Alarm codes: IC control microprocessor display report: 8 Inverter overheating LC/CC control microprocessor display report: Alm VAR 6 Inverter display report: OH1; OH3 Description The inverter’s overheating alarm OH1 is activated when the internal temperature of the inverter exceeds a predetermined value due to a fault in the heat dissipating fan.
  • Page 15 SAT – Electric Maintenance 8.- SUPPLY VOLTAGE LOWER THAN NOMINAL VOLTAGE FAULT Alarm codes: In most cases, if the inverter detects a supply failure, it halts its operation and therefore, the most frequent alarm is the communication failure alarm. IC control microprocessor display report: 2 Inverter communication failure LC/CC control microprocessor display report: Alm VAR 0 Inverter display report: LU Remarks...
  • Page 16 SAT – Electric Maintenance 9.- INVERTER INPUT PHASE FAILURE Alarm codes: IC control microprocessor display report: 37 Inverter phase failure LC/CC control microprocessor display report: Alm U-10 Inverter display report: Lin Description The alarm due to a fault in the inverter input phase is activated by failure of one of the three power phases to the inverter or by a major imbalance of voltage between the supply phases.
  • Page 17 SAT – Electric Maintenance 10.- INVERTER OUTPUT PHASE FAILURE Alarm codes: IC control microprocessor display report: 33 General inverter failure LC/CC control microprocessor display report: Alm U-11 Inverter display report: OPL Description The alarm due to a fault in the inverter output phase is activated by a failure of one of the three power phases to the inverter or by a major imbalance of consumption between these phases.
  • Page 18 SAT – Electric Maintenance 11.- INVERTER OVERLOAD FAULT Alarm codes: IC control microprocessor display report: 40 Inverter overload LC/CC control microprocessor display report: Alm U-14 Inverter display report: OL1; OL2; OL3; OL4 Description The overload alarm is activated if the consumption of the motor exceeds the limits established in the inverter program.
  • Page 19 SAT – Electric Maintenance 12.- INVERTER INTERNAL CONTROL FAULT Alarm codes: IC control microprocessor display report: Without information LC/CC control microprocessor display report: --- Various alarms appearing on the inverter display with Er  reports Description These alarms indicate a fault in the memory or in the inverter’s internal control. Microprocessor response when an alarm is detected It prevents or interrupts the running of the washing cycle.
  • Page 20 SAT – Electric Maintenance 14.- NO INFORMATION ON THE INVERTER DISPLAY Alarm codes: Without information (IC Control: 2 Inverter communication failure, LC/CC control: Alm VAR 0). Description This situation may be due to: - Inverter supply failure. - Failure of the inductance. - General failure of the inverter.

  • Page 21: Inverter Cleaning And Maintenance

    SAT – Electric Maintenance 3. INVERTER CLEANING AND MAINTENANCE 3.1 Introduction The appearance of the inverter overheated alarm can be caused by the accumulation of dirt and lint at the inverter cooling area, making it difficult to properly ventilate the equipment. For this reason it is essential to periodically clean the inverter to maintain good ventilation and thus avoid the overheating problems.

  • Page 22: Inverter Cleaning For Hs-6023, Hs-6024, Rms/Rmg628, Eh055, Eh060, Rem/Rmg070 Models

    SAT – Electric Maintenance 3.3 Inverter cleaning for HS-6023, HS-6024, RMS/RMG628, EH055, EH060, REM/RMG070 models  For HS-6023, HS-6024, EH055 and EH060 models, remove the screws A and the machine's rear panel B (Figure 3.1). Fig. 3.1  For RMS/RMG628 and REM/RMG070 models, remove the screws A and the bottom front cover (Figure 3.2).
  • Page 23 SAT – Electric Maintenance  The inverter is attached at the back of the protection box A (Fig. 3.3). To disassemble it, the inverter needs to be extracted together with this box. Fig. 3.3  Remove screws A from the upper and lower part of the inverter.
  • Page 24 SAT – Electric Maintenance  Clean the radiator using a brush (figure 3.5). Fig. 3.5  Disassemble A screw and clean the fan (figure 3.6). Fig. 3.6 Cod. 522664en Rev. 02/0316...
  • Page 25 SAT – Electric Maintenance  Clean the fan using a brush (Figure 3.7). Fig. 3.7  Fit the fan in the inverter.  Fit the inverter.  Assemble the rear cover.  Once the maintenance operation has been completed, run the TEST program to ensure that the machine is operating properly.

  • Page 26: Inverter Cleaning For Hs-6040, Hs-6057, Eh090, Eh130 Models

    SAT – Electric Maintenance 3.4 Inverter cleaning for HS-6040, HS-6057, EH090, EH130 models  Remove the screws A, release the fresh air ducting cover B (figure 3.8). Fig. 3.8  Remove the screws A, release the cover B, and disconnect the fan C (Figure 3.9).
  • Page 27 SAT – Electric Maintenance  Loosen screws A of the lower part and remove screws B of the upper part of the inverter to release it from its location (figure 3.10). Place the inverter with the display facing down to access the radiator, taking care not to stretch the wiring.
  • Page 28 SAT – Electric Maintenance  Clean the radiator using a brush (figure 3.12). Fig. 3.12  To clean the fans, slightly press the A flap (both sides) to open the bracket where they are located (figure 3.13). ATTENTION, NOTE POSITION OF FANS BEFORE DISASSEMBLY.
  • Page 29 SAT – Electric Maintenance  Fit the fan on its bracket.  Fit the cage in the inverter.  Fit the inverter rear protection cover.  Assemble the inverter.  Fit the B cover (figure 3.9).  Fit the fresh air ducting cover. ...

  • Page 30: Inverter Cleaning For Hs-6110, Eh050 Models

    SAT – Electric Maintenance 3.5 Inverter cleaning for HS-6110, EH050 models ATTENTION For a better comfort and to avoid stretching the wiring, we recommend to completely disconnect and disassemble the inverter and to carry out the intervention out of the machine. ...
  • Page 31 SAT – Electric Maintenance  Loosen screw A of the inverter cover. Slightly press the cover downwards and separate it from the inverter (figure 3.17). Fig. 3.17  Remove the wiring guide A and disconnect the inverter wiring (figure 3.18). ATTENTION, NOTE POSITION OF FANS BEFORE DISASSEMBLY.
  • Page 32 SAT – Electric Maintenance  Remove the screws A using a Philips screwdriver (figure 3.20). TO CARRY OUT THIS OPERATION WE RECOMMEND USING A SCREWDRIVER WITH MAGNETIZED TIP. Fig. 3.20  Remove the screws A of the lower part of the inverter (figure 3.21).
  • Page 33 SAT – Electric Maintenance  To clean the fans, slightly press the A flap to open the bracket where they are located (figure 3.23). Fig. 3.23  To disassemble the fans slightly press the bracket flaps using a screwdriver for slotted- head screws (figure 3.24).
  • Page 34 SAT – Electric Maintenance  Replace the fans.  Replace the inverter bracket.  Assemble the rear cover.  Replace the inverter lower grid screws.  Replace the inverter and reconnect the wiring, paying special attention to its correct position (figure 3.26).
