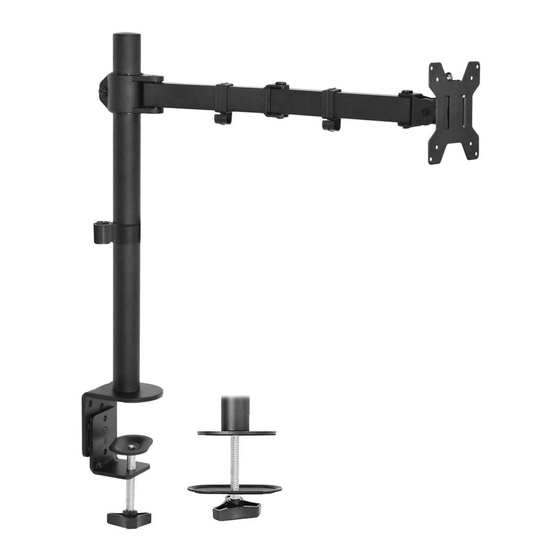

Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V001M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001m
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V001M
Summary of Contents for Vivo STAND-V001M
- Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V001M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001m GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (10kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Attach plastic cap (C) to the top of pole (D). STEP 2 OPTION A: Clamp Installation Stick rubber pads (G) to the underside of clamp (B).
- Page 4 STEP 2 (Continued) OPTION B: Grommet Base Installation For grommet hole mounting, remove screw in top of bolt on clamp (B). Stick rubber pads (G) to bottom of grommet base (F). Attach metal plate (I) to bolt and run through grommet hole into grommet base (F) and thread into pole (D) as shown in diagram.
- Page 5 STEP 4 Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitor, making sure to leave 3mm of threads exposed. Align bolts (M-A, M-B) in VESA plate. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes. Tighten all four bolts using phillips screwdriver.
- Page 6 STEP 5 Adjust tension in monitor bracket with 6mm allen wrench (K) as shown in diagram.
- Page 7 STEP 6 Store allen wrenches (K,J) in cable management clip (E) for future adjustment. Adjust as Desired...
