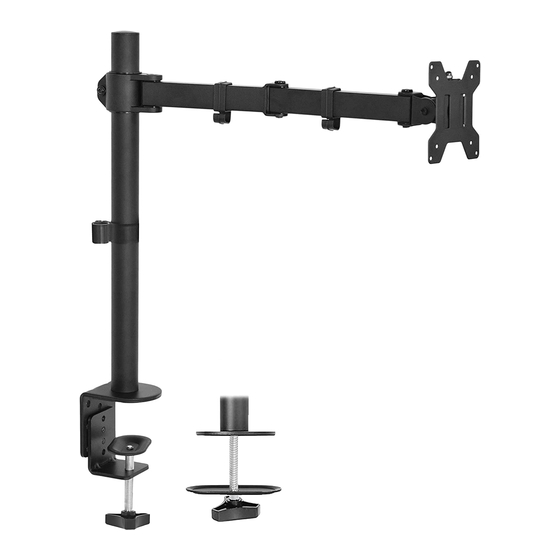

Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V001
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-V001

Summary of Contents for Vivo STAND-V001

  • Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V001 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Desk Clamp Install Install the Clamp (B) to the Pole (A) using M6x16 Screws (G) and tighten using 3mm Allen Wrench (M).
  • Page 4 STEP 1 (Continued) Option B: Grommet Install If desk does not have an existing grommet hole, drill a 3/8” (10mm) diameter hole at the desired position through the mounting surface. Disassemble Clamp (B) into individual parts. Remove Clamp Plate (B1) (You will not need this for Grommet installation) using Phillips screwdriver and remove Knob (B2).
  • Page 5 STEP 2 Slide Pole Cable Clip (L) and Swivel Arm (C) onto Pole (A). Tighten Swivel Arm (C) at desired height using 6mm Allen Wrench (O). Insert Pole Cap (E) into top of Pole (A). STEP 3 Attach Cable Clips (K) onto each segment of Swivel Arm (C).
  • Page 6 STEP 4 OPTION A: Flat Back Monitor Attach the VESA plate (D) to the monitor with Thumbscrews (M-A). NOTE: Hand tighten screws to avoid over tightening. OPTION B: Curved Back Monitor Attach the VESA Plate (D) to the monitor with M4x30 Screws (M-B) and D6 Spacers (M-C). NOTE: Gently tighten using a screwdriver...
  • Page 7 STEP 5 Slide VESA Plate (D) with monitor onto the head of Swivel Arm (C). Install the M6 Security Nut (F). Make sure the security nut is installed before you rotate the monitor. STEP 6 Manage cables in Cable Clips (K) and Pole Cable Clip (L).
  • Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
