Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V001M
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001m
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V001M and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V001M

  • Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V001M Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001m GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Tools Needed

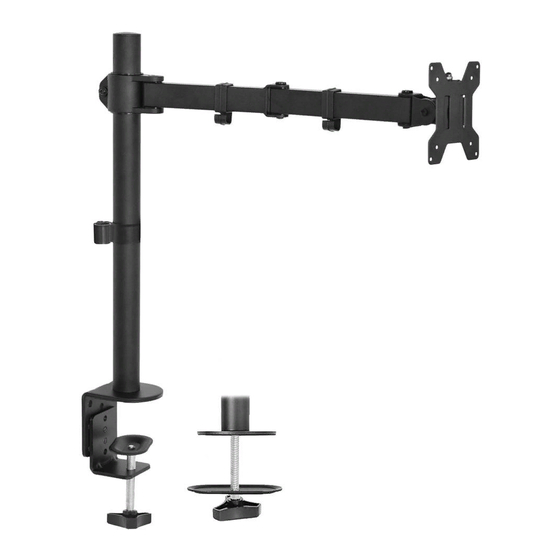

    TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (10kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Insert Pole Cap (F) into Pole (B). STEP 2 (Option A) Clamp Installation Assemble Pole (B) to Clamp (C) using M6x16mm Screws (S-A) and 4mm Allen Wrench (T-A). Remove adhesive backing from Rubber Pads (G) and stick them to the underside of Clamp (C).
  • Page 4 STEP 2 (Option B) Grommet Base Installation Remove screws from the back of Clamp (C) using 4mm Allen Wrench (T-A). Using a Phillips screwdriver, remove the screw from Clamp Bolt (C2) and separate Clamp Bolt (C2) from Clamp (C). Remove adhesive backing from Rubber Pads (G) and stick them to the underside of Grommet Plate (D).
  • Page 5 STEP 4 Attach two Screws (M-A or M-B) and M5 Washers (M-C) to top mounting holes of your monitor, making sure to leave 3mm of threads exposed. Insert Screws (M-A, M-B) into the top slots in the VESA plate on Arm (A). Secure using two more Screws (M-A or M-B) and M5 Washers (M-C) in the bottom two holes and tighten using a Phillips screwdriver.
  • Page 6 STEP 5 Adjust the tension in Arm (A) using 5mm Allen Wrench (T-B) as shown below.
  • Page 7 STEP 6 Store 5mm Allen Wrench (T-B) and 6mm Allen Wrench (T-C) in Cable Clip (H) for future adjustment. STEP 7 Manage cables using the cable management clips on Arm (A) and Cable Clip (H). Adjust the monitor as desired.
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
