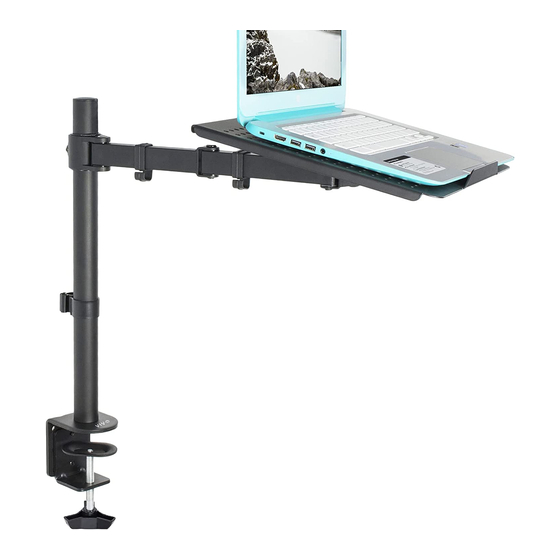

Laptop Tray and Desk Mount
Instruction Manual
SKU: STAND-V001L/LW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001l
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V001L
Summary of Contents for Vivo STAND-V001L
- Page 1 Laptop Tray and Desk Mount Instruction Manual SKU: STAND-V001L/LW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001l GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Option A: Desk Clamp Install Option B: Grommet Install Loosen Clamp Bolt (B1) on Clamp (B). Install Using a Phillips screwdriver, remove the screw Clamp (B) to Pole (A) using M6x16 Screws (S-D) from Clamp (B) and separate Clamp Bolt (B1) and 3mm Allen Wrench (T-A). - Page 4 STEP 2 Slide Pole Cable Clip (I) and Arm (C) over Pole (A). Secure Arm (C) at the desired height using 5mm Allen Wrench (T-B). Insert Pole Cap (J) into the top of Pole (A). STEP 3 Attach Arm Cable Clips (H) to Arm (C).
- Page 5 STEP 4 Assemble VESA Plate (D) to Laptop Tray (E) using M4x8mm Screws (S-A) and M4 Nuts (S-B). Tighten using Wrench (T-C) and a Phillips screwdriver. Slide VESA Plate (D) with Laptop Tray (E) onto Arm (C). Secure the assembly in place using M6 Nut (S-C).
- Page 6 OPTIONAL USE: MONITOR MOUNT To use stand as single monitor mount, follow Steps 1-3, then return to these instructions to proceed. STEP 4 Attach VESA Plate (D) to the back of the monitor using M4x12mm Thumbscrews (M-A) or M4x30mm Screws (M-B) with M4 Spacers (M-C). Slide VESA Plate (D) with the monitor onto Arm (C).
- Page 7 STEP 6 Manage cables using Arm Cable Clips (I) and Pole Cable Clip (I). STEP 7 Adjust the tilt using 5mm Allen Wrench (T-B).
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
