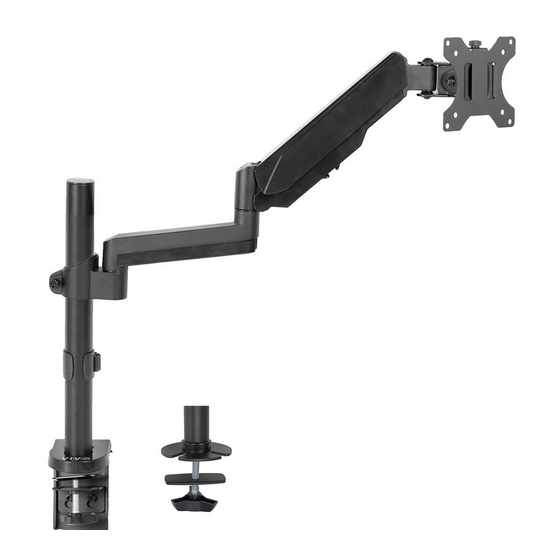

Pneumatic Arm Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V001K
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001k
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V001K
Summary of Contents for Vivo STAND-V001K
- Page 1 Pneumatic Arm Single Monitor Desk Mount Instruction Manual SKU: STAND-V001K Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001k GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (7.98kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Adjust clamp (B) height according to thickness of desktop. Attach clamp cover (C) to clamp (B). Secure pole (E) to clamp (B) using three bolts (H).
- Page 4 STEP 3 Slide cable management clip (F) over top of pole (E). Slide monitor arm (A) over pole and tighten bolt using 6mm Allen key (L). STEP 4 OPTION A: Flat Back Monitor Attach VESA plate (D) to the back of the monitor using bolts (M-A, M-C) and washers (M-E). OPTION B: Curved Back Monitor Attach VESA plate (D) to the back of the monitor using bolts (M-B, M-D), washers (M-E), and spacers (M-F).
- Page 5 STEP 5 Slide VESA plate (D) with monitor over bracket on arm (A). Secure using the thumb screw (G). STEP 6 Remove the bottom cover from arm (A).
- Page 6 STEP 7 Organize cables and re-attach cover. STEP 8 Adjust gas spring support in arm using 6mm Allen key (L). Turning counter-clockwise increases support, and clockwise decreases. Adjust tilt support using 6mm Allen key (L).
- Page 7 Adjust as Desired...
