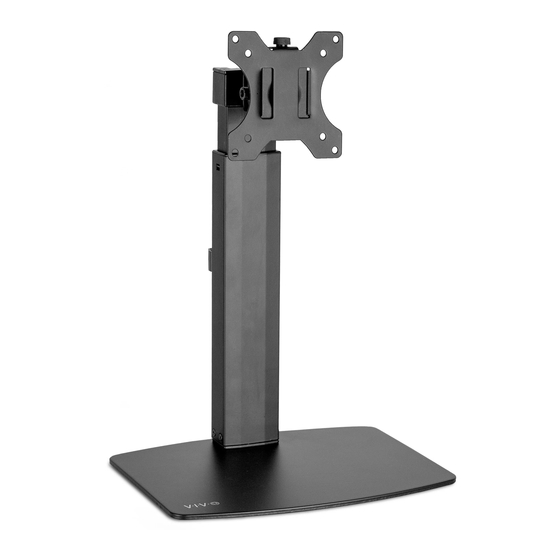

Single Monitor Desk Stand
Instruction Manual
SKU: STAND-V001V
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001v
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V001V
Summary of Contents for Vivo STAND-V001V
- Page 1 Single Monitor Desk Stand Instruction Manual SKU: STAND-V001V Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001v GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 15.4lbs Failure to do so may result in serious injury. (6.99kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Mount telescopic column (A) to base (B) using screws (E). Tighten with 4mm Allen wrench (G). STEP 2 Peel backing from pad (F) and stick in place over screws.
- Page 4 STEP 3 OPTION A: Flat Back Monitor Install VESA plate (C) to monitor using short screws (M-A or M-C) and washers (M-E). OPTION B: Curved Back Monitor Install VESA plate (C) to monitor using screws (M-B or M-D), washers (M-E), and spacers (M-F) if necessary.
- Page 5 STEP 4 Slide monitor with VESA plate onto mounting bracket and secure with thumbscrew (D). STEP 5 Adjust tilt support using 6mm Allen wrench (H).
- Page 6 STEP 6 Manage cables and store tools using pre-installed clip. STEP 7 Remove tape from lever. To raise or lower monitor, pull the lever up and adjust the monitor height.
- Page 7 STEP 8 Press the lever down to lock the monitor height. ±45° +20° ±180° -20°...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
