Vivo STAND-V001O Instruction Manual

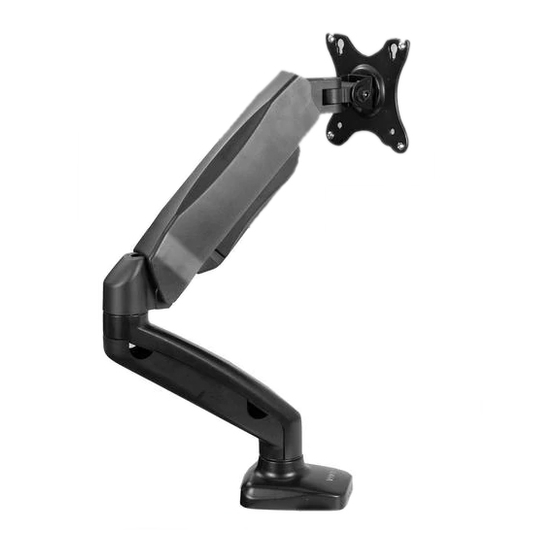

Pneumatic arm single monitor desk mount
Hide thumbs Also See for STAND-V001O:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Pneumatic Arm Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V001O
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001o
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V001O and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-V001O

Summary of Contents for Vivo STAND-V001O

  • Page 1 Pneumatic Arm Single Monitor Desk Mount Instruction Manual SKU: STAND-V001O Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001o GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 - Clamp Installation Remove Plastic Cover (C1) from Base (C). Adjust the hand bolt completely down on Lower Clamp (D). 0.4”-1.90” (10-50mm) DESKTOPS 1.8”-3.1” (45-80mm) DESKTOPS Install Upper Clamp (E) to Base (C) using Install Upper Clamp (E) to Base (C) using M6x8mm Screws (S-A) and 5mm Allen M6x8mm Screws (S-A) and 5mm Allen Wrench (T-A).
  • Page 4 STEP 1 - Grommet If desktop does not have a preexisting grommet hole, use a ⅜” (10mm) drill bit to create one by drilling completely through the desktop. Preexisting Grommet Disassemble Lower Clamp (D) using the Phillips end on 5mm Allen Wrench (T-A) and separate Hand Bolt (D1).
  • Page 5 STEP 3 Attach VESA Plate (G) to Upper Arm (B) using M8x30mm Screw (S-C) and 5mm Allen Wrench (T-A). STEP 4 Install two Screws (M-A or M-B) and M5 Washers (M-C) using the Phillips end of 5mm Allen Wrench (T-A) to the top VESA holes on the monitor leaving at least 3mm of clearance between the screw and monitor.

  • Page 6: Cable Management

    Cable Management Remove plastic covers from Arms (A,B) using Phillips screwdriver end of 5mm Allen Wrench (T-A). Run cables from monitor through bottom of Arms (A,B), then reattach plastic covers. Adjust as Desired Use 5mm Allen Wrench (T-A) to adjust tilt.

  • Page 7: Tension Adjustment

    Tension Adjustment While holding the arm in the horizontal position, adjust the gas spring tension using the 5mm Allen Wrench (T-A). CAUTION: To avoid damage to the monitor or mount, always ensure the arm is in a horizontal position before making adjustments. An additional CAUTION: person may be required to assist in some cases.
  • Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
