Vivo STAND-V001D Instruction Manual

Vivo STAND-V001D Instruction Manual

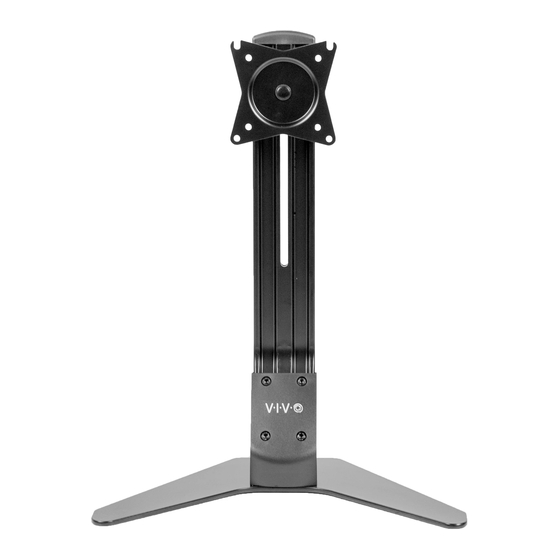

Single monitor desk stand

Advertisement

Quick Links

Single Monitor Desk Stand
Instruction Manual
SKU: STAND-V001D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V001D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo STAND-V001D

  • Page 1 Single Monitor Desk Stand Instruction Manual SKU: STAND-V001D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 Apply Rubber Pads (D) to underside of Base (C). STEP 2 Mount Column (A) to Base (C) using M6x10mm Screws (S-C) and tighten with 4mm Allen Wrench (T-A).
  • Page 4 STEP 3 Attach VESA Plate (B) to Column (A) using Knob (S-A), Metal Washer (S-B), and Plastic Washer (S-E).
  • Page 5 STEP 4 OPTION A: Flat Back Monitor Insert M4x8mm Screws (M-A) or M4x12mm Screws (M-B) into top two holes of monitor, leaving 3mm of thread exposed. Hang monitor over slots in VESA Plate (B), insert screws into bottom two holes, then tighten using a Phillips screwdriver.
  • Page 6 STEP 4 (continued) OPTION B: Curved Back Monitor Insert M4x30mm Screws (M-C) with Spacers (M-D) into top two holes of monitor, leaving 3mm of thread exposed. Hang monitor over slots in VESA Plate (B), insert screws with spacers into bottom two holes, then tighten with a Phillips screwdriver.
  • Page 7 STEP 5 Adjust monitor height by loosening Knob (S-A), then tighten at desired height. Adjust tilt joint using the 5mm Allen Wrench (T-B). NOTE: hold monitor when adjusting height.
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
