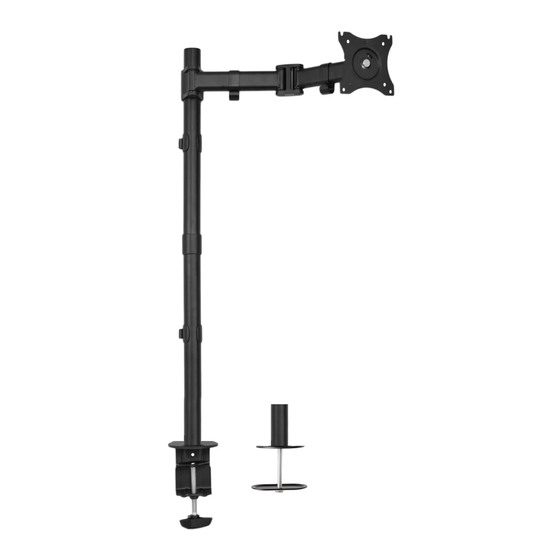

Single Monitor Extra Tall Desk Mount
Instruction Manual
SKU: STAND-V001T
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001t
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V001T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-V001T

Summary of Contents for Vivo STAND-V001T

  • Page 1 Single Monitor Extra Tall Desk Mount Instruction Manual SKU: STAND-V001T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001t GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (10kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Install Clamp (D) to Bottom Pole (B) using M6x16mm Screws (S-A) and tighten using 3mm Allen Wrench (T-A).
  • Page 4 STEP 1 (Continued) OPTION B: Grommet Hole Installation Place Bottom Pole (B) ontop of Grommet Plate (E). Secure to the desktop using Knob (D2) and Support Plate (J). STEP 2 Slide Cable Clips (G) onto Bottom Pole (B) and Top Pole (C). Use the Pole Connector (F) to attach Top Pole (C) to Bottom Pole (B).
  • Page 5 STEP 3 Loosen the screw on the back of Arm (A) using 5mm Allen Wrench (T-C). Slide Arm (A) over the top of Top Pole (C). Retighten the screw on Arm (A) using the 5mm Allen Wrench (T-C). STEP 4 Install Screws (M-A or M-B) and M5 Washers (M-C) to the top mounting holes of your monitor, making sure to leave 3mm of threads exposed.
  • Page 6 STEP 5 Adjust the tension in the monitor bracket with 6mm Allen Wrench (T-D) as shown in diagram. STEP 6 Store Allen Wrenches (T-C, T-D) in Cable Clip (G) for future adjustment.
  • Page 7 Adjust as Desired...
  • Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
