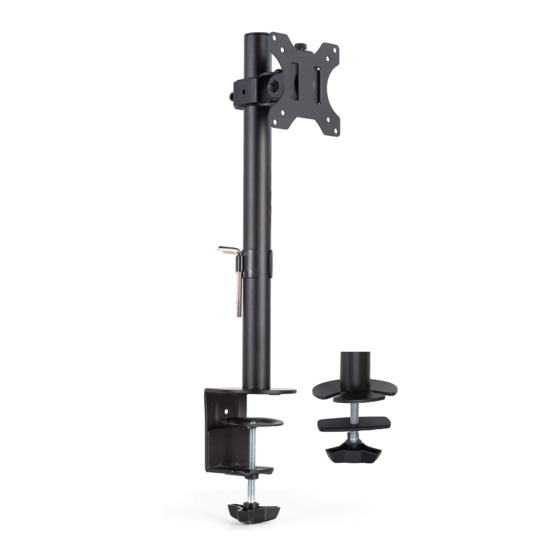

Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V001C/CW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v001c
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V001C
Summary of Contents for Vivo STAND-V001C
- Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V001C/CW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v001c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
-
Page 3: Package Contents
PACKAGE CONTENTS A (x1) B (x1) C (x1) D (x1) E (x1) VESA Plate Bracket Clamp Pole Pole Cap F (x1) G (x1) H (x5) I (x1) Cable Clip Grommet Base Support Plate S-A (x3) S-B (x1) M-A (x4) M-B (x4) M-C (x4) M6x16mm Thumbscrew... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Attach Pole Cap (E) to top of Pole (D). STEP 2 OPTION A: Desk Clamp Installation Assemble Pole (D) to Clamp (C) with M6x16mm Screws (S-A) using 4mm Allen Wrench (T-A). Attach Pads (H) to inside of Clamp. Secure to desktop. Proceed to Step 3 on page 6... - Page 5 STEP 2 - Continued OPTION B: Grommet Base Installation Remove Clamp Screw (C1) and disassemble Clamp (C). Set aside Hand Bolt (C2). Attach Pads (H) to underside of Grommet Base (G). Note that the bottom of Grommet Base is the side without a pin.
- Page 6 STEP 3 Slide Cable Clip (F) and Bracket (B) onto Pole (D). Secure by tightening the side bolt using 6mm Allen Wrench (T-B).
- Page 7 STEP 4 (Continued) OPTION A: Flat Back Monitor Attach VESA Plate (A) to flat back monitors using appropriate Screws (M-A or M-C), M5 Washers (M-E) and a Phillips screwdriver. OPTION B: Recessed Back Monitor Attach VESA Plate (A) to recessed back monitor using appropriate Screws (M-B or M-D), M5 Washers (M-E), Spacers (M-F), and a Phillips screwdriver.
- Page 8 STEP 5 Slide the monitor onto the head of Bracket (B). Attach Thumb Screw (S-B). Make sure the screw is attached before you rotate the monitor.
- Page 9 STEP 6 If needed, adjust the bolt on the side of the hinge behind the VESA plate to tighten or loosen the tilt angle using the 6mm Allen Wrench (T-B).
- Page 10 STEP 7 Manage the cables using Cable Clip (F). Allen Wrenches (T-A, T-B) in Cable Clip (F) for future adjustements.
- Page 11 Adjust as Desired 180° 90° +45° 360° -45°...
- Page 12 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
