2. Fit the mounting clips on the side of the housing and tighten the set screws.
Tightening screw torque: 0.4 to 0.6 Nm
4.3.2 Field housing (LPM1-A-ENC and LPM1-A-HAZ)

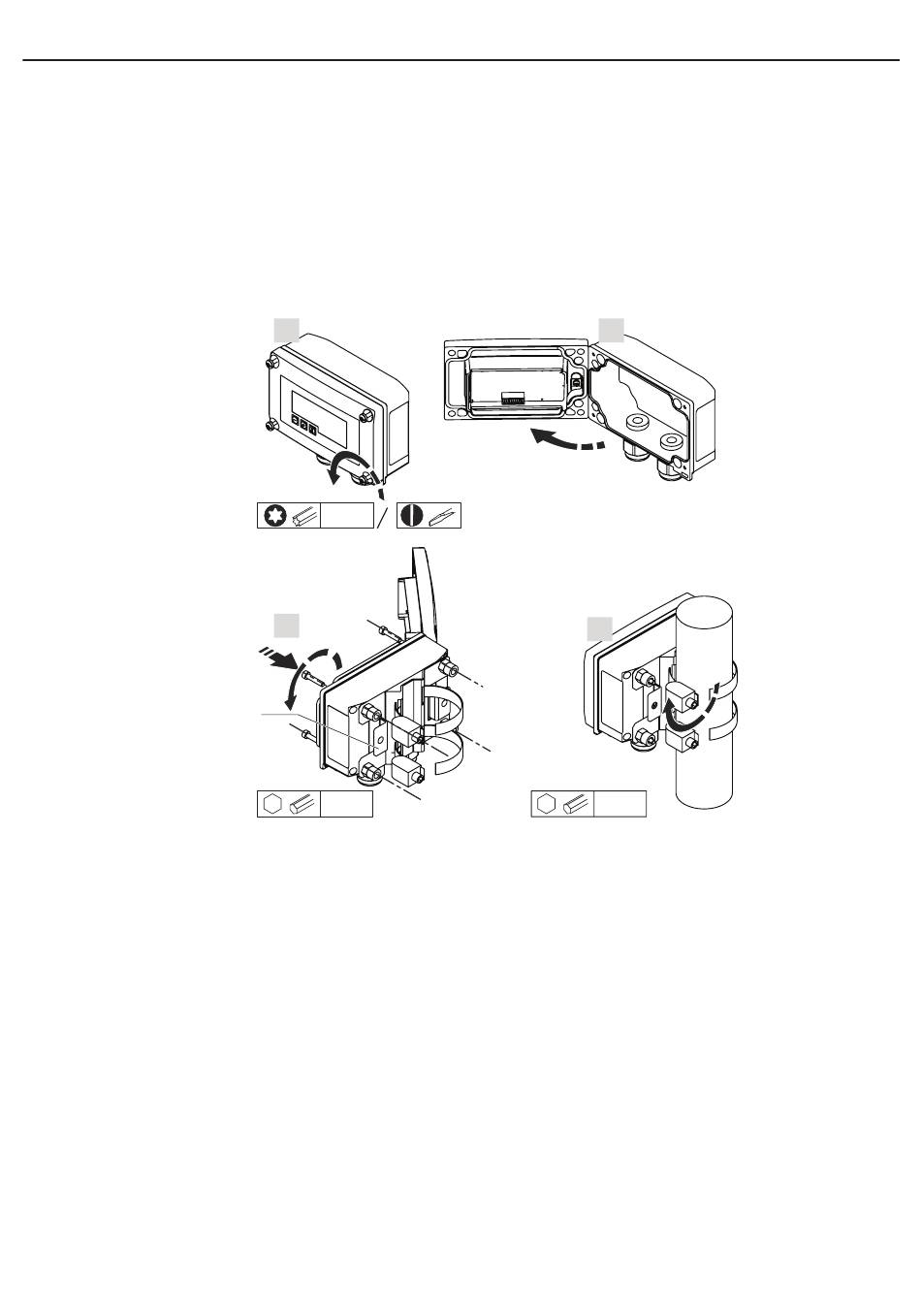

Pipe mounting (with optional LPM1-BKT mounting kit)
The device can be mounted on a pipe with a diameter of up to 50.8 mm (2 in)
with the mounting kit (sold separately).
Mounting plate for
pipe/wall mounting
1. Release the 4 housing screws.
2. Open the housing
3. Secure the mounting plate to the rear of the device with 4 screws supplied.
4. Guide the two gripper clamps through the mounting plate, fit them around
the pipe and tighten.
1.
TX20
3.
4mm
Operating Instructions - ProSense LPM1 Series Meter
2.
4.
5mm
