Operating Instructions - ProSense LPM1 Series Meter

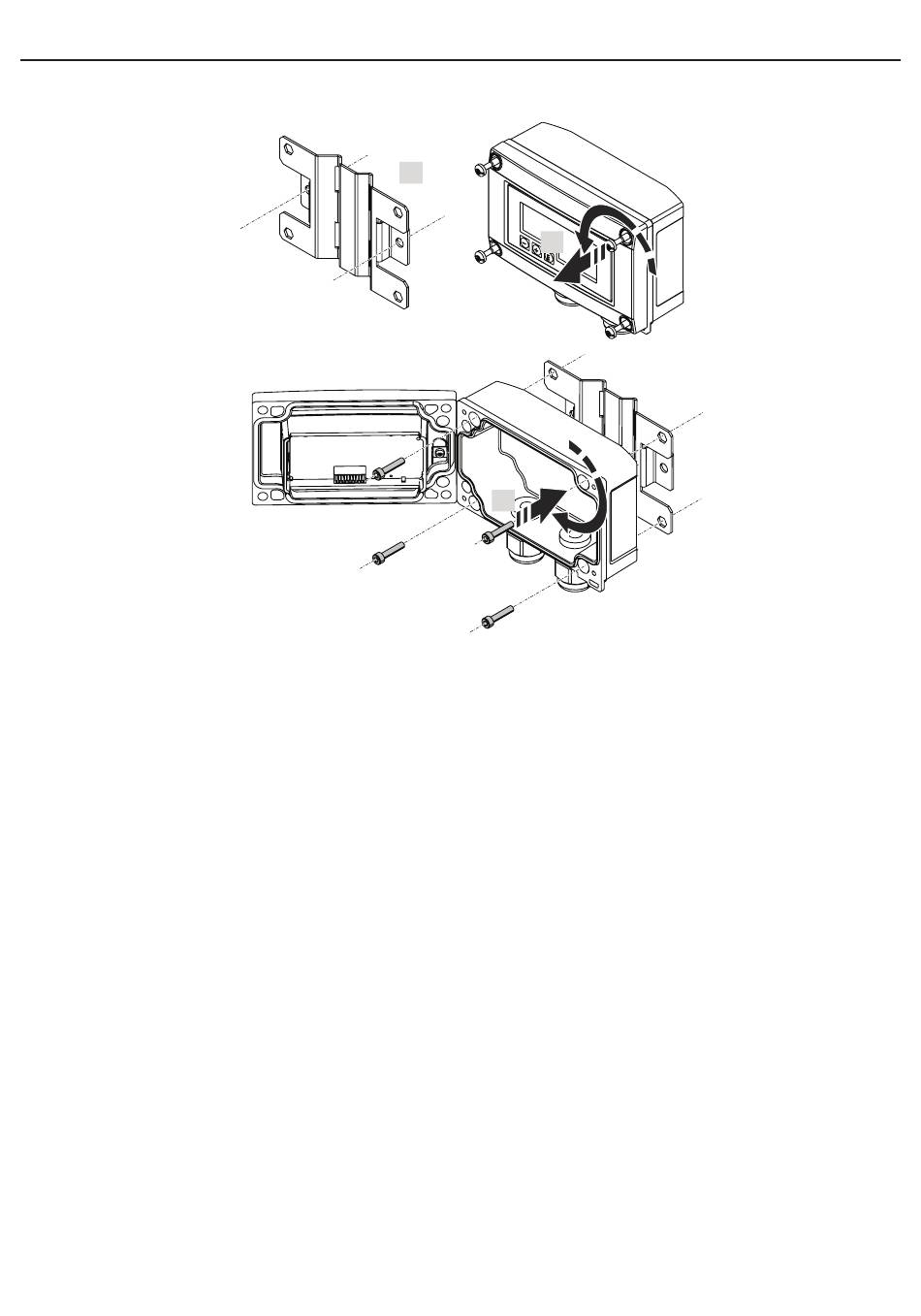

Wall mounting (with optional LPM1-BKT mounting kit)
1. Use the mounting plate as a stencil and make two 6mm (0.24 in) bore
holes, 82mm (3.23 in) apart. Secure the plate on the wall with 2 screws
(not supplied).
2. Open the housing.
3. Secure the display unit on the mounting plate with the 4 screws
supplied.
4. Close the cover and tighten the screws.
Without a mounting kit.
1. Open the housing.
2. Use the device as a stencil, four 6 mm (0.24 in) bore holes, 99 mm (3.9
in) apart on the horizontal plane, 66 mm (2.6 in) apart on the vertical
plane.
3. Secure the display unit on the wall with 4 screws.
4. Close the cover and tighten the housing screws.
