5.5 Post-connection check

Device condition and specifications
Are cables or the device damaged?
Electrical connection
Does the supply current match the specifications on the nameplate?
Are the cables, incl. functional grounding, connected correctly and strain-relieved?
Field housing (LPM1-A-ENC and LPM1-A-HAZ): Are the cable glands securely closed?

6 Operation

1
2
3
4

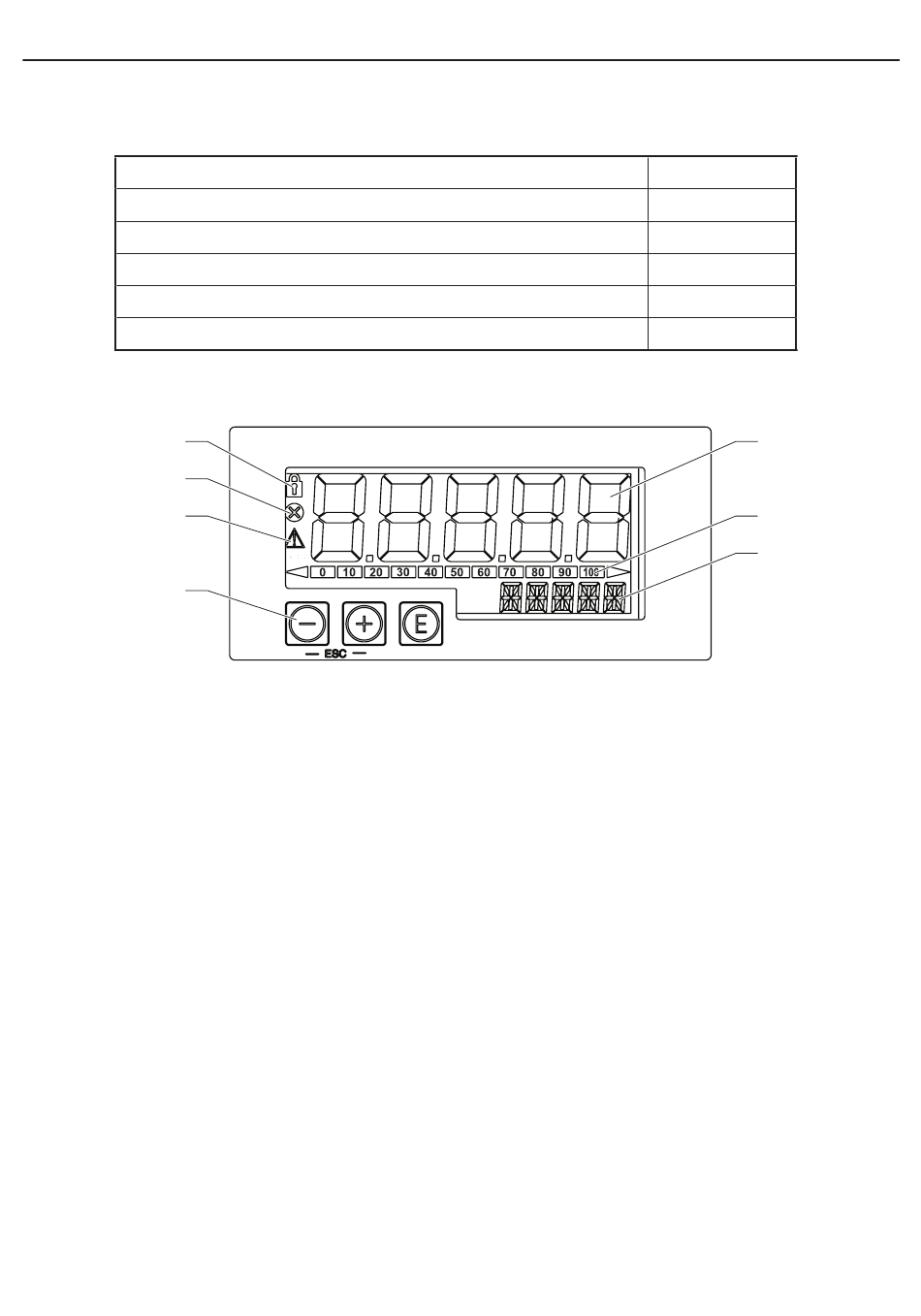

Display and operating elements of the process display unit
1. Symbol: operating menu disabled
2. Symbol: error
3. Symbol: warning
4. Operating keys "-", "+", "E"
5. 14-segment display for unit/TAG
6. Bar graph with indicators for under range and over range
7. 5-digit 7-segment display for measured value, digit height 17 mm (0.67 in)
The device is operated using three operating keys on the front of the
housing. The device setup can be disabled with a 4-digit user code. If
the setup is disabled, a padlock symbol appears on the display when an
operating parameter is selected.
Operating Instructions - ProSense LPM1 Series Meter
Notes
Visual inspection
Notes
-
-
-
LPM1 Series Meter Rev. 1
