• Pack the device so that it is protected against impact for storage and
transport. The original packaging provides optimum protection.
• The permitted storage temperature is –40 to +85 °C (–40 to +185 °F);
it is possible to store the device at borderline temperatures for a limited
period (48 hours maximum).

4.2 Installation conditions

At temperatures below –25 °C (–13 °F) the readability of the display
can no longer be guaranteed.
4.2.1 Display unit in the panel-mount housing
Permitted ambient temperature range –40 to 60 °C (–40 to 140 °F),
horizontal orientation. IP65 protection at front, IP20 at rear
See "Technical data" section.
4.2.2 Display unit in the field housing
Permitted ambient temperature range –40 to 60 °C (–40 to 140 °F). IP67
protection, NEMA 4x (aluminum housing).
See "Technical data" section.
4.3 Installation instructions
For the dimensions of the device, see "Technical data section"
4.3.1 Panel housing (LPM1-A-PNL)
Installation in a panel with a panel cutout 92x45 mm (3.62x1.77 in), max.
panel thickness 13 mm (0.51 in).

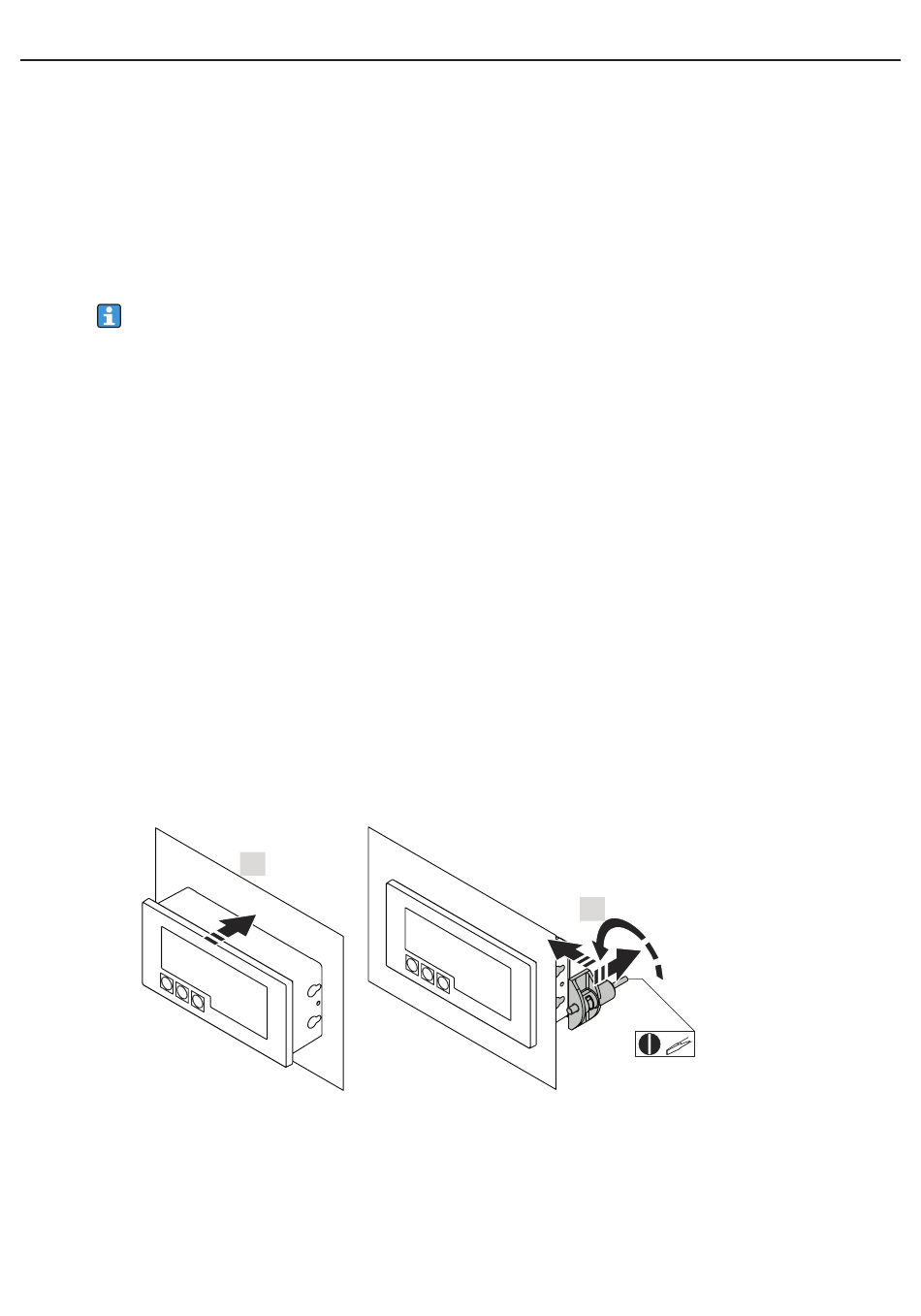

1. Insert the device into the panel cutout from the front.
8
LPM1 Series Meter Rev. 1
71487579
1.
2.
