Operating Instructions - ProSense LPM1 Series Meter

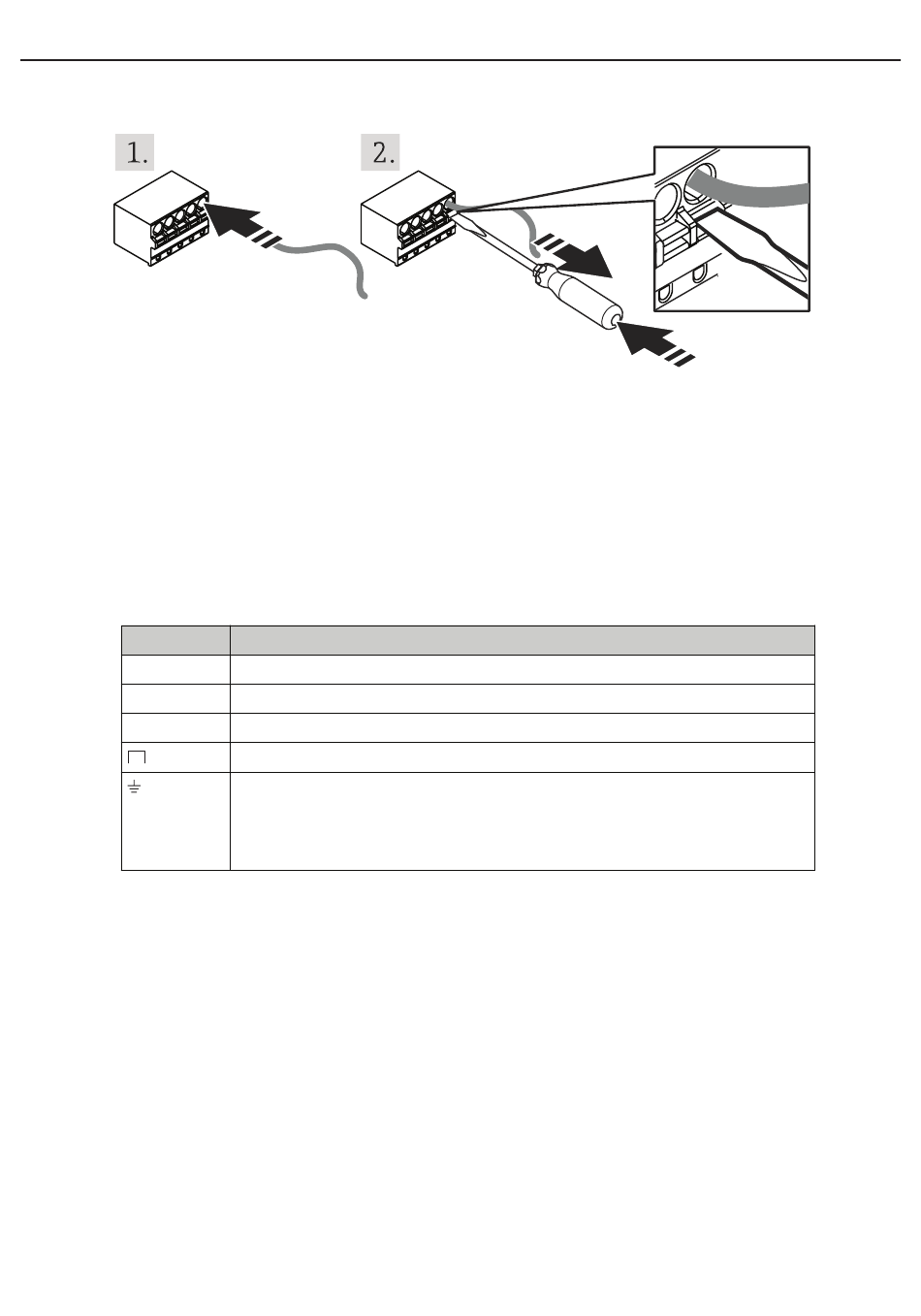

Operation of the spring terminals
1. When using rigid cables with a ferrule, just plug the cable into the
terminal. No tools required. With flexible wires the spring mechanism of
the terminal must be operated as shown in step 2.
2. In order to loosen the cable, push the spring mechanism in completely
using a screwdriver or other suitable tool and pull out the cable.

5.1 Quick wiring guide

Terminal
+
-
LED
12
LPM1 Series Meter Rev. 1
71487579
Description
Positive connection, current measurement
Negative connection, current measurement (without backlighting)
Negative connection, current measurement (with backlighting)
Auxiliary terminals (electrically connected internally)
Functional grounding:
• Panel-mounted device:
Terminal on the rear of the housing
• Field device:
Terminal in the housing
