Vivo STAND-V012 Series Assembly Manual

Vivo STAND-V012 Series Assembly Manual

Dual monitor extra tall desk mount
Hide thumbs Also See for STAND-V012 Series:

Advertisement

Quick Links

Download this manual
Dual Monitor Extra Tall
Desk Mount
STAND-V012 Series
Assembly Manual
Individual Product SKUs
STAND-V012
STAND-V012W

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V012 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo STAND-V012 Series

Summary of Contents for Vivo STAND-V012 Series

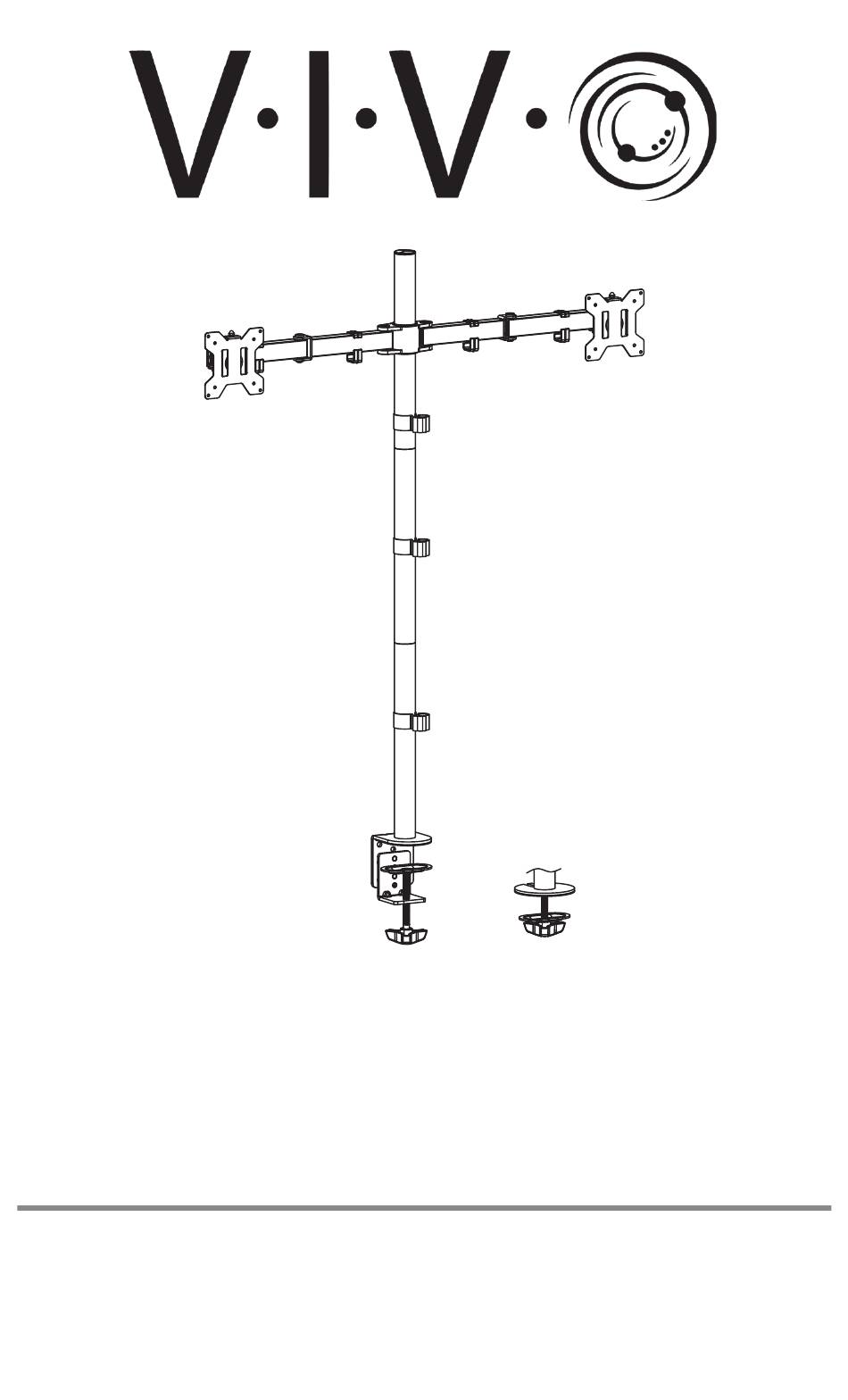

  • Page 1 Dual Monitor Extra Tall Desk Mount STAND-V012 Series Assembly Manual Individual Product SKUs STAND-V012 STAND-V012W...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3 Package Contents A (x1) B (x1) C (x1) Lower Pole Middle Pole Upper Pole D (x1) E (x1) F (x2) Clamp VESA Plate G (x1) H (x1) I (x1) J (x3) Pole Cover Grommet Plate Soft Pad Pole Cable Clip K (x4) Arm Cable Clip Included Hardware &...

  • Page 4: Assembly Steps

    Assembly Steps STEP 1 Fully loosen the Knob (D1) on Clamp (D). STEP 2 Option 1: Clamp Installation For Grommet Installation, proceed to Page 6 Using a Phillips screwdriver, remove the screw from Clamp (D) and disassemble. Insert Knob (D1) into Support Plate (D2).
  • Page 5 Option 1 - Cont’d Connect Clamp (D) to Lower Pole (A) using M6x16mm Screws (S-A) and 3mm Allen Wrench (T-A). Which One is the Lower Pole? To differentiate Lower Pole (A) & Upper Pole (C), match the hole pattern to images below. Holes on the Lower Poles are spaced closer together than Upper Pole.
  • Page 6 Option 2: Grommet Installation Connect Grommet Plate (H) to Bottom Pole (A) using M6x16mm Screws (S-A) and 3mm Allen Wrench (T-A). Remove adhesive backing from Soft Pad (I) and adhere to Grommet Plate. Place the pole assembly over grommet hole in desk, and connect using Support Plate (D2) and Knob (D1) from underneath desk as shown.
  • Page 7 STEP 3 Thread Middle Pole (B) onto Lower Pole (A) and Upper Pole (C) onto Middle Pole. STEP 4 Slide Pole Cable Clips (J) and Arm (E) onto the pole and secure by tightening the side screw using 5mm Allen Wrench (T-B). Insert Pole Cap (G) into Upper Pole (C) and attach Arm Cable Clips (K) to the Arm.
  • Page 8 STEP 5 Attach VESA Plates (F) to the back of monitors using the appropriate Screws (M-A, M-B) and a Phillips screwdriver. Spacers (M-C) can be used if your monitor’s VESA pattern is recessed. Ensure the Lip on VESA Plate is on the top.

  • Page 9: Tilt Adjustment

    STEP 6 Manage cables using Pole Cable Clips (J) and Arm Cable Clips (K). Tilt Adjustment To adjust the tilt, loosen the side screw behind the monitor using 5mm Allen Wrench (T-B). Adjust as desired and re-tighten the screw.
  • Page 10 Vertical Fine Tuning To align the monitors, remove the M6 Security Nut (S-B). Use 3mm Allen Wrench (T-A) to adjust the security screw. Replace the M6 Security Nut once complete.
  • Page 11 Adjust as Desired Swing and rotate as desired.
  • Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
