3.2.2.2 Procedure for Writing Image Data into Flash Memory

This section describes the image data writing procedure to the M25P16 (SPI flash ROM) for the demo

using the ATM0430D5 (4.3 inch, 480x272 dots, 24 bit full color TFT LCD panel from XIAMEN

ZETTLER).

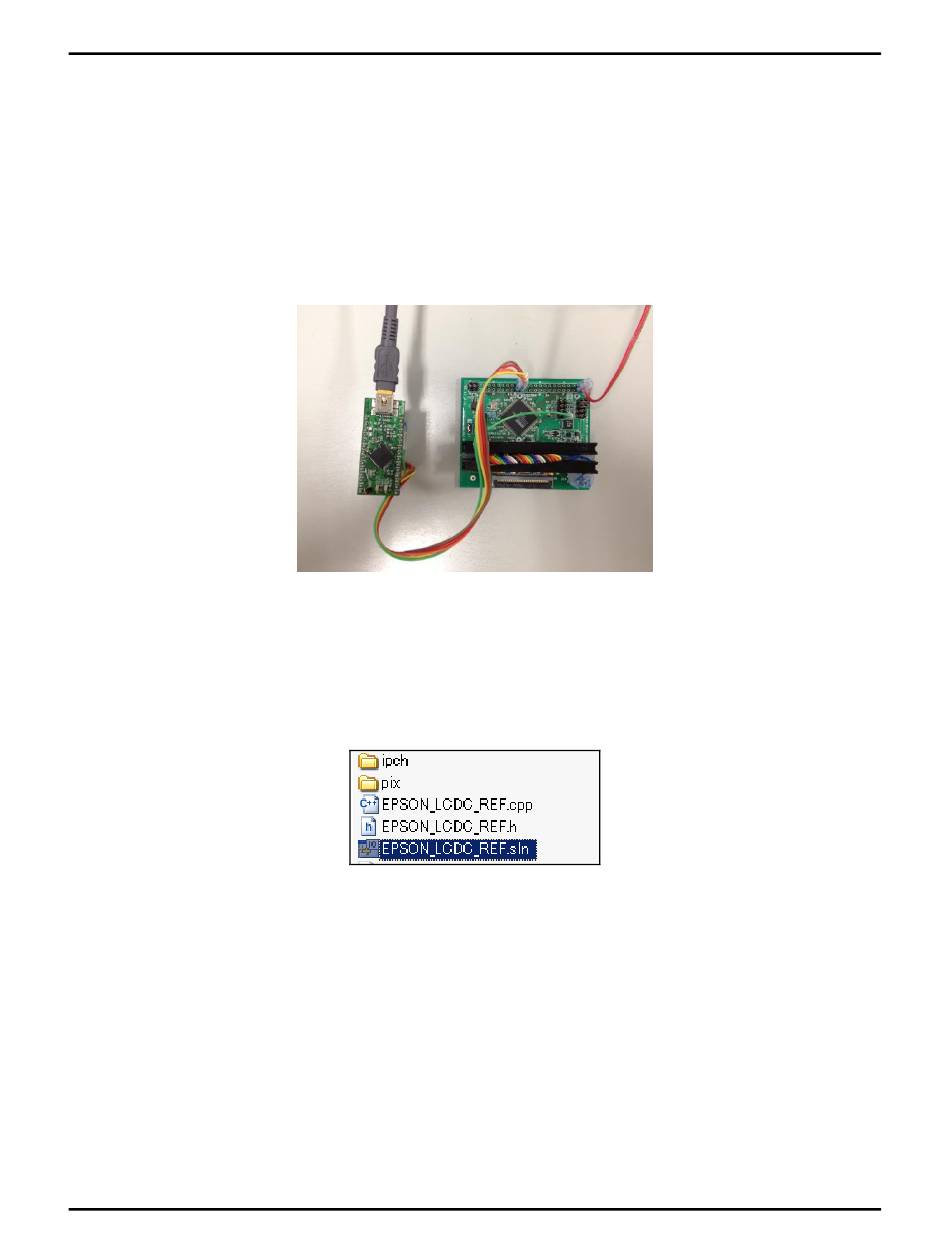

To start, connect the S5U13781R00C100 reference board to the UM232H via SPI, and connect the

UM232H to the PC via USB.

See Section 3.2.2.1, Connection with UM232H (Control S1D13781 via SPI), for connection information.

Unzip and apply the UM232H driver prepared in Section 2.1, Instruction for Tool Download and Install.

Note: the S5U13781R00C100 requires an external power supply.

Launch the project file for Visual C++ 2010 Express.

Double click the "EPSON_LCDC_REF.sln" icon in the project folder for writing M25P16: "flash_psp"

which is prepared at 2-3-(2): "Preparation for writing data into flash memory".

S5U13781R00C100 Demonstration Manual

(Rev. 2.1)
