I-Tech PHYSIO 4 User Manual page 68

M01/M02 • Denervated 1/2 (medical programs)
Cable type: TYPE 1 (see Figure 1 - Cable type.) active channels CH1 and
CH3
Stimulation programs of the denervated muscle.
Electrodes' positioning: use 2 big electrodes, better if wet and in a sponge,
placed at the two ends of the muscle to be treated.

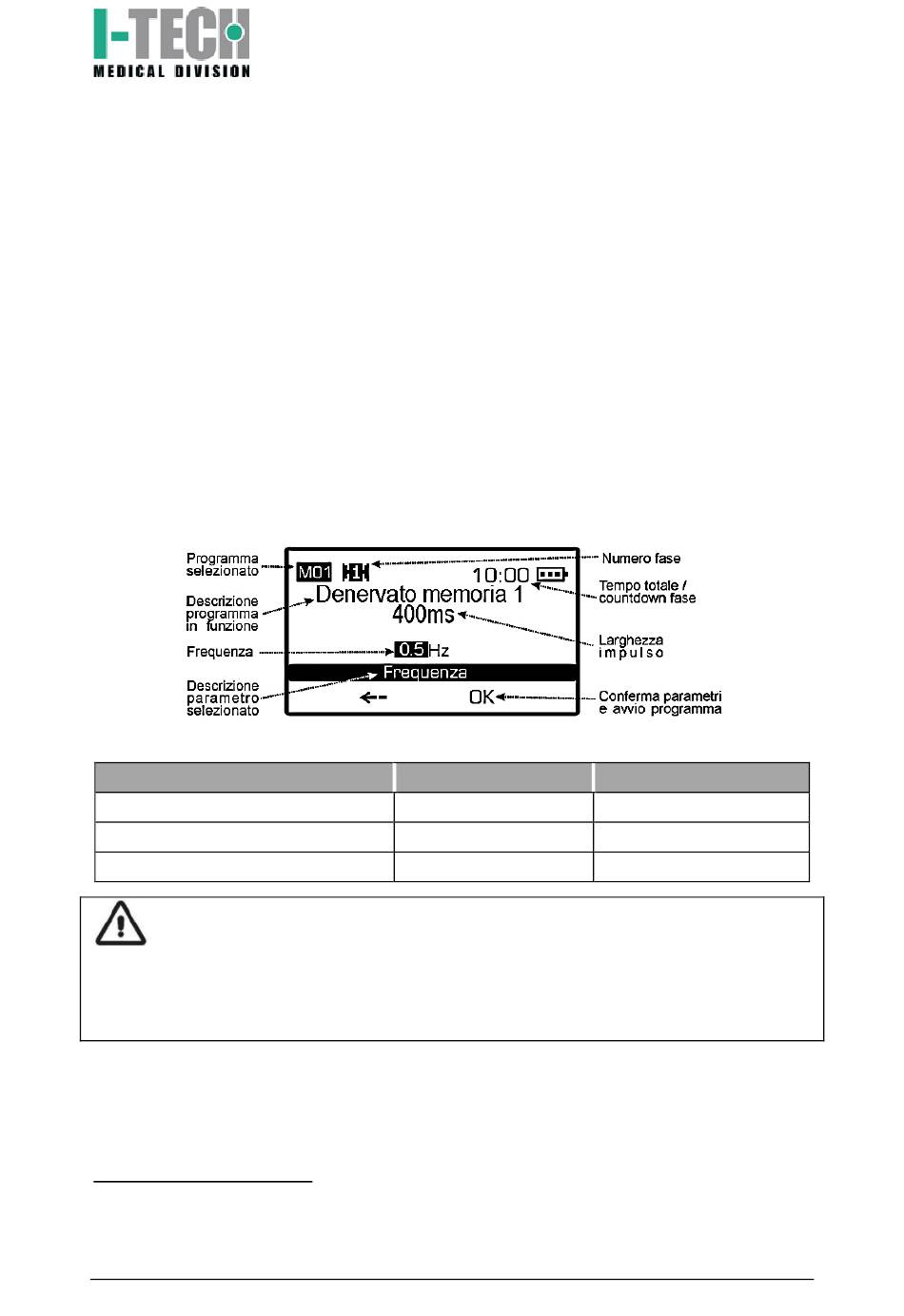

− To move the cursor and select the stimulation parameter, use the
right and left arrow keys, change the values with the up and down
arrow keys.
Once all the stimulation parameters have been set, position the
−
cursor on "OK" to memorize the program.
To start the stored program, press the OK button.
−
− The end of the program is signaled with a triple acoustic signal.
With pulses greater than 100ms, set maximum frequency to 1 Hz.
−
Table of settable values:
Parameter Description
Frequency
Impulse width
Program total time
ATTENTION: In the case of programs M01 and M02, we recommend
the use of rectangular electrodes (measuring 50x90 mm) for stimulation at
medium-high intensity. With smaller electrodes, the device could generate
an alarm and, therefore, not perform the treatment correctly.
M03/M04/M05/M06 • TENS memory 3/4/5/6 (medical programs)
Cable type: TYPE 1 (see Figure 1 - Cable type.)
Available programs to set rapid tens, endorphinic tens, maximum values
Electrodes' positioning: forming a square above the area to be treated as
Figure 2.
IACER Srl
Minimum
0,25 Hertz
40 milliseconds
1 minute
64
Maximum
2 Hertz
400 milliseconds
60 minutes
MNPG178
