5. Electrical connection
5.1. Connecting the components

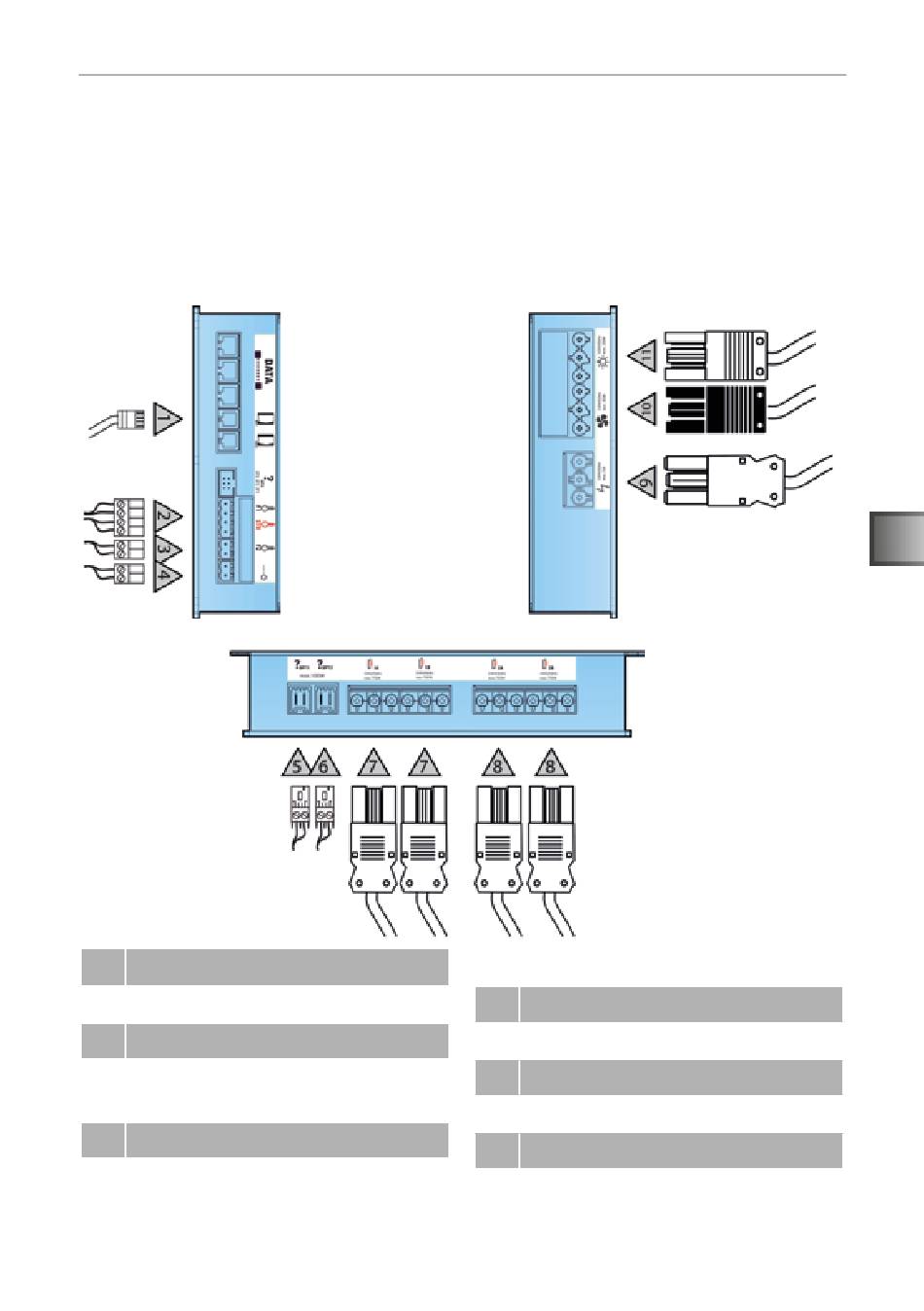

Connect all the components to the wave.com4 Infra as illustrated below: Work
on the infrared controller may only be performed when the power has been
disconnected.
1
Control units, RJ10
2
Temperature sensor and STB
3
Foil sensor
Remote start contact,
4
potential-free
5
Optional Relay switching output
Fig. 5: Connecting the components
6
Optional Relay switching output
7
IR heating group 1, max. 1500 W
8
IR heating group 2, max. 1500 W
9
Mains connection
10 Fan connection
11 Light connection
