Instructions for installation and use
The plugs for sentiotec radiators and heat plates are fitted at the factory. The plugs
for connecting other heating elements, the cabin lighting and the fan are not
included. These plugs are available without cables as accessories (item no:
WC4-P-Set).
To connect several heating elements to one socket, junctions (IR-1P2, IR-1P3,
IR-1P5) and a connecting cable to the junction (WC4-GST-C05) are available.

5.2. Configuring radiators / heat plates or foil

NOTE
When delivered, the wave.com4 Infra controller is configured for opera-
tion with infrared radiators.
To use the device for infrared heat plates or foils, the power unit must be re-
configured:
?

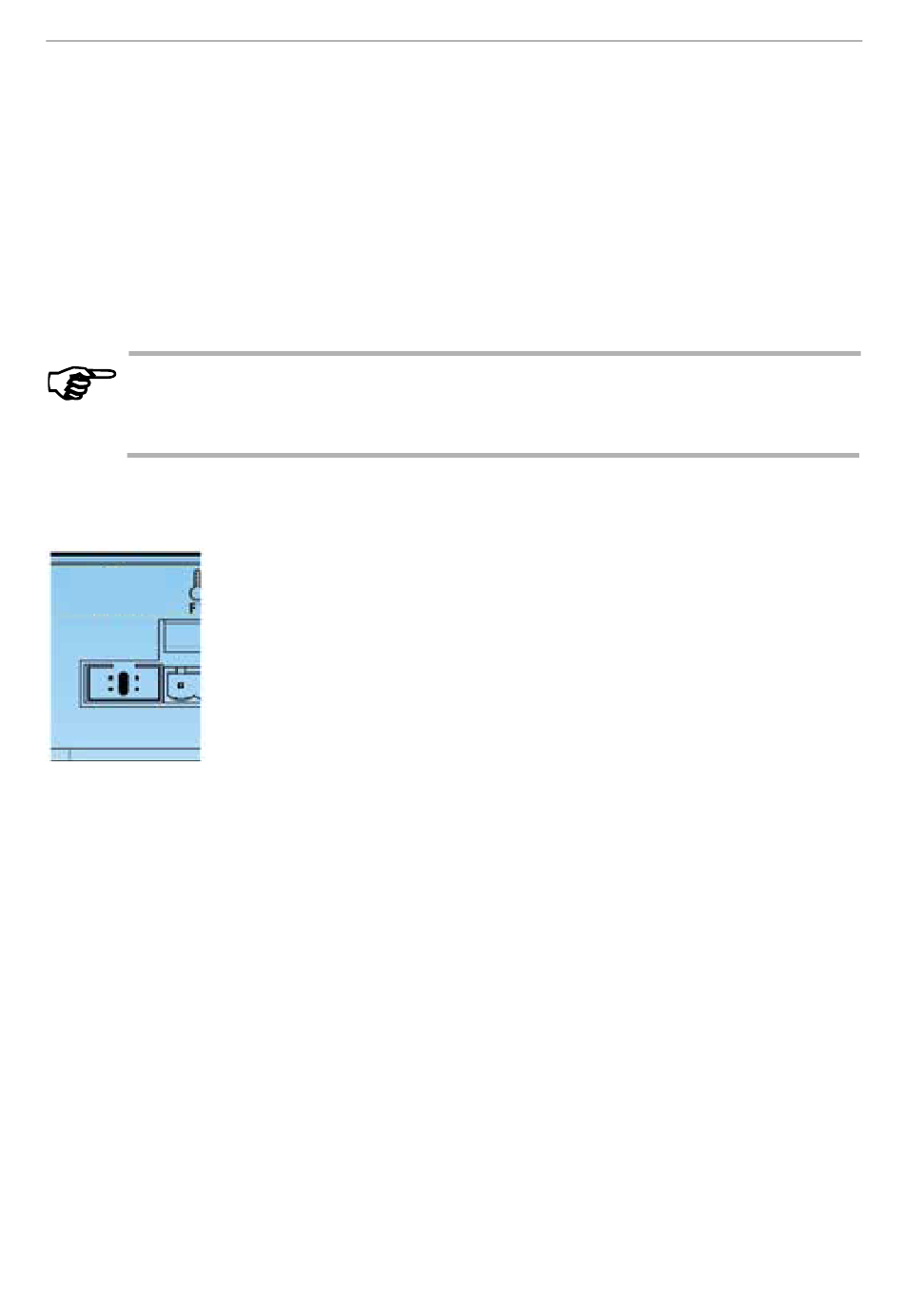

OPT3
JP3 JP2 JP1
Fig. 6: Jumper JP2

5.3. Configuring an additional control unit

If an additional control unit is connected, the bus address (default=0) of this control
unit must be changed (up to 4 control units can be connected using a Y-junction)
1. De-energise the controller for 10 seconds and then restart it.
2. Unplug the data cable of the second control unit.
3. Press and hold both the Plus and Minus buttons on the new control unit
while plugging the data cable back in.
4. The display flashes "0", press the Plus button to set it to "1" and confirm
with the Mode key -> the control unit switches on.
5. Now de-energise the controller again for 10 seconds.
To activate foil operation, plug the jumper JP2 into the box
head socket board "OPT3" (see Fig. 6)
p. 14/26
