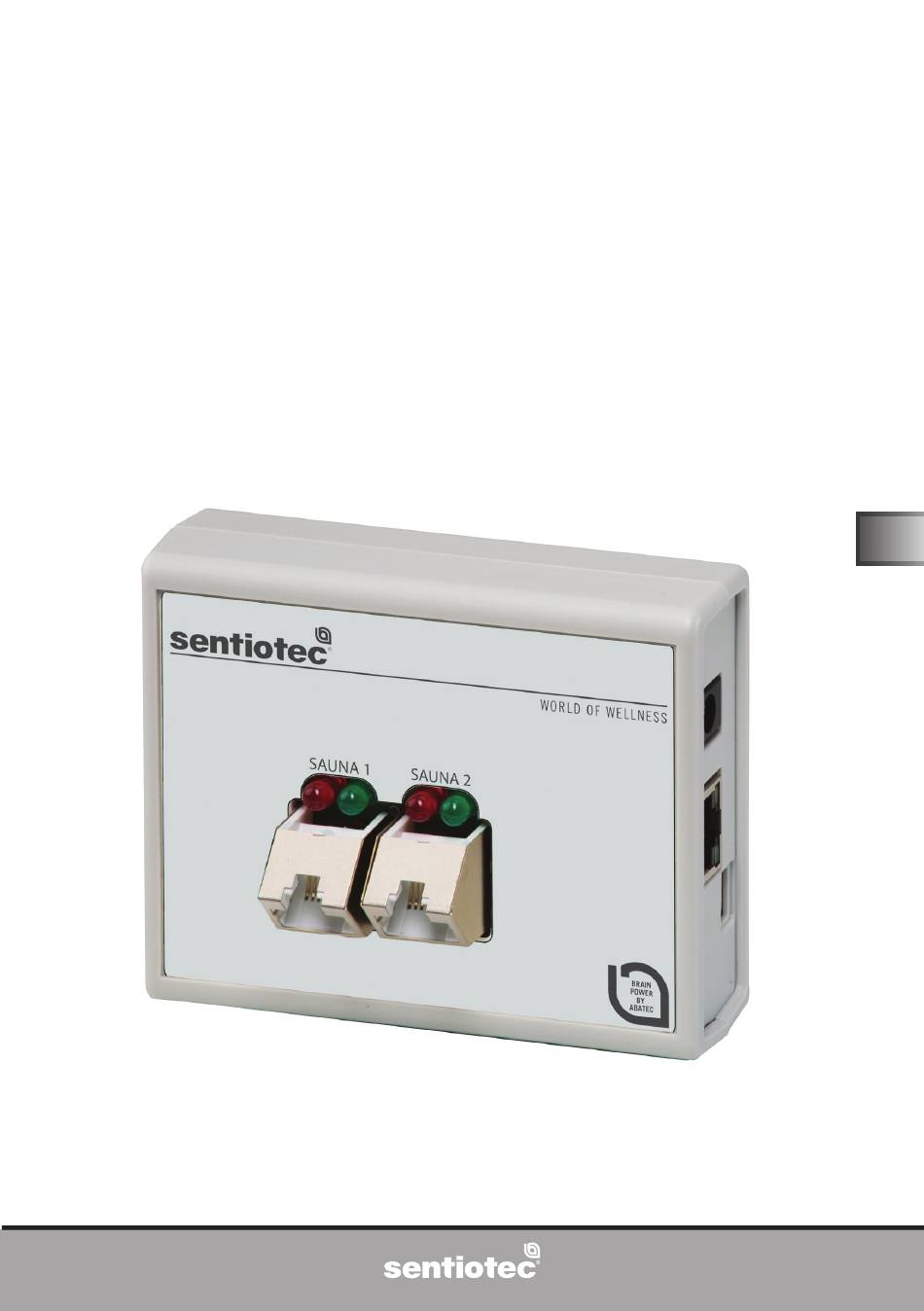

  • Page 1 PRONET WEB SERVER INSTRUCTIONS FOR INSTALLATION AND USE English Version 01/15 Ident no. 50950129...

  • Page 2: Table Of Contents

    Table of Contents 1. About these instructions 2. Important information for your safety 2.1. Intended use 2.2. Safety information 2.3. Legal information 3. Product description 3.1. Scope of delivery 3.2. Product functions 4. Connection diagram 5. Starting up for the first time 5.1.

  • Page 3: About These Instructions

    1. About these instructions Read these instructions for installation and use carefully, and keep them within reach of the pronet web server. This ensures you can refer to information about safety and operation at any time. These installation and operating instructions can also be found in the downloads section of our website: www.sentiotec.com/downloads.

  • Page 4: Important Information For Your Safety

    Internet (web). Up to 2 sauna control units can be connected to the web server. The pronet web server may only be used for operating and regulat- ing a sauna heater that passes the combustion test described in paragraph 19.101 of EN 60335-2-53. Alternatively, a suitable safety shut-off device can be installed in or above the heater.

  • Page 5: Legal Information

    2.3. Legal information ● The company sentiotec GmbH reserves the right to charge fees or to discontinue the service offered at any time without stating reasons. sentiotec GmbH cannot guarantee that the service is compatible with the user’s technical equipment.

  • Page 6: Product Description

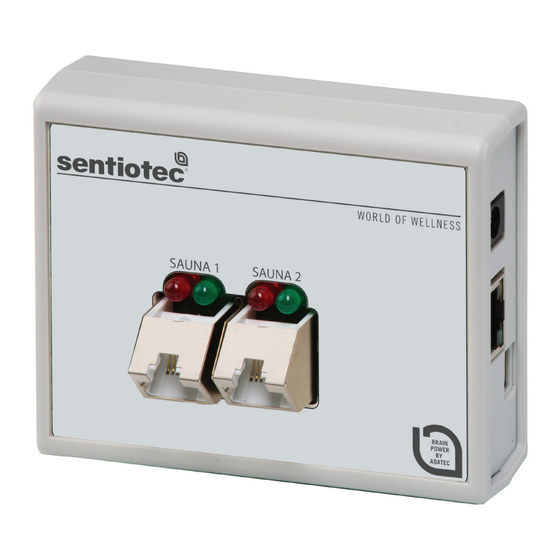

    ● Instructions for installation and use 3.2. Product functions The pronet web server allows all the available sauna functions to be operated using devices such as a PC, smartphone, tablet, etc. This is done using either a local network (LAN, WLAN) or over the Internet (web). Up to 2 sauna control units can be connected to the web server.

  • Page 7: Connection Diagram

    Instructions for installation and use p. 7/20 4. Connection diagram Observe the following points when connecting the power to the sauna control unit: ● Work on the sauna control unit may only be performed when the power has been disconnected. Fig.
  • Page 8 Instructions for installation and use p. 8/20 Fig. 2: Function RS485 ETHERNET RJ45 socket Setting up a connection (Fig. 1: Connections on page 7) ● Connect your sauna control unit to the web server (connection 1 or 2). ► Use the network cables included with the delivery for connection. ●...

  • Page 9: Starting Up For The First Time

    Instructions for installation and use p. 9/20 5. Starting up for the fi rst time Once all cables have been connected, the web server can be started up. 2 options are available: ● Operation in a local network (WLAN/LAN) – WLAN: See 5.1. Setting up a new local WLAN network on page 10 –...

  • Page 10: Setting Up A New Local Wlan Network

    You can use any standard, commercially available WLAN router with an Ethernet connection to set up a new local WLAN network. The pronet web server is con- nected directly to the WLAN router, and is therefore registered in the network as a separate device with a specific IP address.

  • Page 11: Integration Into An Existing Local Area Network (Lan)

    The standard settings are: User: sauna Password: sentiotec ► If the network address of your network is different from the IP ad- dress of the web server, you can change the IP address of the web server manually. To do so, proceed as follows: 1.

  • Page 12: Setting Up Web Access

    The next step involves entering the serial number of your web server and the password for the server. By default, the password for the server is sentiotec. ► The serial number can be found on the device sticker applied to the rear of the web server.

  • Page 13: Operation

    Instructions for installation and use p. 13/20 6. Operation If a connection was set up successfully, the following window appears in your web browser: Log out Sauna 1 selection Sauna 1 Sauna 2 selection Sauna 2 System settings Setti ngs Depending on the number of control units connected, the fi gure above may differ from the display in your browser.

  • Page 14: Overview Of The Main Menu

    Instructions for installation and use p. 14/20 6.1. Overview of the main menu Example: Pro C3 Sauna / Humidity More ... Timer Info User programme 1 Back – back to sauna selection 2 All Off button (for Pro C) – switches all active functions off with one click.

  • Page 15: Operating Example

    Instructions for installation and use p. 15/20 6.2. Operating example WARNING! Risk of fi re Flammable objects that are placed on the sauna heater could ignite and cause fi res. ● NEVER place fl ammable objects on the sauna heater. ●...

  • Page 16: Setting The Preset Time

    Instructions for installation and use p. 16/20 6.3. Setting the preset time WARNING! Risk of fi re Flammable objects that are placed on the sauna heater could ignite and cause fi res. ● NEVER place fl ammable objects on the sauna heater. ●...

  • Page 17: System Settings

    Instructions for installation and use p. 17/20 6.4. System settings You can access the settings menu using the fi eld Settings (see 6. Operation on page 13). For security reasons, this menu can only be accessed using a local connection (LAN/WLAN). You can change the menu language of the web app in the fi rst step.
  • Page 18 Select file and select the update file you have saved (system.bin). The latest software can be found in the download area of our website www.sentiotec.com. Then click on Start upload to load the file onto the web server. To ensure all changes are activated, the web server must then be rebooted.

  • Page 19: Cleaning And Maintenance

    2. Wring the cleaning cloth out well. 3. Wipe down the web server housing carefully. 7.2. Maintenance The pronet web server does not require maintenance. 8. Troubleshooting ● If it is not possible to operate the sauna control unit, open the item Info (see 6.1.

  • Page 20: Disposal

    Instructions for use for the user p. 20/20 9. Disposal ● Dispose of packaging materials in accordance with the applicable disposal regulations. ● Used devices contain reusable materials, as well as hazardous substances. Do not dispose of your used device with household waste, but do so in accordance with the locally applicable regula- tions.
