AXIOMTEK eBOX670-883-FL Series Quick Installation Manual page 2

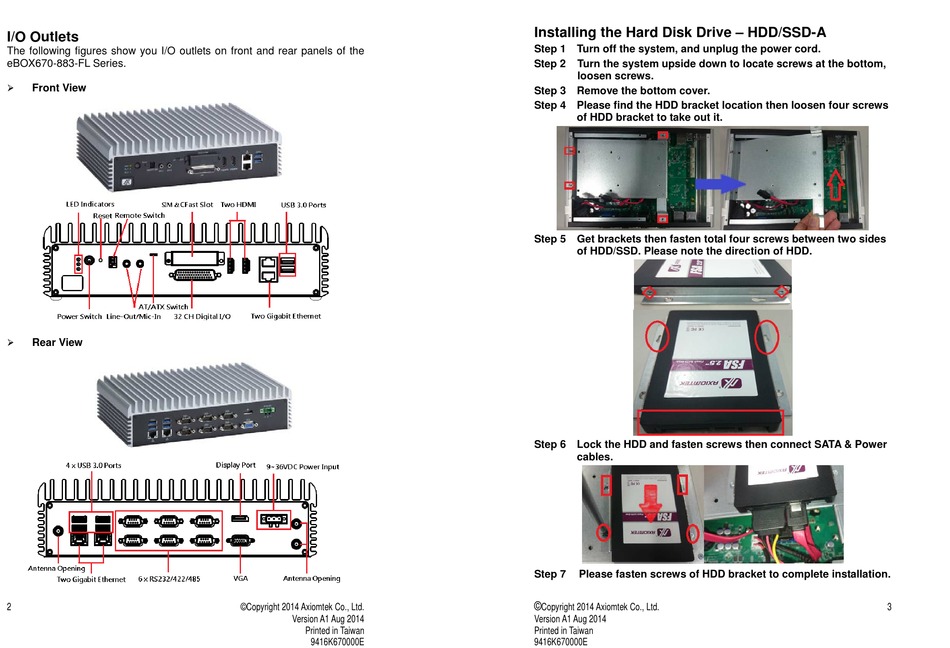

I/O Outlets
The following figures show you I/O outlets on front and rear panels of the
eBOX670-883-FL Series.
 Front View

Rear View
2 ©Copyright 2014 Axiomtek Co., Ltd.
Version A1 Aug 2014
Printed in Taiwan
9416K670000E
Installing the Hard Disk Drive – HDD/SSD-A
Step 1 Turn off the system, and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the bottom,
loosen screws.
Step 3 Remove the bottom cover.
Step 4 Please find the HDD bracket location then loosen four screws
of HDD bracket to take out it.
Step 5 Get brackets then fasten total four screws between two sides
of HDD/SSD. Please note the direction of HDD.
Step 6 Lock the HDD and fasten screws then connect SATA & Power
cables.
Step 7 Please fasten screws of HDD bracket to complete installation.
©
