Identification - Grundfos Medium UPM Series Data Booklet

Medium UPM

Identification

Type key
Example:
Type
UPM Standard
SOLAR PM For thermal solar systems
Power variant
M 100 W
L 140 W
XL 180 W
XXL 180 W
Nominal diameter
15 R 1/2" / G 1"
25 R 1" / G 1 1/2"
32 R 1 1/4" / G 2"
Nominal head
95 9.5 m
105 10.5 m
120 12.0 m
125 12.5 m
145 14.5 m
Pump housing, port-to-port length
130 Cast iron CED, 130 mm
180 Cast iron CED, 180 mm
N 180 Stainless steel, 180 mm
Control variant
AUTO Internally controlled
Externally controlled via PWM
LIN Externally controlled via LIN bus
UPM XL 25 -105 180 AUTO

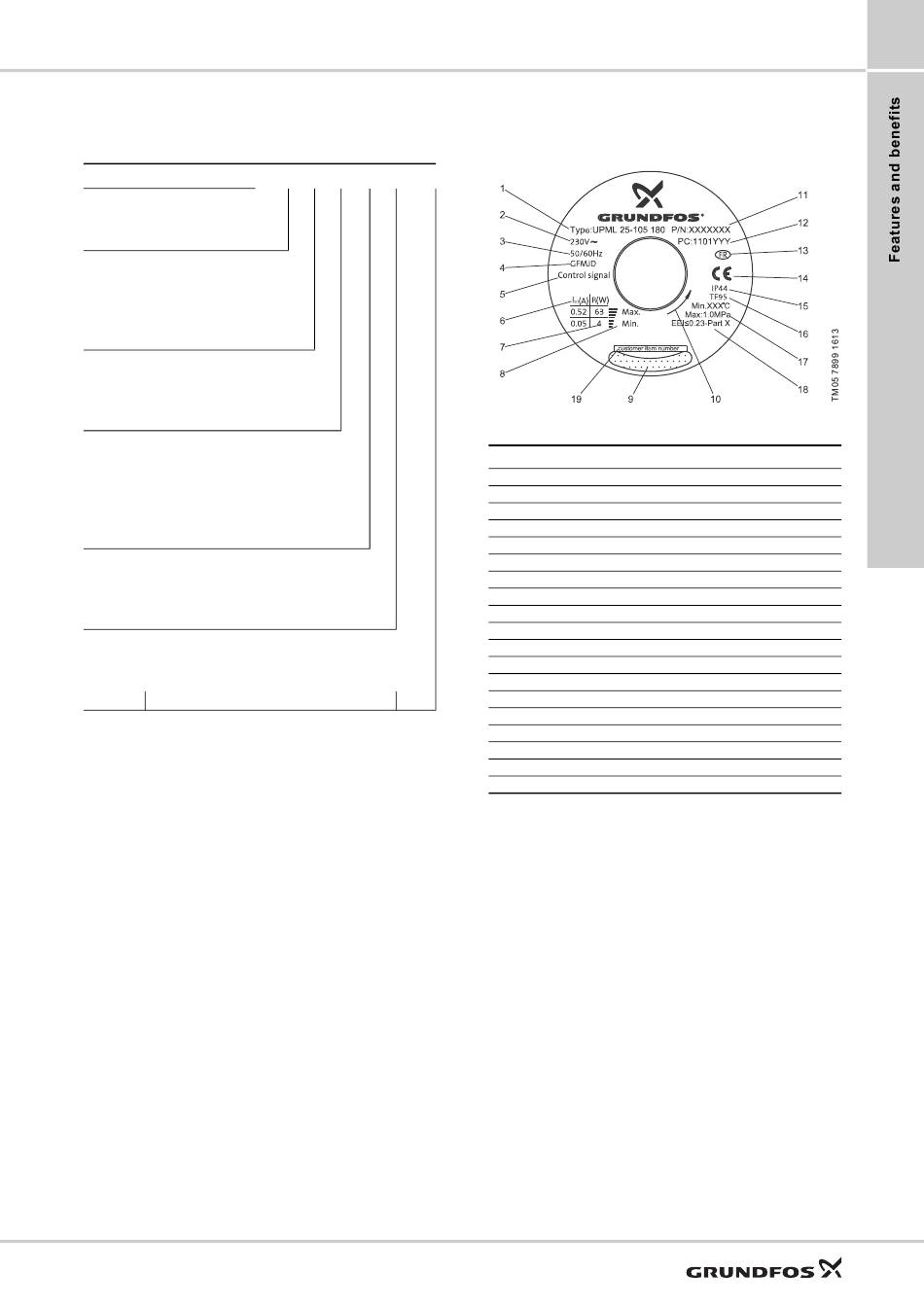

Nameplate
Fig. 2 Nameplate
Pos. Description
1 Product type
2 Voltage [V]
3 Frequency [Hz]
4 Legal product code
5 Control signal
6 Rated current [A] at maximum and minimum performance
7 Input power P [W] at maximum and minimum performance
1
8 Speed
9 Approval marks
10 Direction of rotation, direction of deblocking
11 Product number
12 Production code, year, week and customer ID
13 Country of origin
14 CE mark
15 Enclosure class
16 Temperature class
17 Maximum system pressure [MPa]
18 Energy index
19 Customer item number
2
7
