1.3 Notes

The symbols and notes below may appear in Grundfos
installation and operating instructions, safety instructions and
service instructions.
Observe these instructions for explosion-proof
products.
A blue or grey circle with a white graphical symbol
indicates that an action must be taken.
A red or grey circle with a diagonal bar, possibly with
a black graphical symbol, indicates that an action
must not be taken or must be stopped.
If these instructions are not observed, it may result in
malfunction or damage to the equipment.
Tips and advice that make the work easier.

2. Receiving the product

2.1 Inspecting the product

Check that the product received is in accordance with the order.
Check that the voltage and frequency of the product match
voltage and frequency of the installation site. See section
6.4.1
Nameplate.

2.2 Scope of delivery

The box contains the following items:
ALPHA1 pump
ALPHA plug
insulating shells
two gaskets
quick guide.

3. Installing the product

3.1 Mechanical installation

3.1.1 Mounting the product

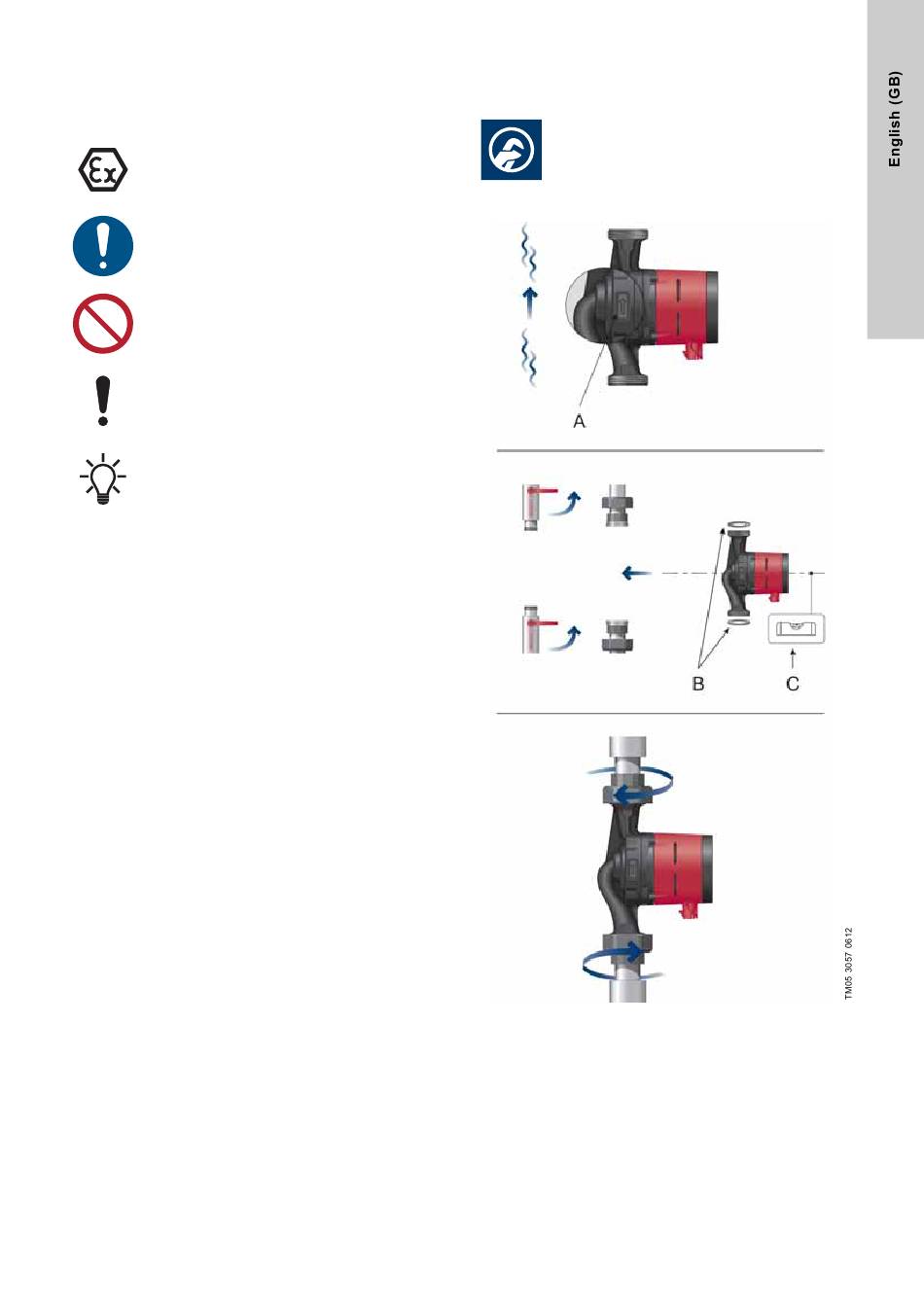

Fig. 1
Mounting the product
The arrows on the pump housing indicate the flow direction
through the pump. See fig. 1, pos. A.
1. Fit the two gaskets when you mount the pump in the pipe. See
fig. 1, pos. B.
2. Install the pump with a horizontal motor shaft. See fig. 1, pos.
C. See also section
3.2 Control box
3. Tighten the fittings.
positions.
5
