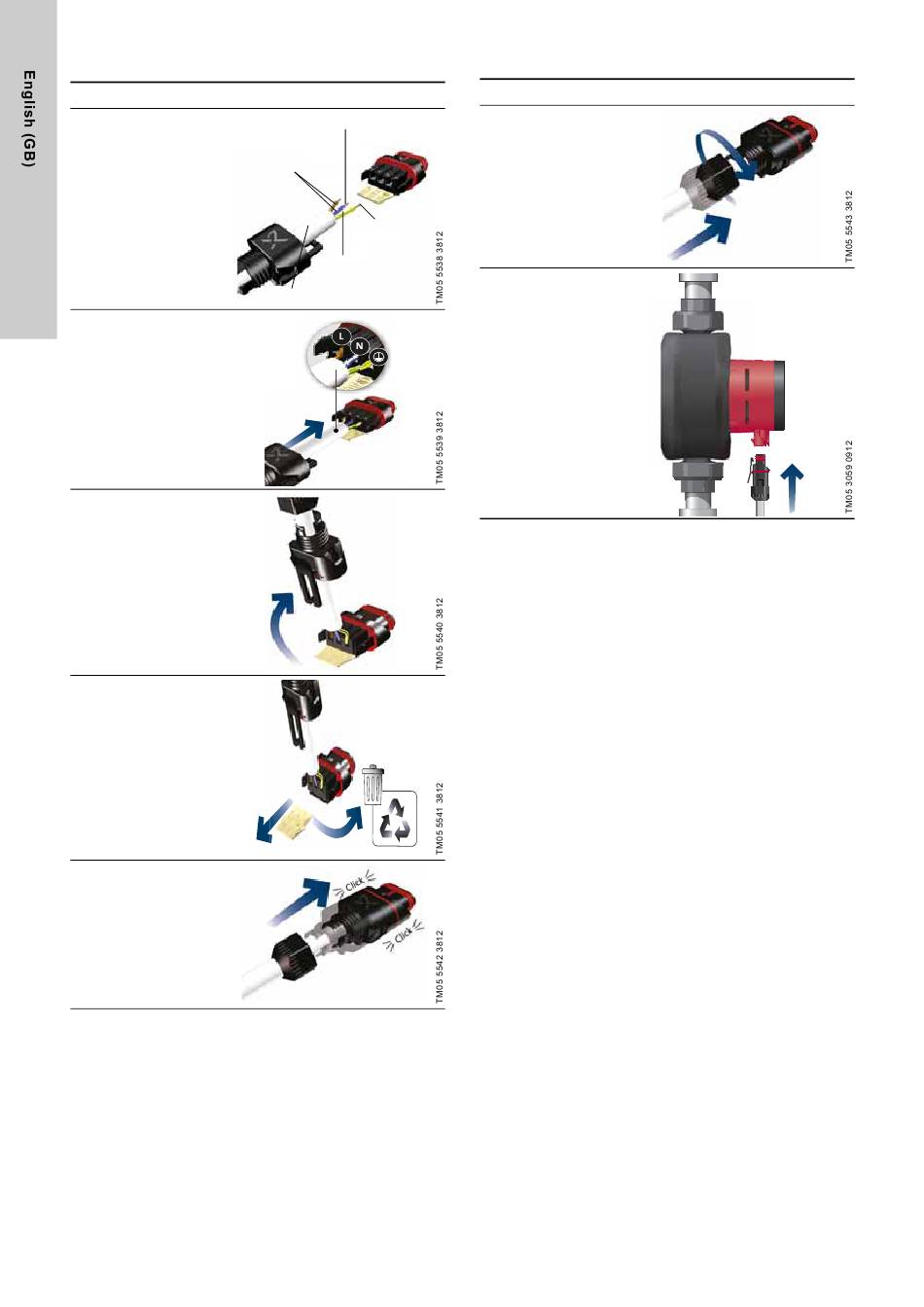

4.1 Assembling the plug
Step
Action
Fit the cable gland
and plug cover to
1
the cable. Strip the
cable conductors
as illustrated.
Connect the cable
2
conductors to the
power supply plug.
Bend the cable
with the cable
3
conductors
pointing upwards.
Pull out the
conductor guide
4
plate and throw it
away.
Click the plug
5
cover onto the
power supply plug.
8
Illustration
2
0.5 - 1.5 mm
12 mm
7 mm
17 mm
∅5.5 - 10 mm
Step
Action
Screw the cable
6
gland onto the
power supply plug.
Insert the power
supply plug into
7
the male plug in
the pump control
box.
Illustration
