Macnaught M Series Instruction Manual page 8

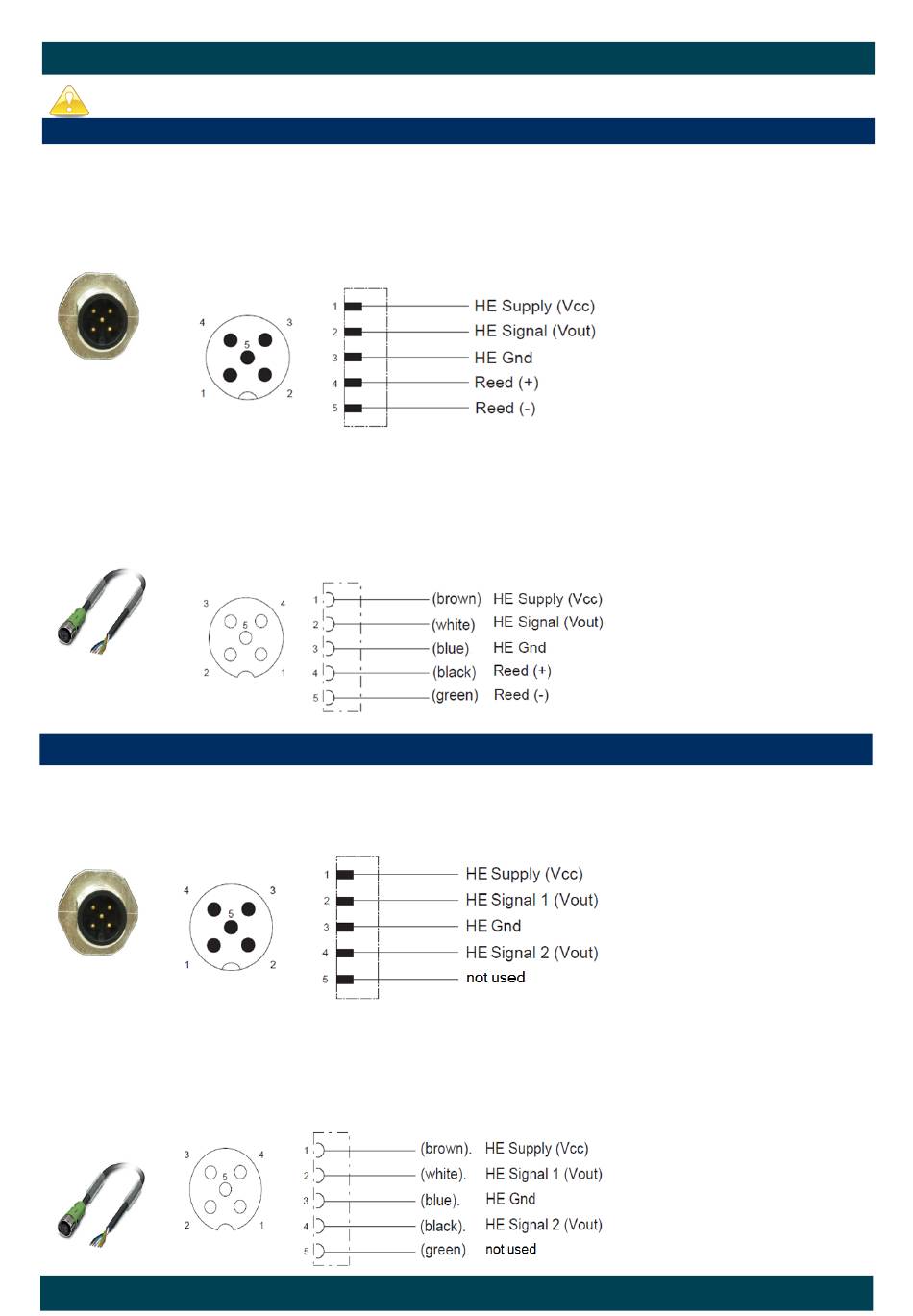

Pulser Wiring Instructions - Models M,F, CR and S - If fitted with DIN connector
Note: The below wiring instructions are only valid for flowmeters fitted with DIN connector
Wiring instructions
Pin designation M12 male connector
Schematic diagram
Contact designation M12 cable
Schematic diagram
Wiring instructions
Pin designation M12 male connector
Schematic diagram
Contact designation M12 cable
Schematic diagram
Reed / Hall Module
Dual Hall Module
Page 8 of 20
