050 Mech
07.11

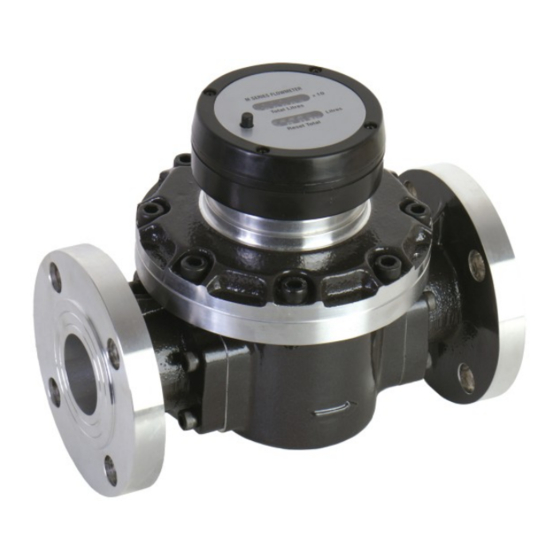

OVAL GEAR FLOWMETER
MECHANICAL MODEL 050 (2")
To the Owner
PLEASE READ THIS SAFTEY INFORMATION
CAREFULLY BEFORE USE.
Read and retain this instruction manual to assist you
in the operation and maintenance of this product.
If you have any problems with the meter, refer to the
maintenance and trouble shooting sections of this
manual.
This manual contains connection and operating
instructions for meters with Mechanical Displays
If you need further assistance, contact your local
representative or distributor for advice.
INSTRUCTION MANUAL
This Flow Meter has incorporated the oval rotor
principal into its design. This has proven to be a
reliable and highly accurate method of measuring
flow.
Exceptional repeatability and high accuracy over a
wide range of fluid viscosities and flow rates are
features of the oval rotor design. With a low pressure
drop and high pressure rating oval rotor flow meters
are suitable for both gravity and pump (in line)
applications.
Page 1 of 14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Macnaught 050
Summary of Contents for Macnaught 050
- Page 1 050 Mech 07.11 OVAL GEAR FLOWMETER MECHANICAL MODEL 050 (2”) INSTRUCTION MANUAL To the Owner PLEASE READ THIS SAFTEY INFORMATION This Flow Meter has incorporated the oval rotor CAREFULLY BEFORE USE. principal into its design. This has proven to be a...
-
Page 2: Installation Procedure
Important Information Installation Procedure WARNING Before use, confirm the fluid to be used is compatible with the meter. Refer to Industry fluid compatibility charts or consult your local representative for advice. To prevent damage from dirt or foreign matter it is recommended that a Y or Basket type 60 mesh strainer be installed as close as possible to the inlet side of the meter. - Page 3 Maintenance Procedures Disassembly - Flow Meter Ensure that the fluid supply to the meter is disconnected, and the line pressure is released before disassembly. Refer to the exploded parts diagram and parts list, for item numbers. 1) Remove the four screws located on the face of the register.
-
Page 4: Product Specifications
Product Specifications Flowmeter Mech Metric Below 5 cP 15 to 500 L/min 4 to 130 G/min Flow Range ‘F’ and ‘M’ Meters 5 to 1000 cP 15 to 500 L/min 4 to 130 G/min Below 5 cP 30 to 300 L/min 8 to 80 G/min ‘S’... - Page 5 Exploded Diagram Parts Identification Item No. Part Description Meter Body Meter Cap 0-Ring Rotor Set Adaptor Bolts Flanged Process Connection Adaptor O-Rings Threaded Process Connection Meter Cap Gear Set Meter Cap Screws Cover Plate O-Ring Cover Plate and Gear Set Cover Plate Screws Page 5 of 14...
-
Page 6: Spare Parts Kits
Spare Parts Kits There are 4 Spare Kit options available for the purchase of replacement components: Output Gear Kit (GKit) - Replacement Drive Gear Set to Mechanical Register. Flange Kit (FSKit) - O-Ring set for Flanges Rotor Kit (RKit) - Complete Rotor assembly ... - Page 7 Seal Kit - (SKit) — Customer Model Number Coding Sequence SKit — Type Size — 3/4/5 = M Order Number Components Items Kit Components Cover Plate O-Ring SKit – F050 – M Meter Body O-Ring Rotor Kit - (RKit) — Customer Model Number Coding Sequence Rotor...
- Page 8 Wetted Parts Component Type 'F' Type 'S' Type 'M' Meter Body Rotor Shaft Rotors - Standard - High Temp. - High Viscosity. Rotor Bushes Meter Cap SS/POM SS/POM SS/POM Gear Assembly Cover Plate SS/FFKM/POM SS/FFKM/POM SS/FFKM/POM Output Gear and Shaft assy. O Rings K - FEP/PTFE Encapsulated Br - Brass...
- Page 9 Pressure Drop v’s Viscosity 100% 100% Page 9 of 14...
-
Page 10: Meter Dimensions
Meter Dimensions Page 10 of 14... - Page 11 Air Eliminator / Strainer Combination 2” Flange 2” Threaded Connection Page 11 of 14...
- Page 12 Notes Page 12 of 14...
-
Page 13: Warranty
The foregoing Warranty supersedes, voids and is in lieu of all or any other warranties. This Warranty does not form part of, nor does it constitute, a contract between Macnaught and the end-user or purchaser. It is additional to any warranty given by the seller of the products. This Warranty does not exclude, limit, restrict or modify the... - Page 14 Page 14 of 14...
