Macnaught M1 SERIES Instruction Manual

MS16
0709
0006
POSITIVE DISPLACEMENT
TO THE OWNER
Please take a few minutes to read through this
manual before installing and operating your
meter.
Always retain this manual for future reference.
If you have any problems with the meter, refer
to the maintenance and trouble shooting
sections of this manual.
This manual contains connection and operating
instructions for the meters. If you
assistance, contact your local representative or
distributor for advice.

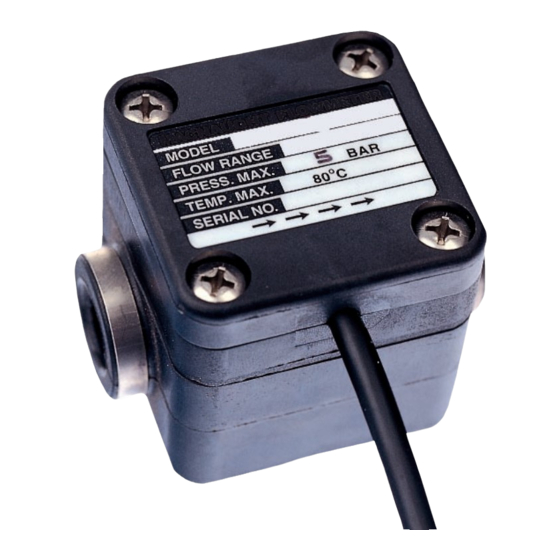

This Flowmeter has incorporated the oval rotor
principal into its design.
This has proven to be a reliable and highly accurate
method of measuring flow.
Exceptional repeatability
over a wide range of fluid viscosities and flow
rates are features of the oval rotor design. With low
pressure drop and high pressure rating means
oval rotor flow meters are suitable for both gravity
and pump (in-line) applications.
Flowmeters are manufactured in either PPS
(Polyphenylene Sulfide Resins) , Aluminium & 316
Stainless Steel.
Standard rotors are made from 316 Stainless Steel
with optional PPS rotors with Hastalloy C Shafts
available.
OPERATION
PLEASE READ THIS INFORMATION
CAREFULLY BEFORE USE!
Before use, confirm the fluid to be used is com-
patible with the meter. Refer to Industry fluid
compatibility charts
representative for advice.
FLOWMETERS
M1 SERIES INSTRUCTION MANUAL
need further
and high accuracy
or consult your local
To prevent damage from dirt or foreign matter it
is recommended that a Y or basket type 200
mesh strainer be installed as close as possible
to the inlet side of the meter. Contact
local representative for advice.
Note:
To prevent damage to the meter slowly fill the
system with fluid (this will prevent damage
caused by air purge).
Failure to do this could damage the meter.
To reduce pressure build up turn off the pump at
the end of each day .
your
