POSITIVE DISPLACEMENT
M50 SERIES INSTRUCTION MANUAL
M50 Mechanical meter; From serial No.CXXXX
TO THE OWNER
Please take a few minutes to read through this
manual before installing and operating your
meter.
Always retain this manual for future reference.
If you have any problems with the meter, refer
to the maintenance and trouble shooting sections
of this manual.
This manual contains connection and operating
instructions for meters with mechanical displays.
If you need further assistance, contact your local
representative or distributor for advice.
FLOWMETERS

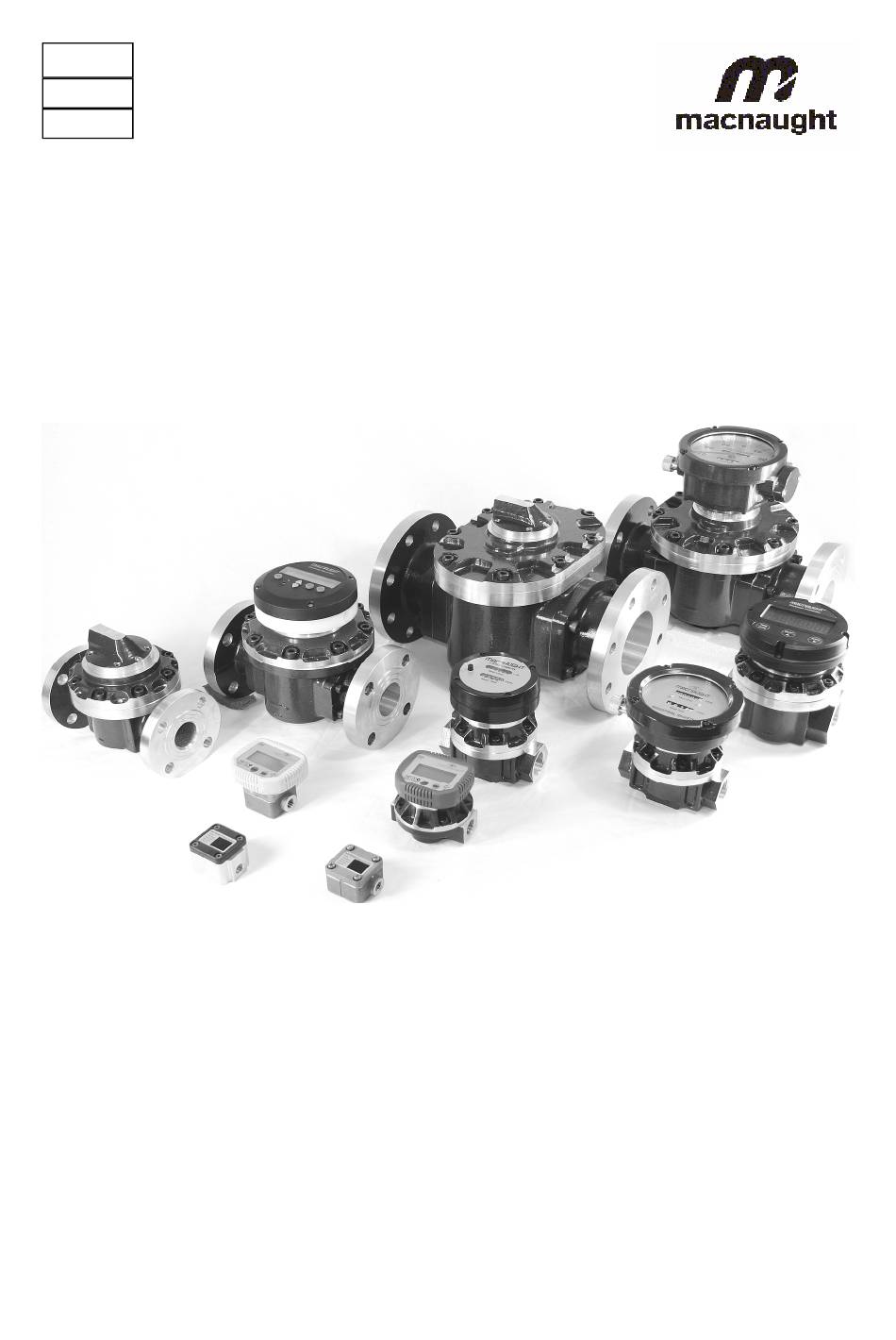

This Flow Meter has incorporated the oval rotor
principal into its design. This has proven to be a reliable
and highly accurate method of measuring flow.
Exceptional repeatability and high accuracy over a
wide range of fluid viscosities and flow rates are
features of the oval rotor design. The low pressure
drop and high pressure rating means oval rotor flow
meters are suitable for both gravity and pump (in line)
applications.
Flow meters are available in either Aluminium or
316 Stainless Steel. Standard rotors are made from
PPS (Polyphenylene
Sulfide
316
Stainless
Steel
Stainless steel and Aluminium models.
Mechanical displays have a re-settable batch totaliser
and non-re- settable accumulative totaliser.
Resins)
with optional
rotors available
for
both
