Summary of Contents for Macnaught ADTUM

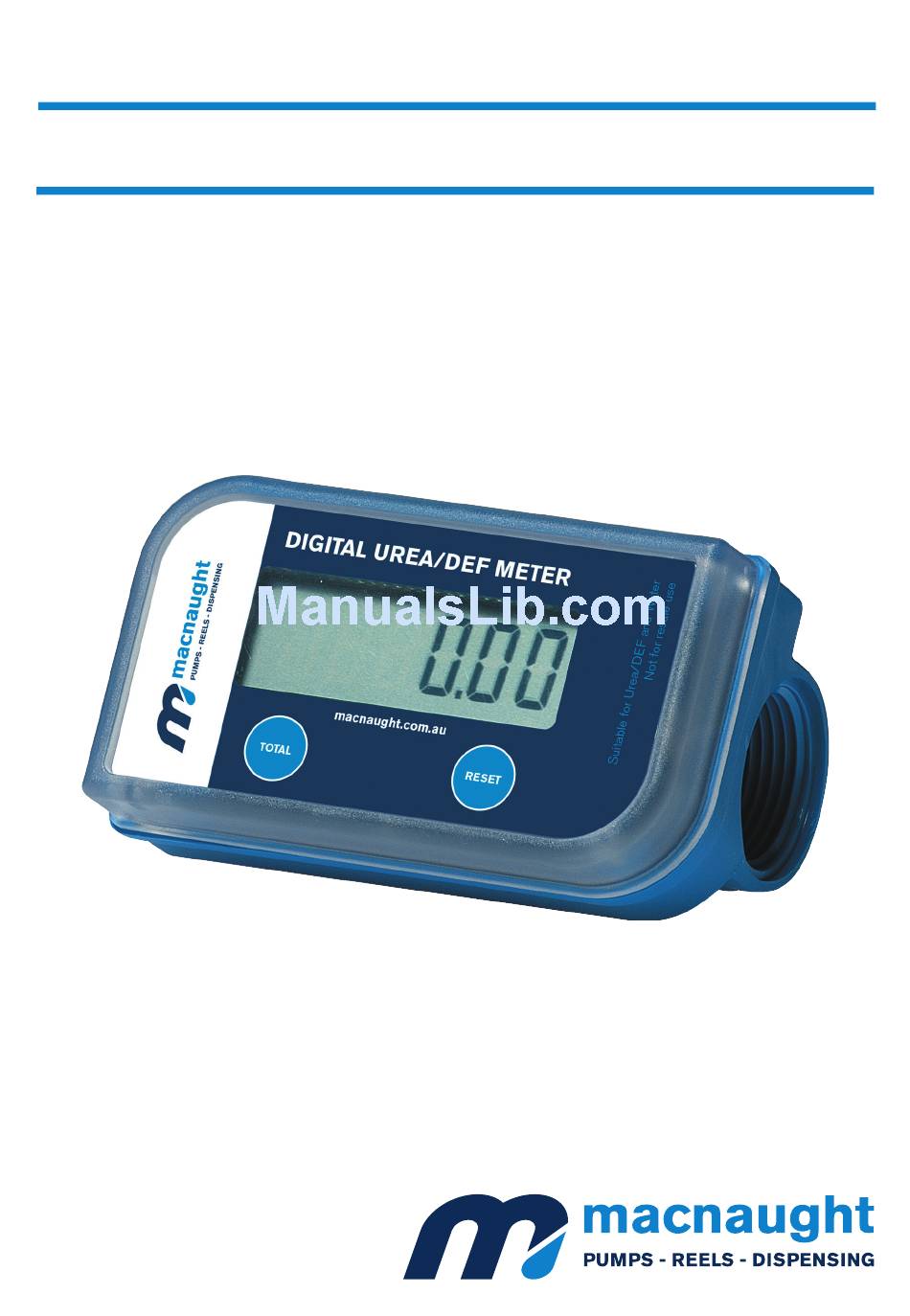

- Page 1 ADTUM-im -issue1-2015 INSTRUCTION MANUAL DIGITAL UREA/DEF METER ADTUM...
-
Page 2: Operation
The low pressure drop through the meter makes the meter ideally suited for use in gravity applications TOTAL BUTTON or with the Macnaught range of electric Urea (DEF) RESET BUTTON pumps. FEATURES Macnaught manufacture a full range of pumps,... - Page 3 3) Reposition the meter body (Take care not to damage 5) Display will return to Batch total after 10 seconds the wires) 4) Carefully re-fit the 4 screws to the meter assembly Note: For custom unit or measure please contact Macnaught for details. macnaught.com.au...
-
Page 4: Maintenance
4. Carefully fit and tighten the 4 x screws This meter has been designed for minimum maintenance. If you have a problem with this unit please contact you local Macnaught service centre or distributor. TEST LCD Press both the ‘Total’ and ‘Reset’ buttons together for 2 seconds. -
Page 5: Troubleshooting Guide
INSTRUCTION MANUAL DIGITAL UREA/DEF METER ADTUM TROUBLE SHOOTING GUIDE Problem Cause Solution Meter not reading 1) Blockage in the fluid chamber 1) Clear blockage from fluid chamber 2) Meter installed incorrectly 2) Check the meter orientation (flow must be in direction of the arrow) -
Page 6: Meter Dimensions
INSTRUCTION MANUAL DIGITAL UREA/DEF METER ADTUM METER DIMENSIONS macnaught | instruction manual... - Page 7 INSTRUCTION MANUAL DIGITAL UREA/DEF METER ADTUM NOTES: macnaught.com.au...
- Page 8 Macnaught Pty Ltd Ph: 1800 185 102 Fax: 1800 186 402 For Warranty Terms and Conditions see www.macnaught.com.au 41-49 Henderson Street E-mail: info@macnaught.com.au For a list of Australian Service Centres see www.macnaught.com.au Turrella NSW 2205...
